Power Window Master Switch: Continuity

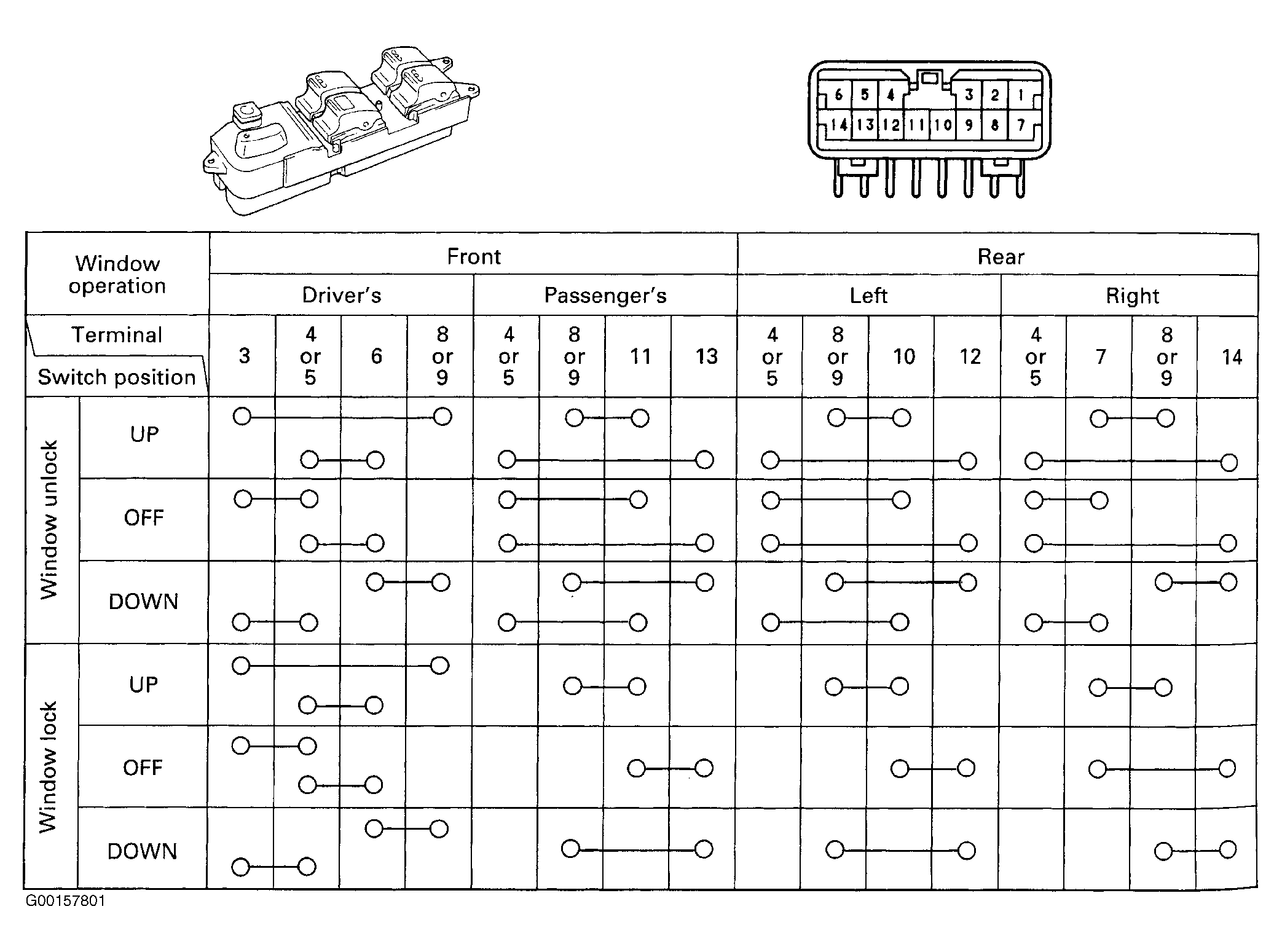

Remove power window master switch. Check continuity between appropriate terminals of power window master switch with switch in specified position. See Fig 1. If continuity is not as specified, replace the power window master switch.
