1990 Lexus ES 250 AutomaticFACTORY OEM SERVICE PROCEDURE
Fuel Cut System

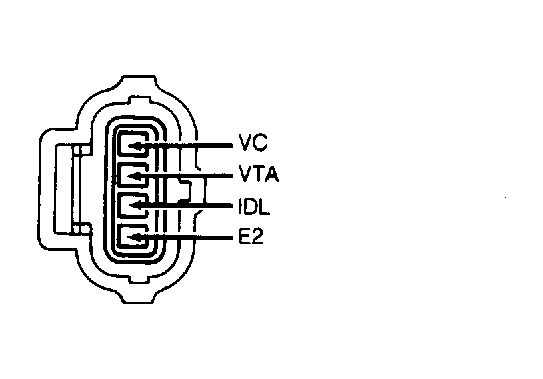

- Start and warm engine to operating temperature. Ensure A/C is off. Connect a tachometer to engine. Disconnect Throttle Position Sensor (TPS) connector. Using a jumper wire, connect terminals IDL and E2 of harness connector. See Fig 1.
- Gradually raise engine speed. Observe tachometer as engine RPM is raised. RPM will fluctuate between fuel cut and fuel return points. See FUEL CUT RPM SPECIFICATIONS table.FUEL CUT RPM SPECIFICATIONS
Application RPM Fuel Cut 1800 Fuel Return 1200 - If fuel cut system does not function properly, ensure a clearance of .028" (.71 mm) is present between screw and lever on TPS. Ensure wiring harness is okay between TPS connector and ECU connector.
