1990 Lexus ES 250 AutomaticFACTORY OEM SERVICE PROCEDURE
Cold Start System: Notes

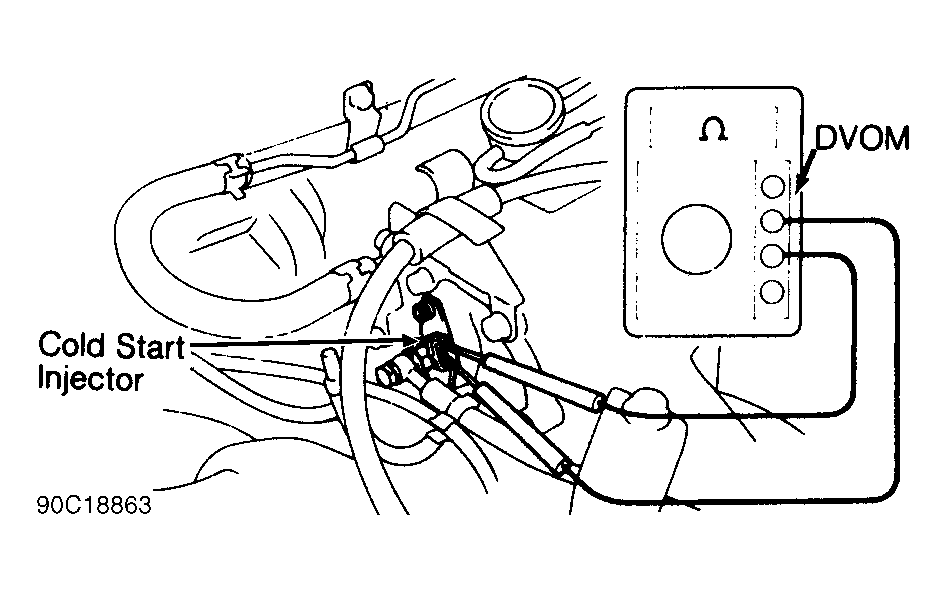

- Turn ignition off. Disconnect cold start injector electrical connector. See Fig 1. Using a DVOM, measure resistance between cold start injector terminals. Resistance should be 2-4 ohms. If resistance is not as specified, replace cold start injector.
- Disconnect negative battery cable. Remove cold start injector from engine. Place cold start injector into a container to catch fuel spray. Turn ignition on. DO NOT start engine.
- Using a jumper wire, connect terminals FP and +B of check connector. See Fig 2. Connect battery voltage to cold start injector terminals.CAUTION: Apply battery voltage to cold start injector and observe fuel spray as quickly as possible.
