1	Face and feet distribution motor
2	LH temperature blend motor
3	Recirculation motor
4	Windshield distribution motor
5	RH temperature blend motor
6	A/C compressor solenoid valve
7	Sunlight sensor
8	Pollution sensor
9	Refrigerant pressure sensor
10	In-vehicle temperature sensor (all except Japan) or in-vehicle temperature and humidity sensor (Japan only)
11	Ambient air temperature sensor
12	Evaporator temperature sensor
13	ATC module
14	ECM
15	ECT sensor
16	Instrument cluster
17	Blower control module
18	BJB (battery junction box)
19	CJB
20	Blower
21	Integrated control Panel

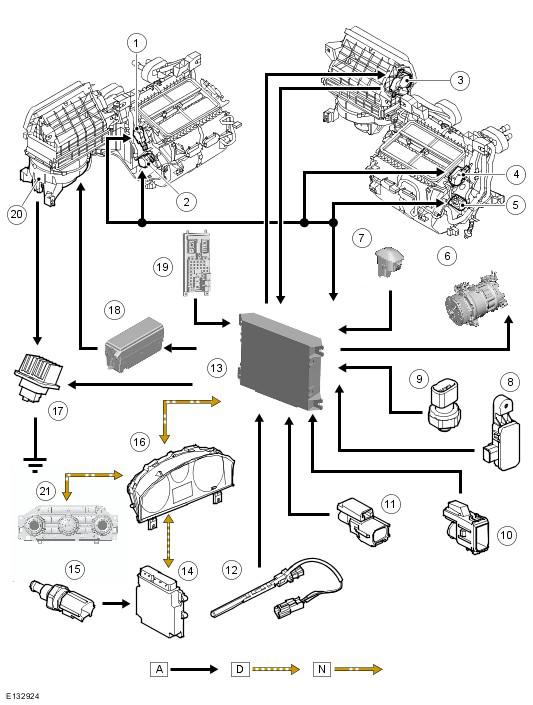

NOTE: A = Hardwired connections; D = High speed controller area network (CAN) bus; N = Medium speed controller area network (CAN) bus
