2012 Land Rover LR2 (LF) L6-3.2LFACTORY OEM SERVICE PROCEDURE

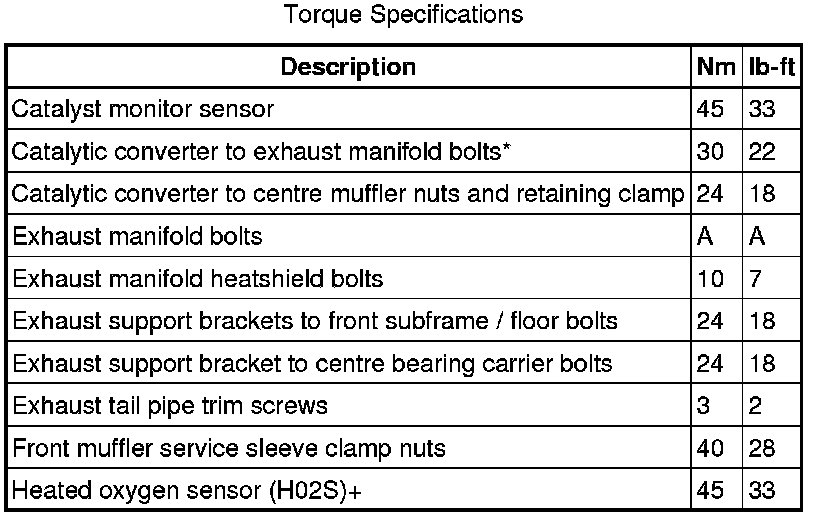

System Specifications
Specifications

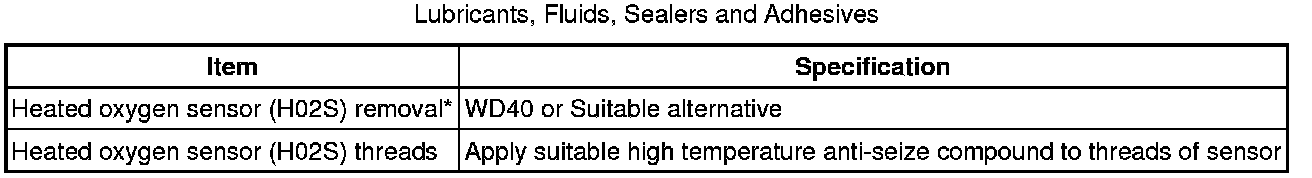

* Apply to area around sensor threads prior to attempting to remove sensor
* It is not appropriate to either fit or remove these fixings using air tools due to a risk of cold welding/snapping.
+ Apply anti-seize lubricant to threads of sensor - See Lubricants
A = refer to procedure for correct torque sequence
