2011 Land Rover LR4 BaseFACTORY OEM SERVICE PROCEDURE

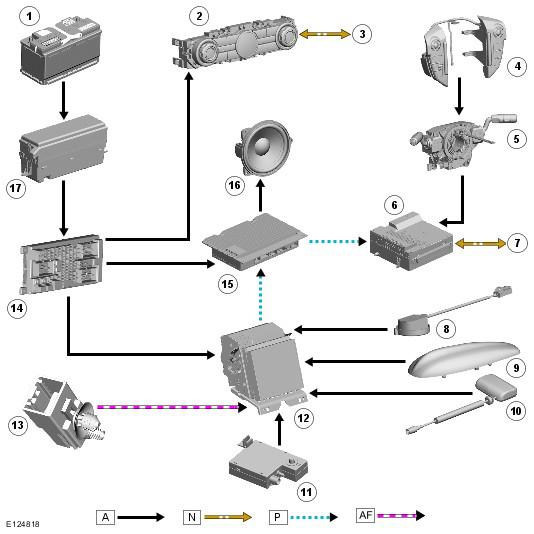

Control Diagram
WARNING: This page is about a different car, the 2012 Land Rover Range Rover Sport and 2011 Land Rover Range Rover Sport. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
A
= Hardwired; N
= Medium Speed CAN; P
= MOST; AF
= Firewire.
| Item Number | Description |
|---|---|
| 1 | Battery |
| 2 | Integrated control panel, incorporating navigation switch |
| 3 | Medium speed CAN bus connection to other vehicle systems |
| 4 | Steering wheel switches |
| 5 | Clockspring |
| 6 | IHU (integrated head unit) |
| 7 | Medium speed CAN bus connection to other vehicle systems |
| 8 | Microphone - voice recognition |
| 9 | Roof pod incorporating GPS (global positioning system) antenna |
| 10 | VICS beacon antenna - Japan only |
| 11 | 'TMC (traffic message channel tuner' or 'VICS receiver - Japan only' |
| 12 | TSD (touch screen display) |
| 13 | Navigation update socket |
| 14 | CJB (central junction box) |
| 15 | Power amplifier |
| 16 | Speakers |
| 17 | EJB (engine junction box) |
