2000 Land Rover DiscoveryFACTORY OEM SERVICE PROCEDURE

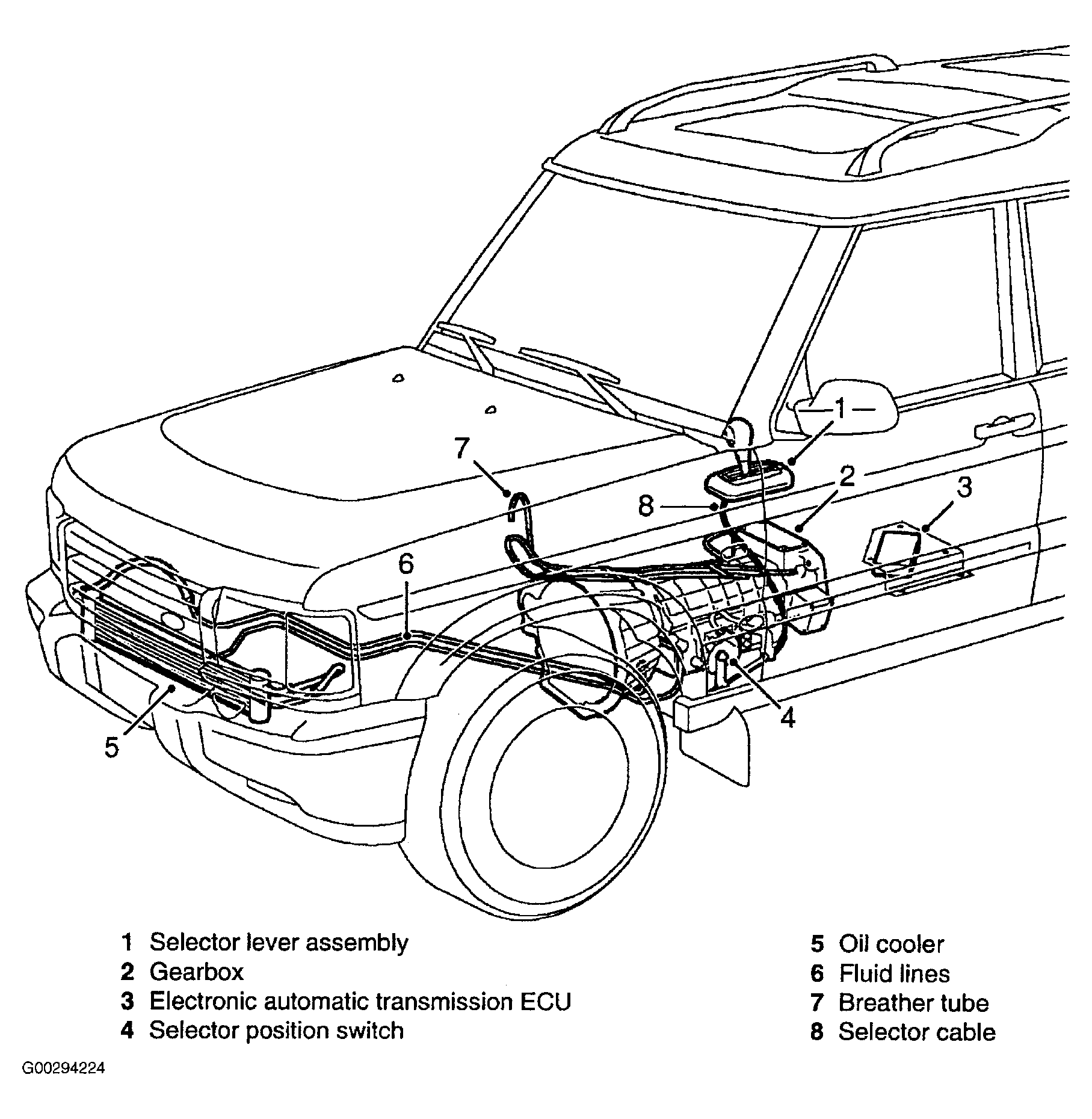

Component Locations
COMPONENT LOCATIONS
| Component | (1) Location | ||
|---|---|---|---|
| Automatic Transmission Electronic Control Unit | Under Left Front Seat | ||
| Body Control Unit | Under Right Side Of Dash, Behind Glove Box | ||
| Engine Control Module (ECM) | Under Right Side Of Dash, Above Passenger Side Right Kick Panel | ||
| Gear Position Switch | On Left Side Of Transmission | ||
| Throttle Position Sensor | On Throttle Body | ||
|
|||
