Thermostat Monitoring: Description

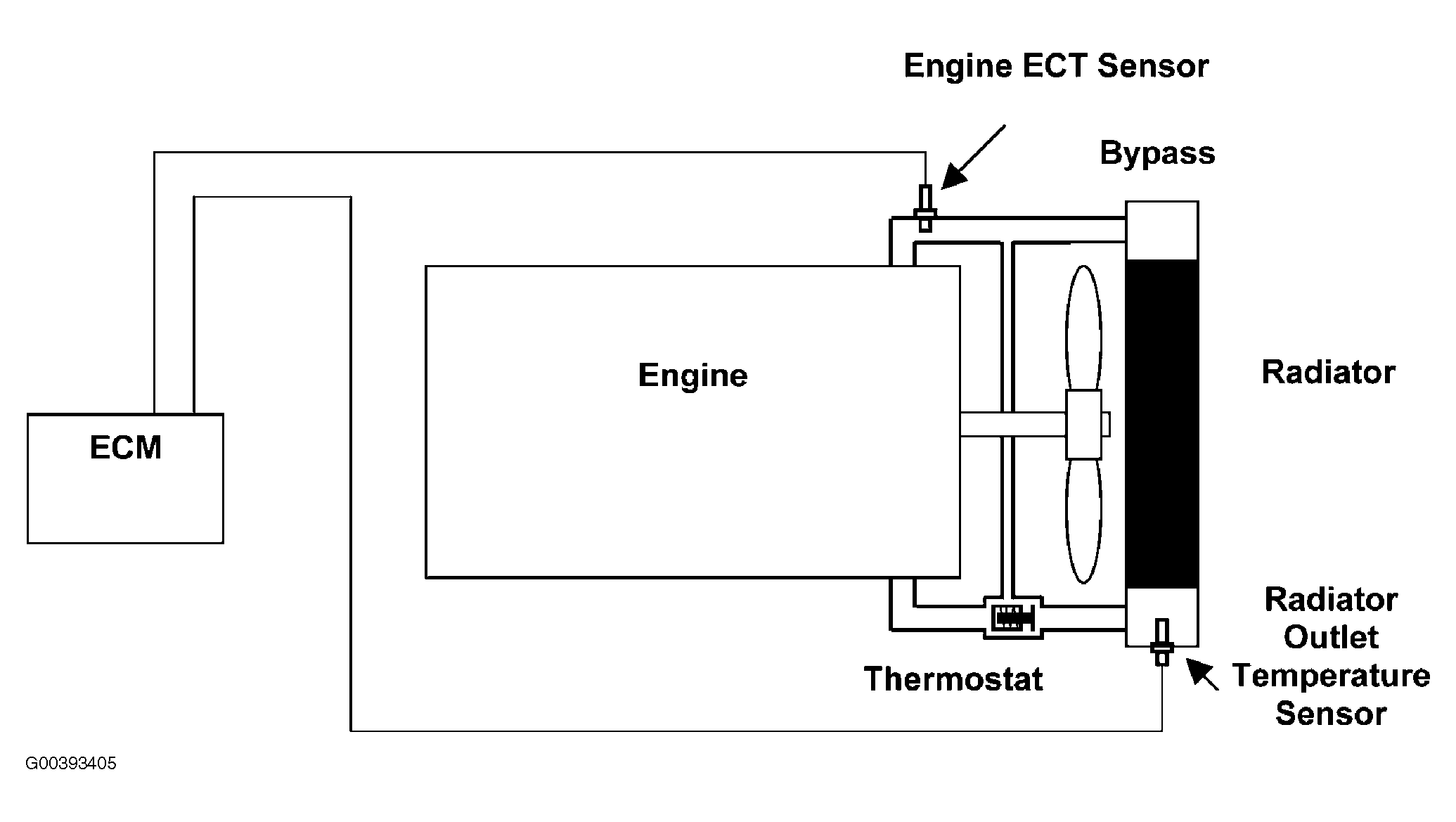

The diagnostic checks for a partially open thermostat, under conditions when the thermostat would be expected to be shut. See Fig 1 .
A second ECT sensor is installed in the outlet from the radiator. If the enablement criteria are met and the ECT is less than the normal thermostat opening temperature the diagnostic will run. See Fig 2 .
The diagnostic compares the difference between ECT and the radiator outlet temperature. This gives the temperature drop across the radiator. See Fig 3 and Fig 4 .
If the temperature drop is less than a threshold, and there is flow across the radiator, this is caused by leakage through the thermostat.
