ECM Connector Identification

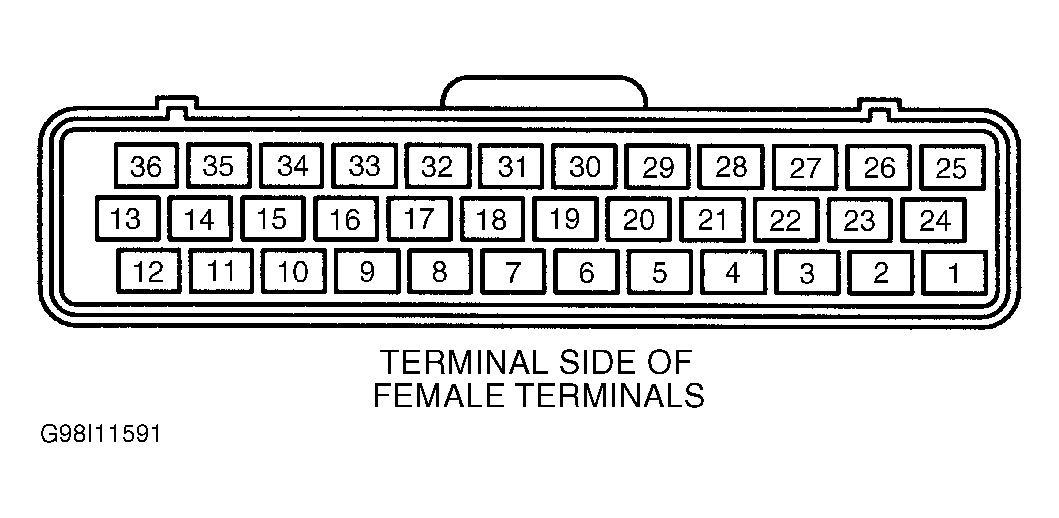

On Defender 90 and Discovery, ECM is located in the right rear corner of the engine compartment. Each vehicle has 3 ECM connectors. A Black 36-pin connector, a Red 36-pin connector and a Black 18-pin connector. See Fig 1 and Fig 2 . See ECM CONNECTOR IDENTIFICATION table.
| Connector Description | (1) Identification Number | |||
|---|---|---|---|---|
| Defender | ||||
| Black 36-Pin | C634 | |||
| Black 18-Pin | C635 | |||
| Red 36-Pin | C636 | |||
| Discovery | ||||
| Black 36-Pin | C1032 | |||
| Black 18-Pin | C1033 | |||
| Red 36-Pin | C1017 | |||
|
||||
