Wheel Alignment Repair Procedures
- When using the wheel alignment tester to check the wheel alignment, align the lift's vehicles horizontally.
- Set the transmission gear to 'N'.
- Inflate the 4 tires to the specified tire pressure.TIRE PRESSURE SPECIFICATIONS
Item Size Specification Front Rear Tire Pressure 205/60 R16 230 kPa (33 psi) 230 kPa (33 psi) 215/55 R17 240 kPa (35 psi) 230 kPa (33 psi) 235/45 R18 230 kPa (33 psi) 230 kPa (33 psi) - Straighten the steering wheel.
- Hold the brake pedal depressed using a pedal stopper.

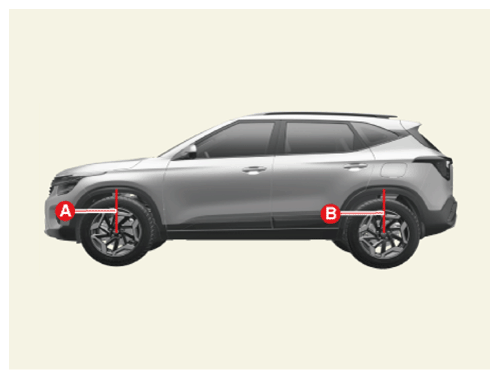

- Measure the ride height, which is the distance from the end of the fender to the center of the wheel.
Ride height
Front (A):
2WD: 405 ± 10 mm (15.94 ± 0.40 in.)
4WD: 412 ± 10 mm (16.20 ± 0.40 in.)
Rear (B):
411 ± 10 mm (16.18 ± 0.40 in.)
- Adjust the alignment.
(Refer to Adjustment )
NOTE: It is not recommended to adjust the rear alignment of the coupled torsion beam axle using an adjustment shim or washer. Vehicle performance may be poor. - Shake the vehicle up and down after alignment adjustment.NOTE: If the figure changes significantly, check the suspension for cracks, tears, wear, and damage to the bushing.
- After adjustment, perform the Steering Angle Sensor (SAS) Calibration using KDS.
(Refer to Steering System - "STEERING ANGLE SENSOR (SAS) CALIBRATION ")
