2025 Kia Seltos X-LineFACTORY OEM SERVICE PROCEDURE
Removal And Installation: Removal
- Disconnect the battery negative (-) terminal.
- Remove the engine cover.
(Refer to Engine Mechanical System - " ENGINE COVER ")

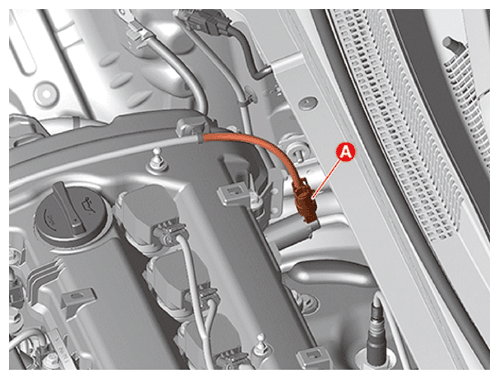

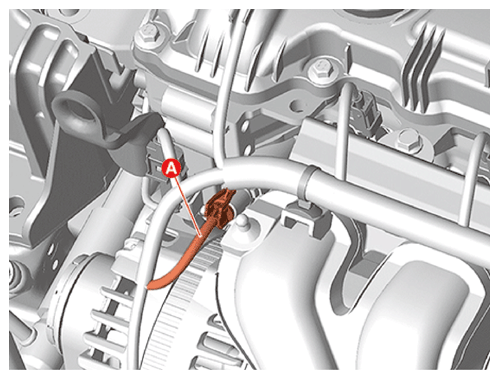

- Disconnect the Oil Control Valve (OCV) connector (A).
[Intake]
[Exhaust]

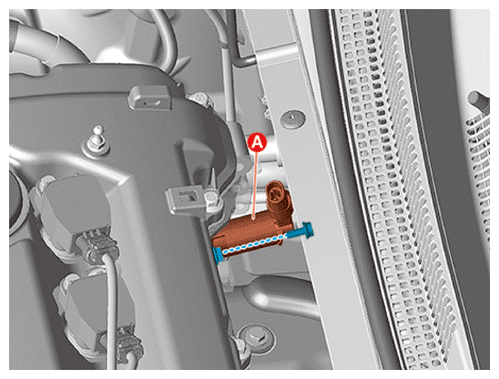

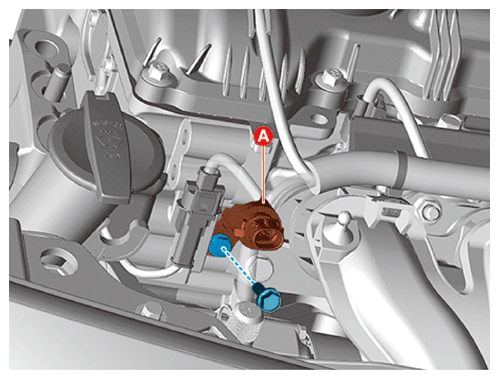

- Remove the OCV (A) after removing the bolt.
Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)
[Intake]
[Exhaust]
