2025 Kia Seltos X-LineFACTORY OEM SERVICE PROCEDURE
On Vehicle Inspection
- Disconnect the battery negative (-) terminal.
- Remove the engine cover.
(Refer to Engine Mechanical System - " ENGINE COVER ")

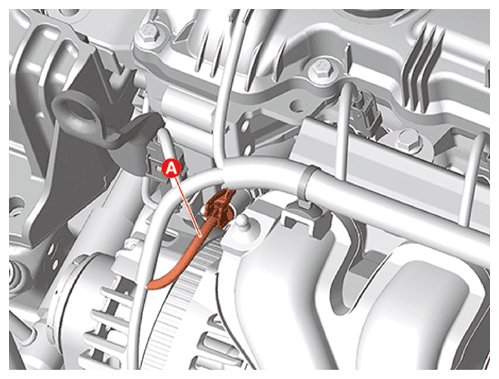

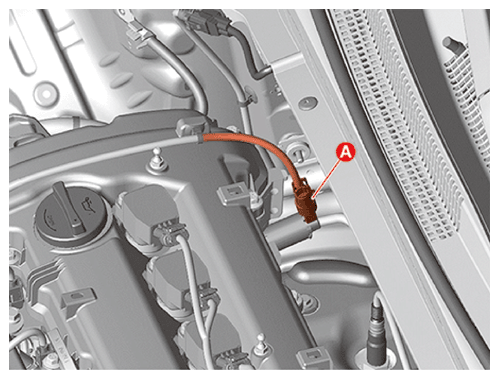

- Measure the resistance between terminals after disconnecting the Oil Control Valve (OCV) connector (A).
Intake
Exhaust
- Check that the resistance is within the specification.
Item Specification Coil resistance (MΩ) Minimum 1 [@500 VAC, 20°C (68°F)]
