Removal And Installation: Removal
- Disconnect the battery negative (-) terminal.
- Remove the battery.
(Refer to Engine Electrical System - " BATTERY REMOVAL & INSTALLATION ")

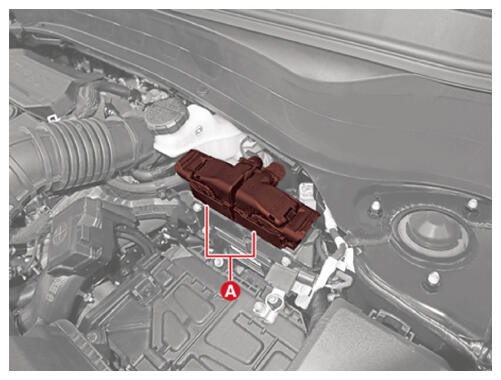

- Disconnect the Engine Control Module (ECM) connectors (A).

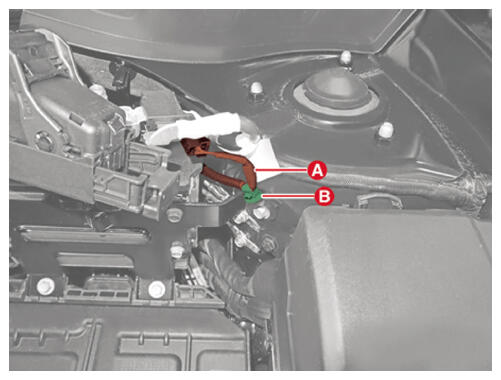

- Separate the battery sensor wiring (A) by removing the wiring fixing clip (B).

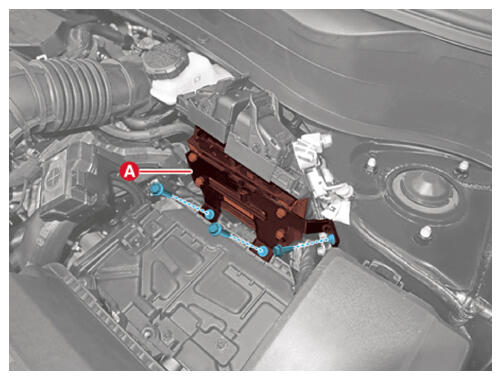

- Remove the ECM (A) after removing the bolts.
Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

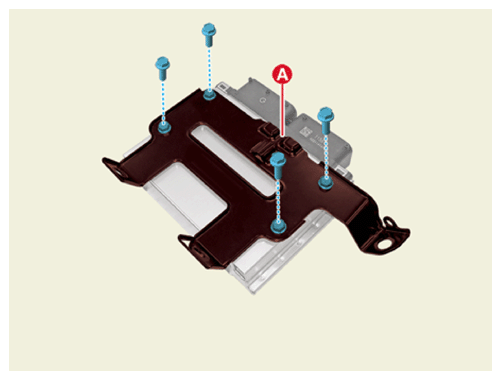

- Remove the bracket (A) after removing the bolts.
Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)
