2024 Kia Telluride LX, FWDFACTORY OEM SERVICE PROCEDURE

Shift Cable: Installation: Installation

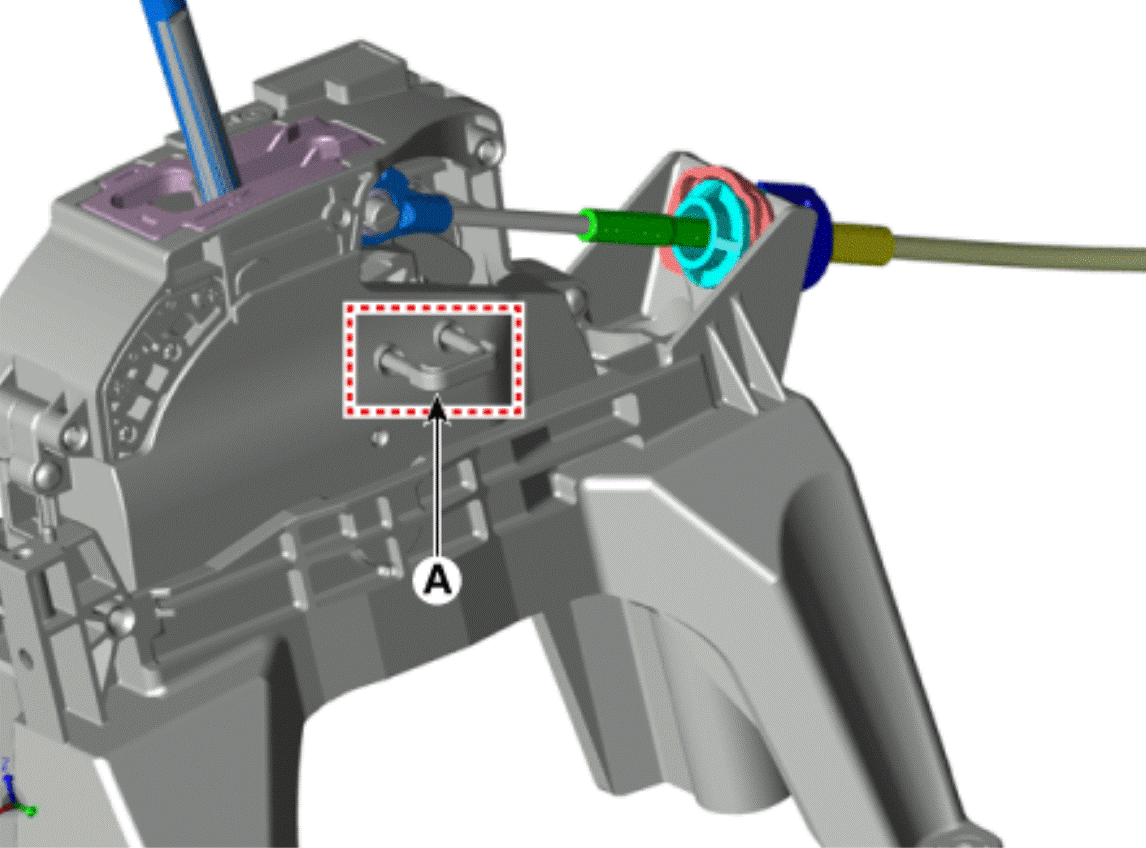

  1. Before installation, insert "N range fixing pin" (A) of shift lever after checking the shift lever and manual control lever are on "N" range.
    G15693618Courtesy of KIA MOTORS AMERICA, INC.

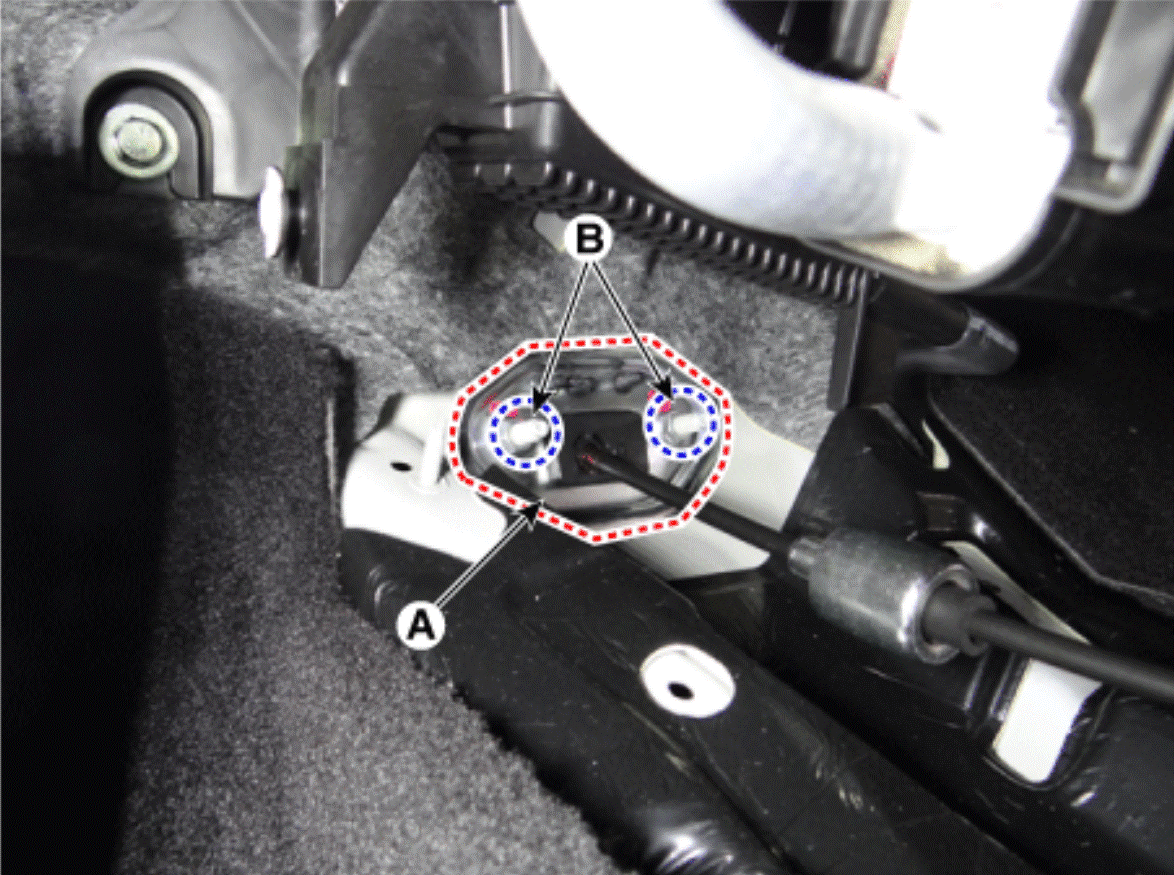

  2. Install the shift cable retainer (A) by tightening nuts (B).

    Tightening torque:

    9.8 - 14.7 N.m (1.0 - 1.5 kgf.m, 7.2 - 10.8 lb.ft)

    G15693619Courtesy of KIA MOTORS AMERICA, INC.

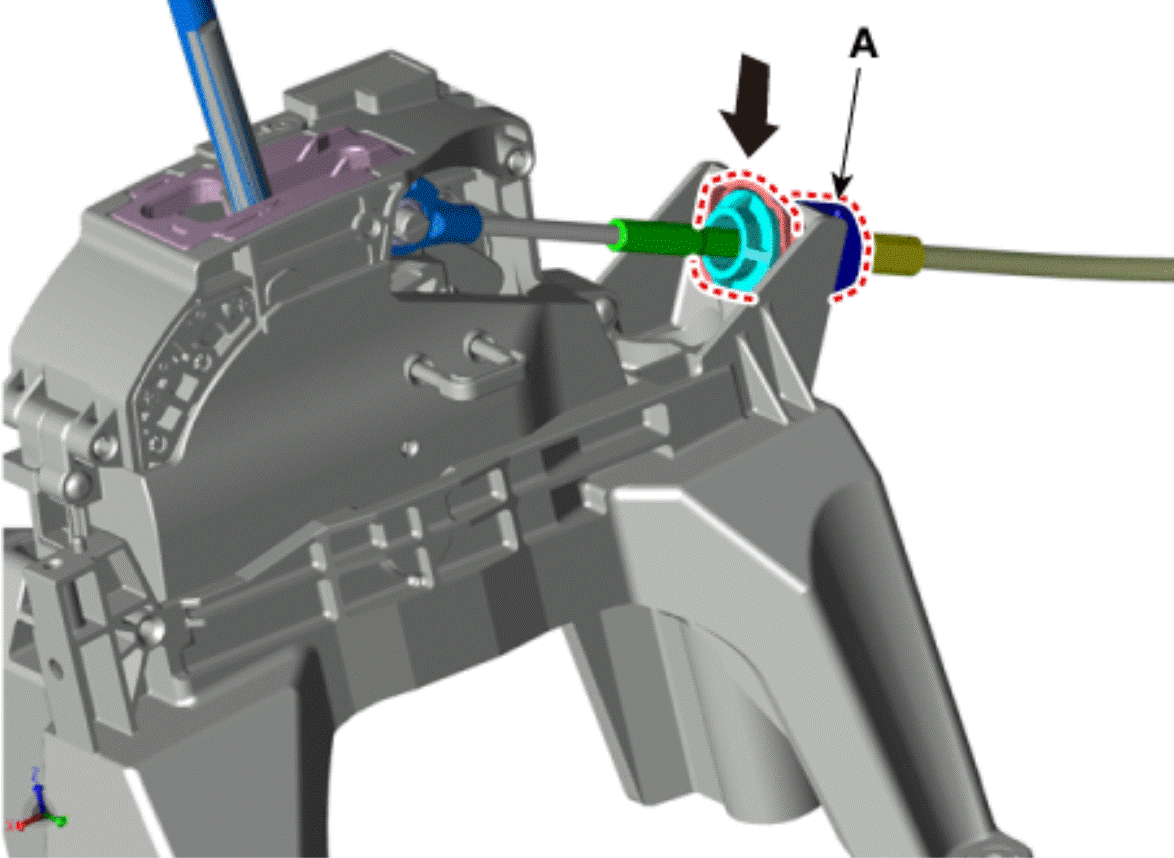

  3. Install the cable socket (A).
    G15693620Courtesy of KIA MOTORS AMERICA, INC.

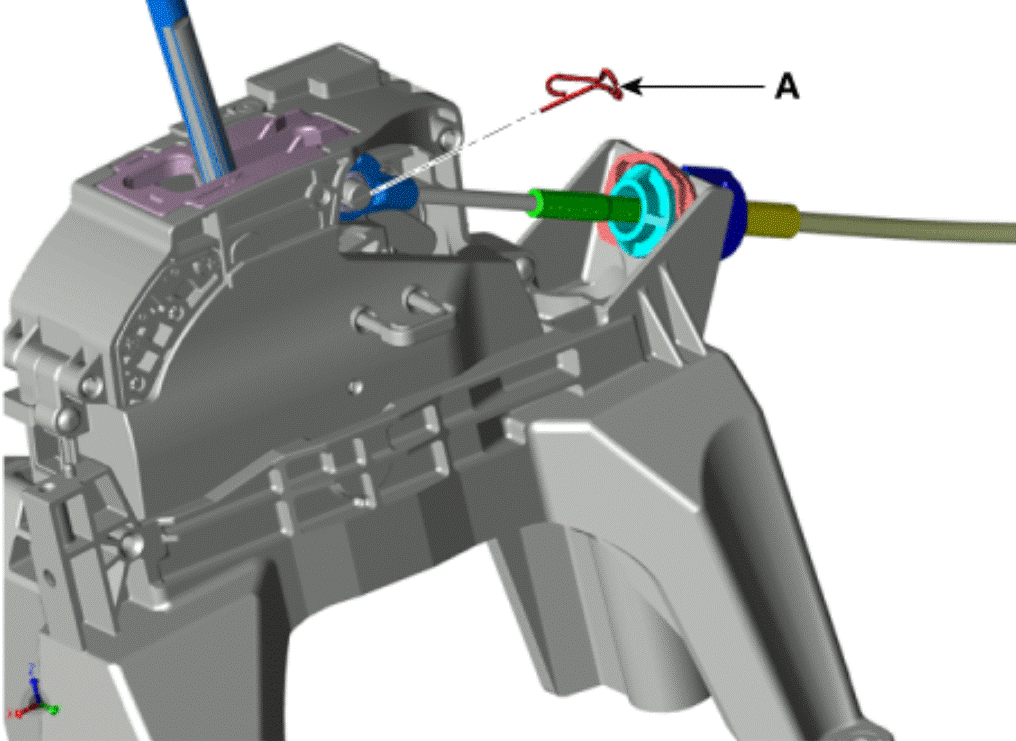

  4. Install the shift cable to the lever pin and then insert the snap pin (A).
    G15693621Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:

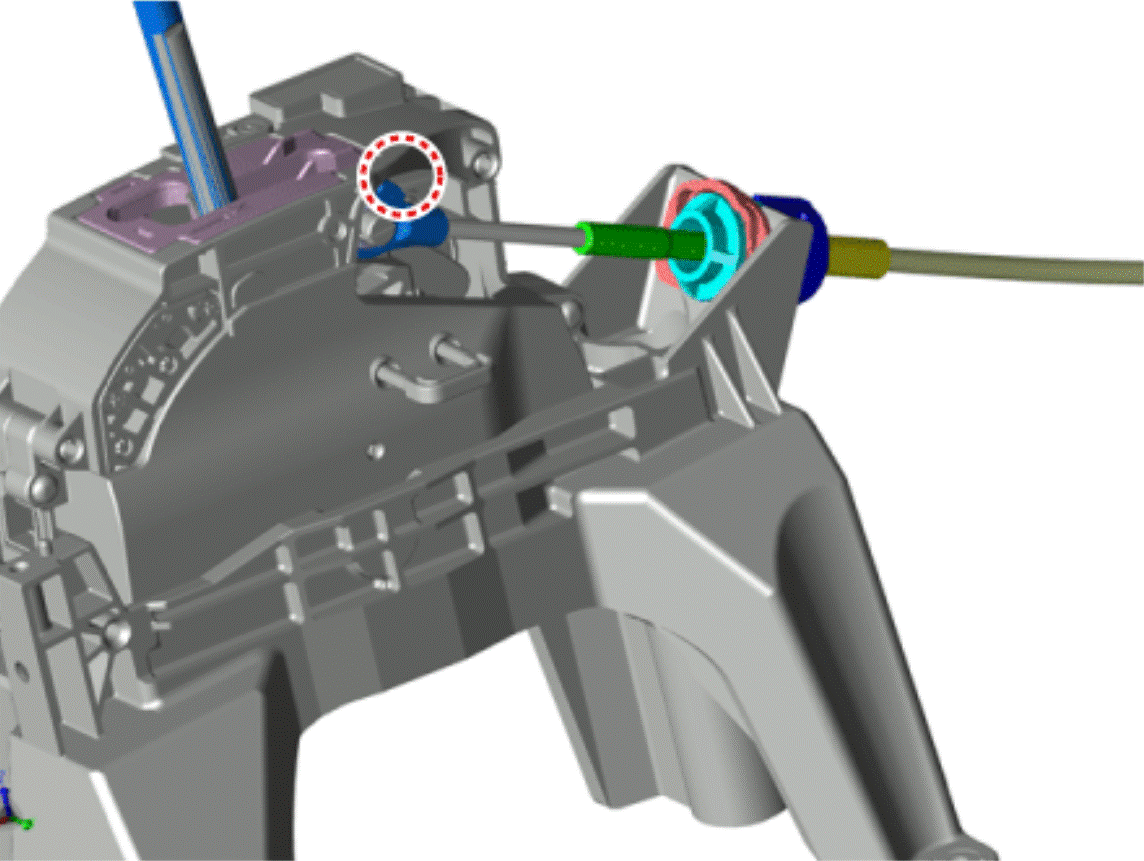

    • Install the shift cable after checking the direction of projection to prevent incorrect assembly.
      G15693622Courtesy of KIA MOTORS AMERICA, INC.

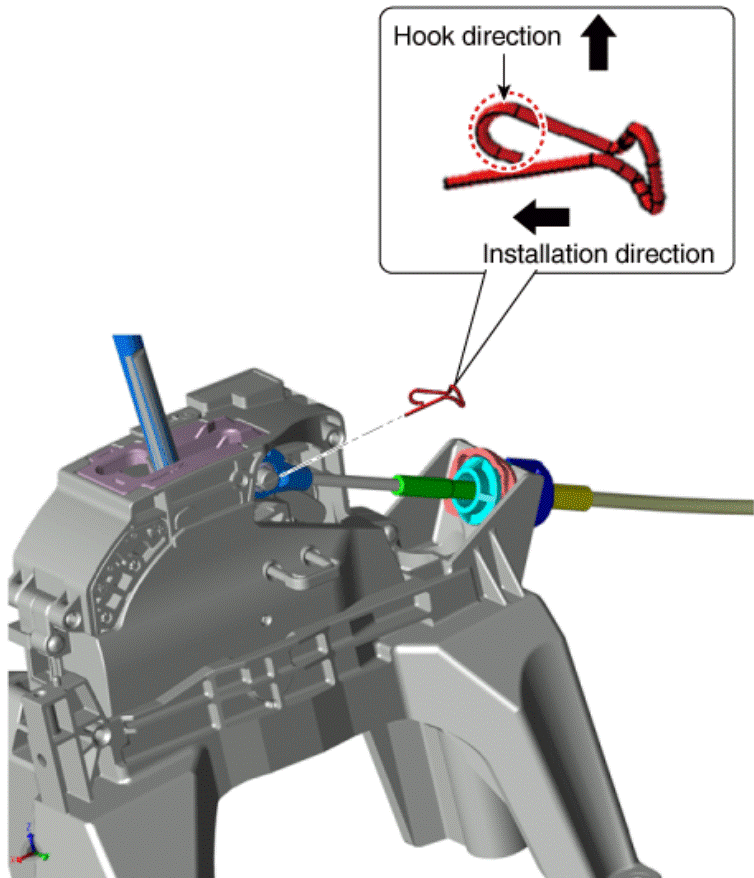

    • Mind the installation direction of snap pin and install the snap pin with the hook facing upward.
    G15693623Courtesy of KIA MOTORS AMERICA, INC.

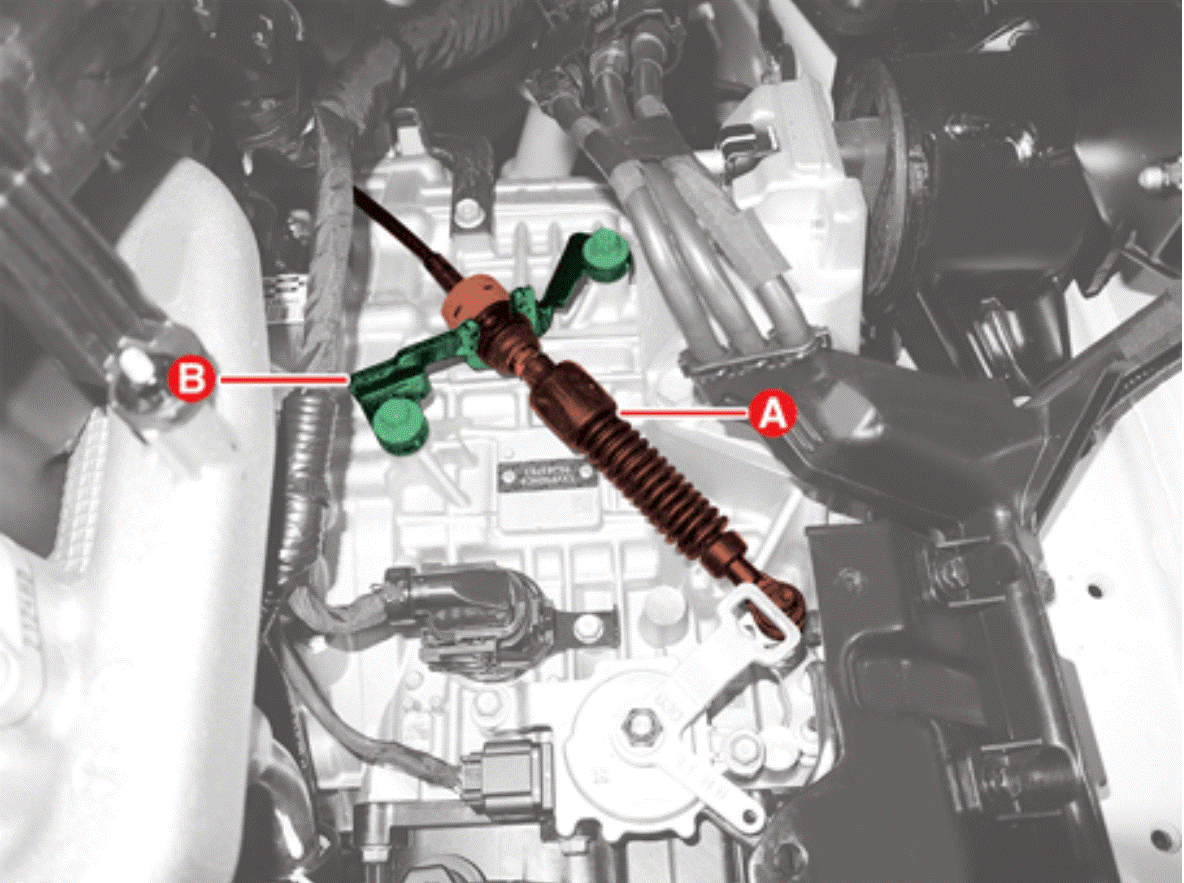

  5. Install the shift cable (A) to the bracket (B).
    G15693624Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: The existing shift cable clip must be replaced with new one (do not reuse).

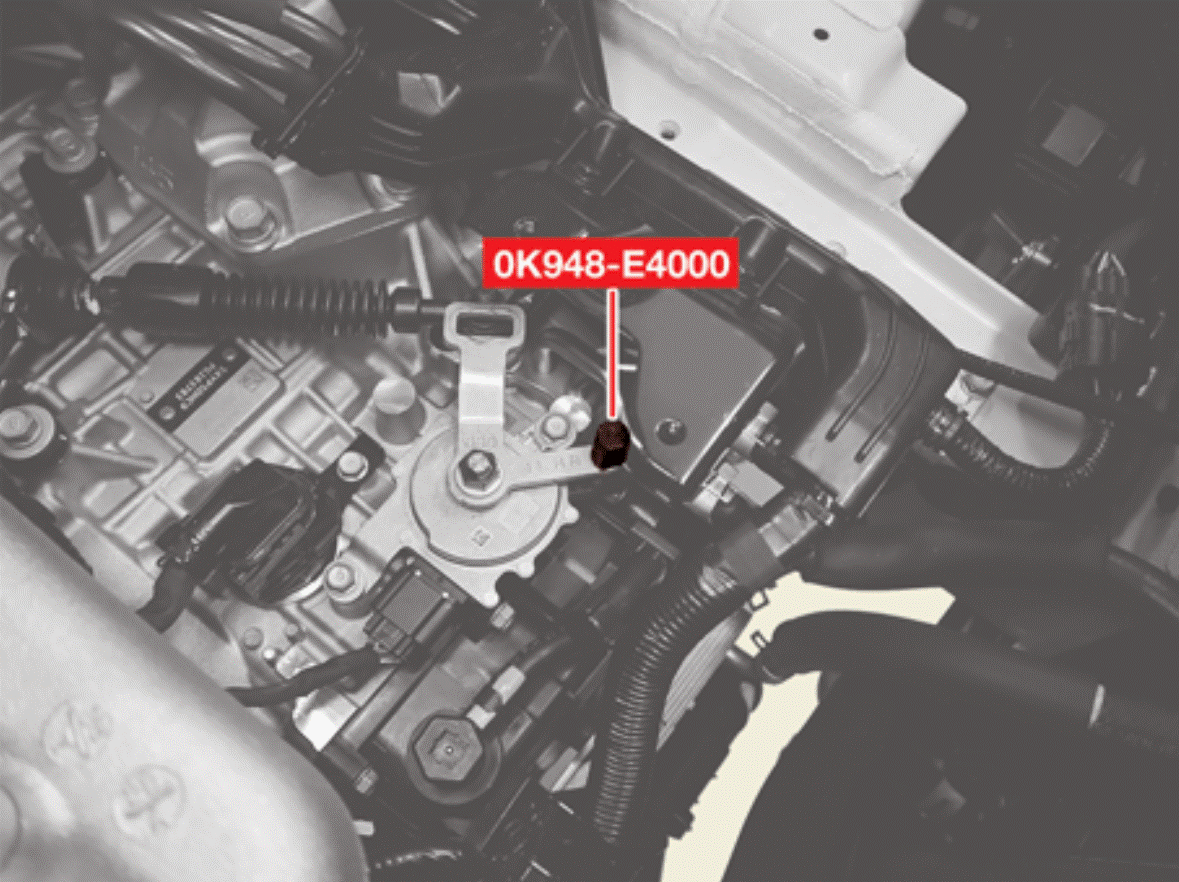

  6. Align the hole in the manual control lever with the N position hole of the position switch and then insert the SST (0K948 - E4000).
    G15693625Courtesy of KIA MOTORS AMERICA, INC.

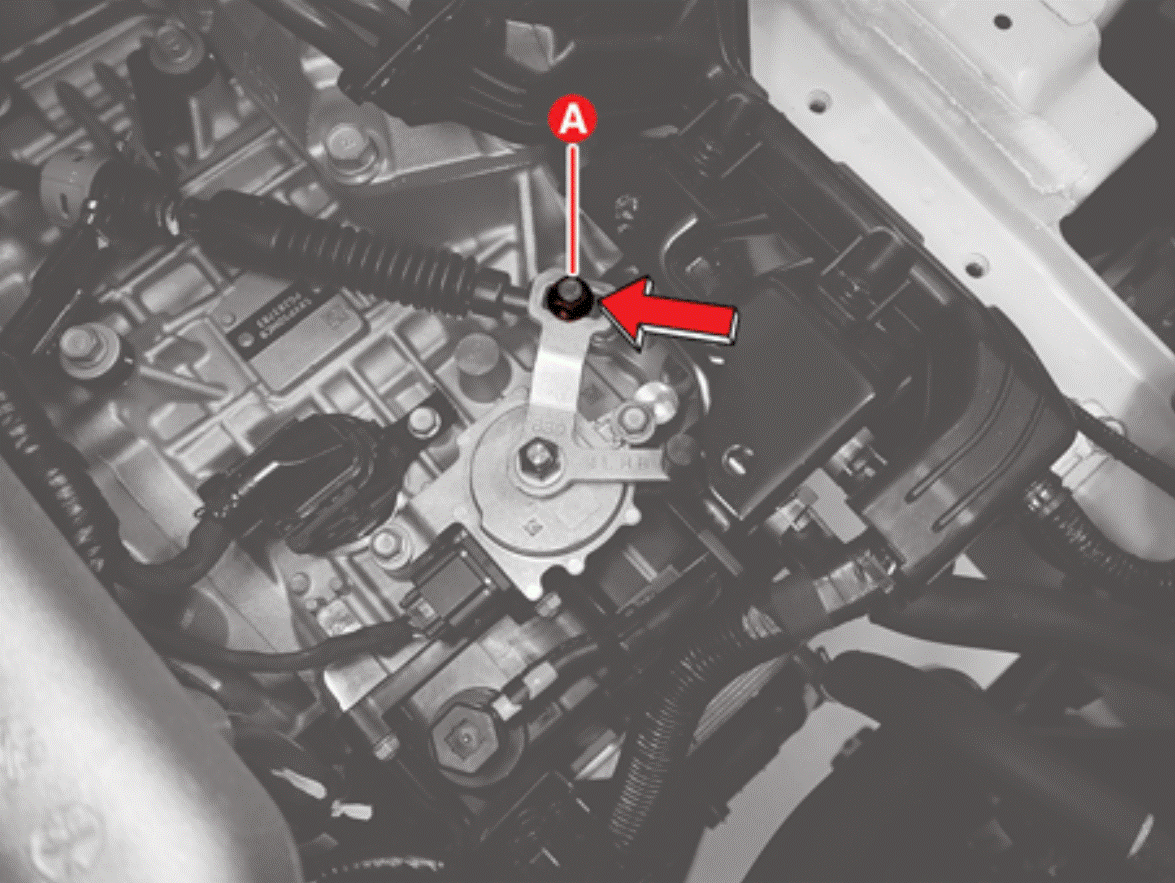

  7. Tighten the nut (A) to the specified torque after removing free play after pushing the shift cable in the direction of the arrow.

    Tightening torque:

    9.8 - 14.7 N.m (1.0 - 1.5 kgf.m, 7.2 - 10.8 lb.ft)

    G15693626Courtesy of KIA MOTORS AMERICA, INC.

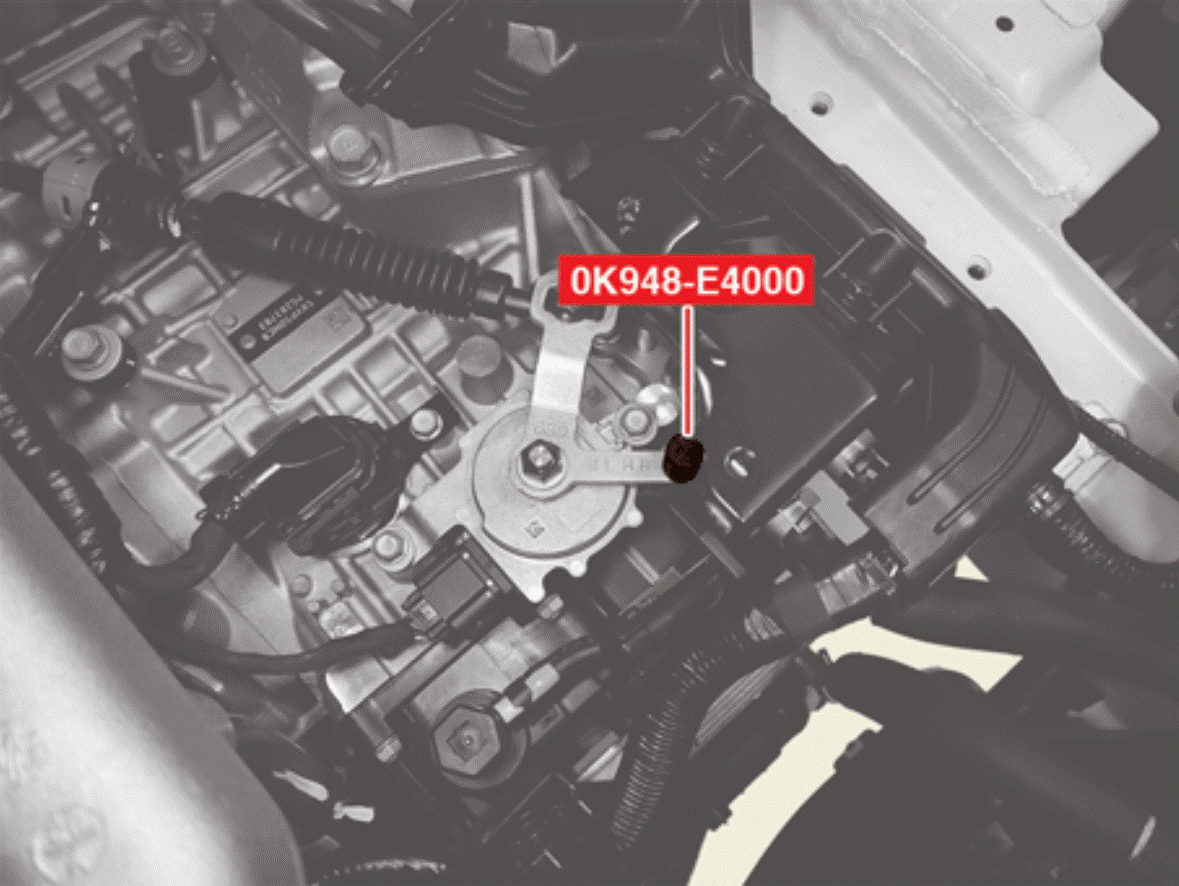

  8. Remove the SST (0K948 - E4000).
    G15693627Courtesy of KIA MOTORS AMERICA, INC.

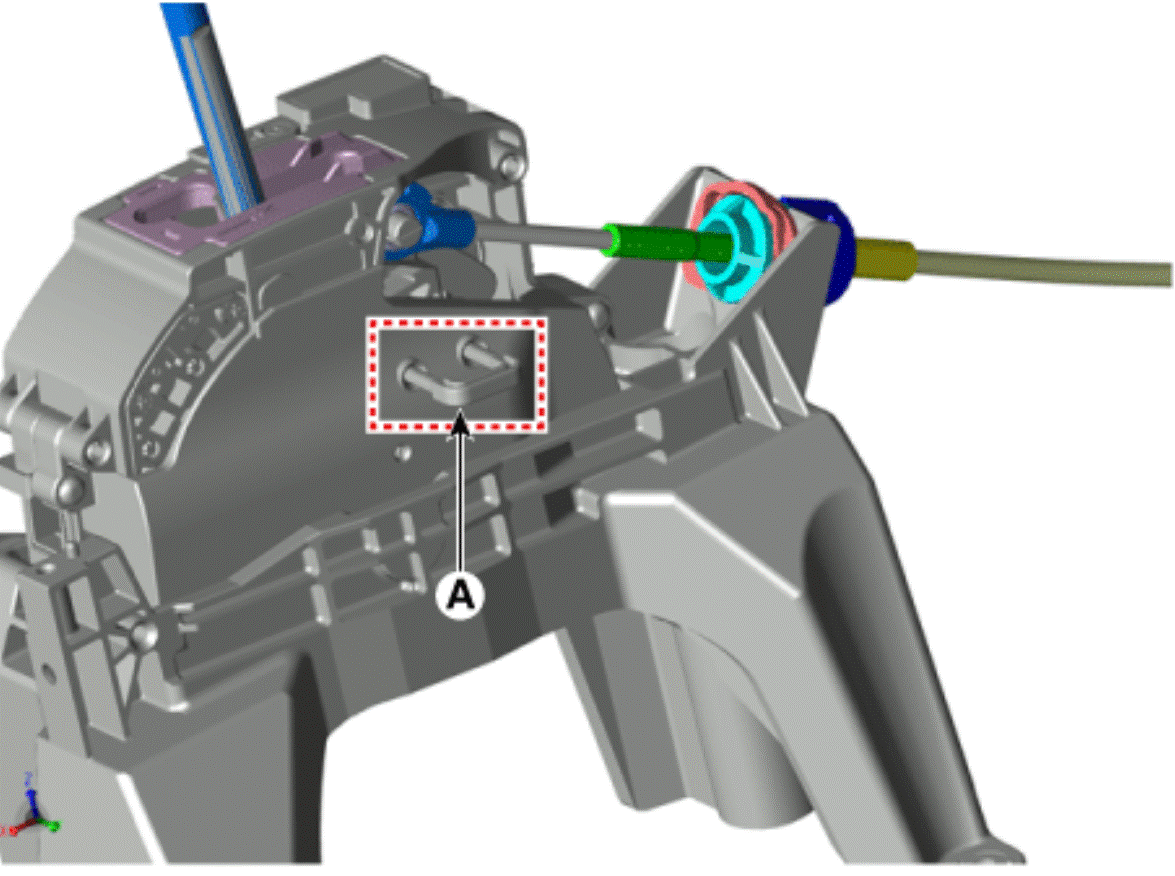

  9. Make sure to get rid of "N range fixing pin" (A) after installing the shift lever assembly.
    G15693628Courtesy of KIA MOTORS AMERICA, INC.
  10. Install the floor console assembly.

    (Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

  11. Install the battery tray.

    (Refer to Body Electrical System - "BATTERY ")

  12. Install the air cleaner assembly.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

  13. Install the battery.

    (Refer to Body Electrical System - "BATTERY ")
