Position Switch: Removal
- Shift the gear to N.NOTE: Use wheel chocks to prevent vehicle moved accidentally.
- Remove the battery.
(Refer to Body Electrical System - "BATTERY ")
- Remove the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")
- Remove the battery tray.
(Refer to Body Electrical System - "BATTERY ")

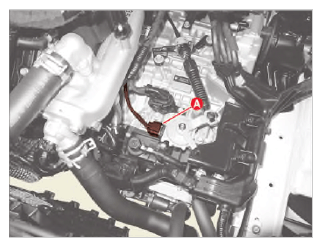

- Disconnect the position switch connector (A).

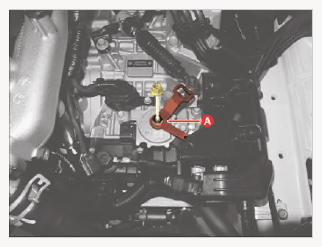

- Remove the shift cable after removing the nut (A).

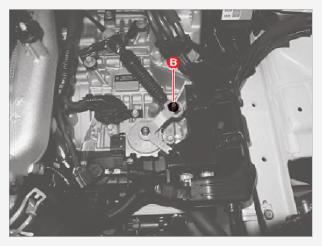

- Remove the manual control lever (A) and the washer after removing the nut.

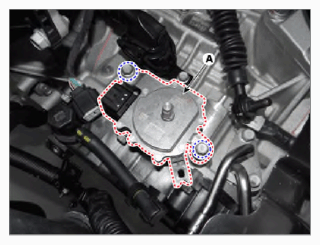

- Remove the position switch (A) after removing the bolts.
