Removal & Installation: Removal
- Perform the oil pressure characteristics backup procedure using the KDS. (When replacing with a new TCM)
(S/W Management → Automatic Transaxle → Oil-pressure Characteristics BackUp & Input)
Information
Refer to the KDS screen for operating conditions and details.
- Remove the main crash pad assembly.
(Refer to Body - " MAIN CRASH PAD ASSEMBLY ")

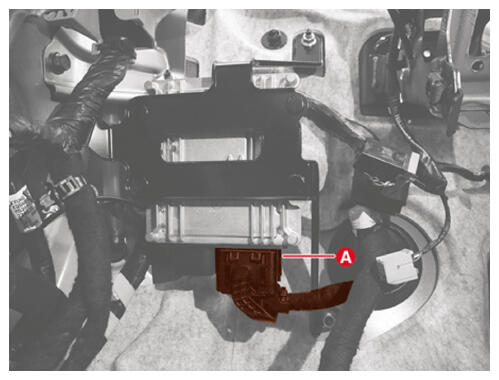

- Disconnect the TCM connector (A).

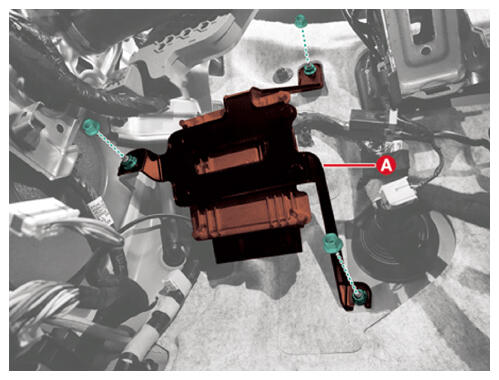

- Remove the TCM (A) after removing the nuts.
Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)
