2024 Kia Seltos X-LineFACTORY OEM SERVICE PROCEDURE

Speed Sensor: Removal

NOTE:
  • Maintain clean condition so that foreign substance does not get into the automatic transaxle.
  • Use a coated apron, latex gloves, and stainless tray to prevent foreign substances from entering the internal part of the automatic transaxle.
  • Automatic transaxle is composed of delicate components. Be careful not to cause any damage on the component when assembling and disassembling.
  1. Shift the gear to N.
    NOTE: Use wheel chocks to prevent vehicle moved accidentally.
  2. Remove the engine room under cover.

    (Refer to Engine Mechanical System - " ENGINE ROOM UNDER COVER  ")

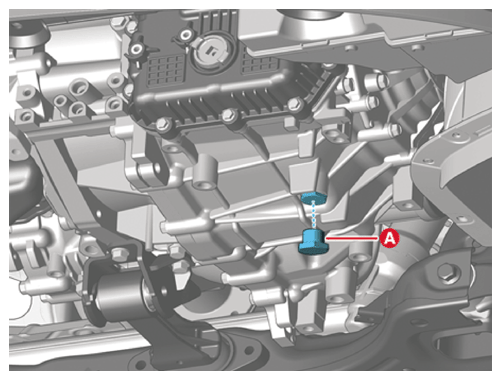

  3. Remove the ATF drain plug (A), allow the fluid to drain out and then reinstall the drain plug.

    Tightening torque:

    33.3 - 43.1 N.m (3.4 - 4.4 kgf.m, 24.6 - 31.8 lb.ft)

    G16424138Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:
    • Automatic transaxle fluid (ATF) can be reused. Collect it using a clean 10 l  beaker.
    • The existing ATF drain plug gasket must be replaced with a new one (do not reuse).
  4. Disconnect the battery negative (-) terminal.
  5. Remove the air cleaner assembly.

    (Refer to Engine Mechanical System - " AIR CLEANER REMOVAL & INSTALLATION  ")

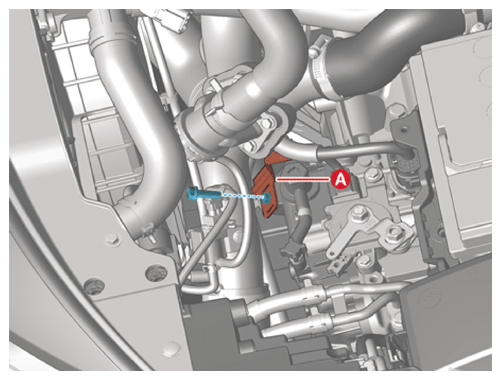

  6. Remove the wiring bracket (A) after removing the bolt.

    Tightening torque:

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

    G16424139Courtesy of KIA MOTORS AMERICA, INC.

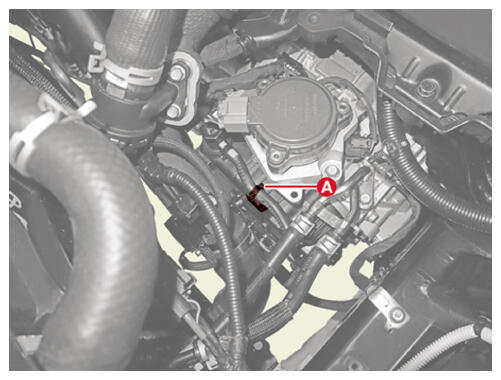

  7. Separate the breather hose clip (A).
    G16424140Courtesy of KIA MOTORS AMERICA, INC.

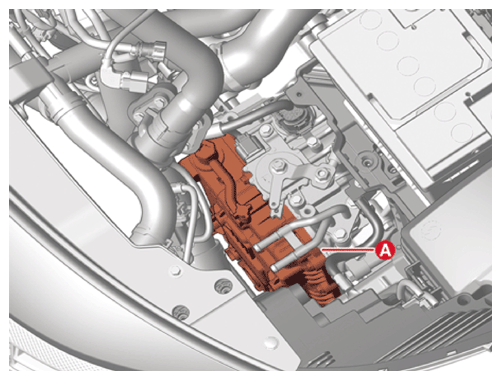

  8. Remove the valve body cover (A) upper bolts.

    Tightening torque:

    11.8 - 13.7 N.m (1.2 - 1.4 kgf.m, 8.7 - 10.1 lb.ft)

    G16424141Courtesy of KIA MOTORS AMERICA, INC.

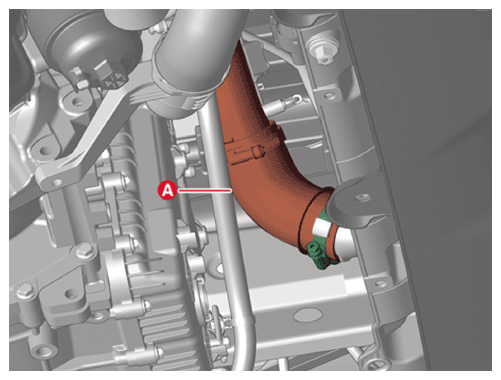

  9. Separate the intercooler hose (A) after removing the clamp.

    Tightening torque:

    4.9 - 6.9 N.m (0.5 - 0.7 kgf.m, 3.6 - 5.1 lb.ft, 43.4 - 60.8 lb.in)

    G16424142Courtesy of KIA MOTORS AMERICA, INC.

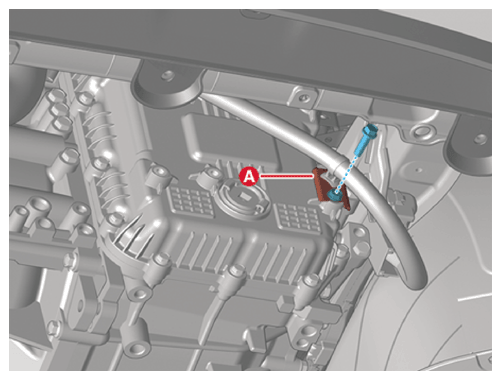

  10. Remove the wiring bracket (A) after removing the bolt.

    Tightening torque:

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

    G16424143Courtesy of KIA MOTORS AMERICA, INC.

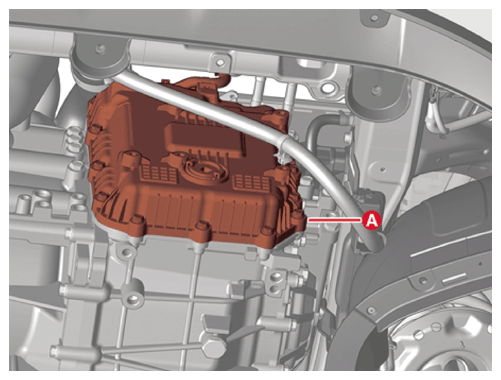

  11. Remove the valve body cover (A) after removing the bolts.

    Tightening torque:

    11.8 - 13.7 N.m (1.2 - 1.4 kgf.m, 8.7 - 10.1 lb.ft)

    G16424144Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: Be careful not to spill the remaining ATF when removing the valve body cover.

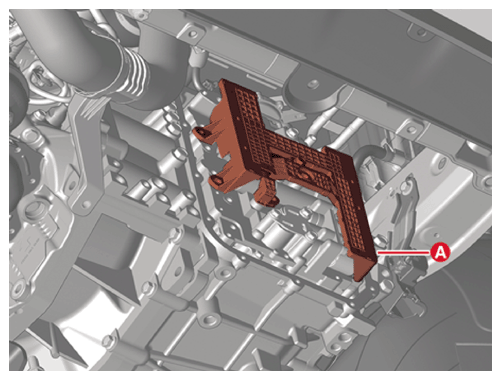

  12. Separate the E module (A) after removing the bolts.

    Tightening torque:

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

    G16424145Courtesy of KIA MOTORS AMERICA, INC.

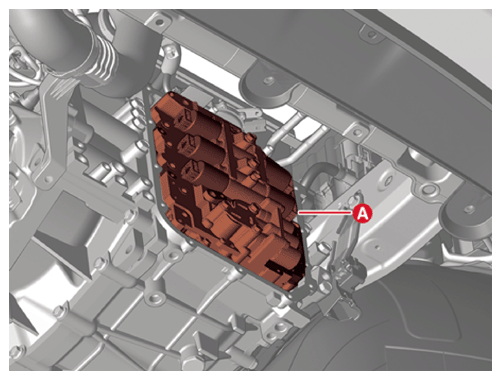

  13. Remove the valve body assembly (A) after removing the bolts.

    Tightening torque:

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

    G16424146Courtesy of KIA MOTORS AMERICA, INC.

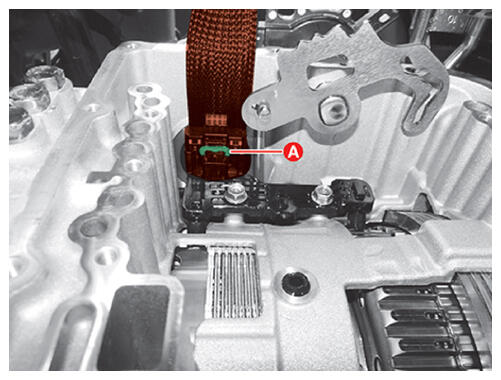

  14. Disconnect the speed sensor connector (A).
    G16424147Courtesy of KIA MOTORS AMERICA, INC.

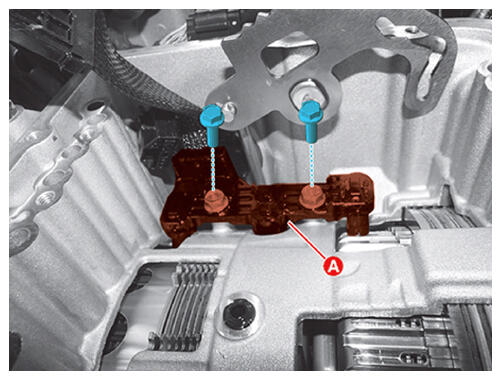

  15. Remove the speed sensor (A) after removing the bolts.

    Tightening torque:

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

    G16424148Courtesy of KIA MOTORS AMERICA, INC.
