2024 Kia Seltos X-LineFACTORY OEM SERVICE PROCEDURE

Oil Temperature Sensor (E Module): Installation

  1. Install in reverse order of removal.
    NOTE:

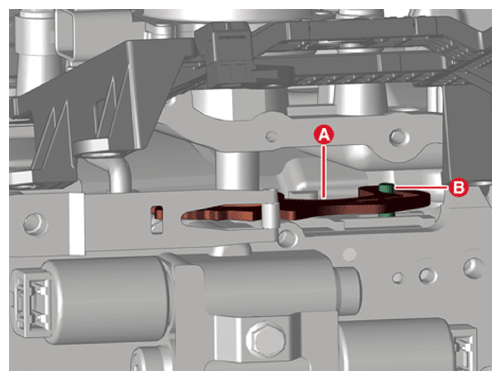

    • When installing the valve body, make sure that the pin (B) of the manual valve is inserted into the detent lever (A).
      G16424132Courtesy of KIA MOTORS AMERICA, INC.

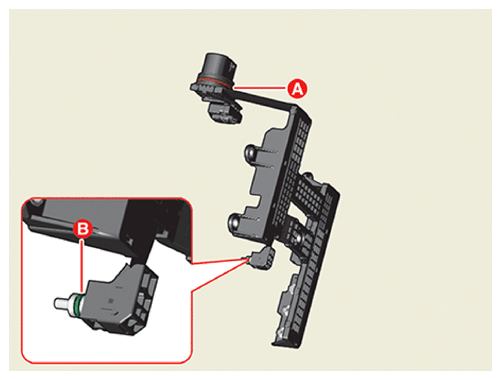

    • Lubricate the main connector O-ring (A) and oil temperature sensor O-ring (B) before installing the E module.
      G16424133Courtesy of KIA MOTORS AMERICA, INC.

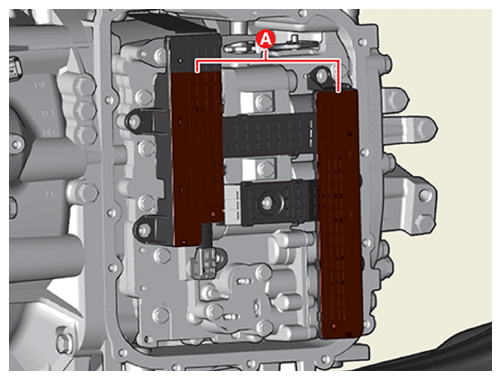

    • When installing, after mounting the E module, lightly tap the connector part (A) to insert the connector certainly and then tighten the bolts.
    G16424134Courtesy of KIA MOTORS AMERICA, INC.

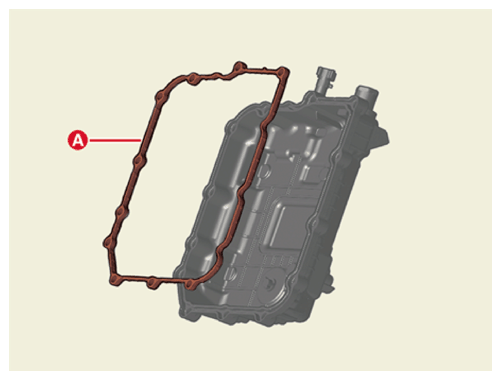

    • The existing valve body cover gasket (A) must be replaced with a new one (do not reuse).
      G16424135Courtesy of KIA MOTORS AMERICA, INC.

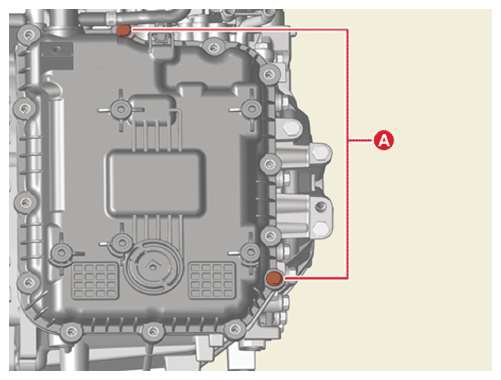

    • When installing the valve body cover, tighten the remaining bolt after pre-tightening the bolt (A).
    G16424136Courtesy of KIA MOTORS AMERICA, INC.
    • When installing the clamp, be careful not to damage the hose.
  2. Replenish the automatic transaxle fluid.

    (Refer to " HYDRAULIC SYSTEM - FLUID  ")

  3. Check for leakage of coolant or fluid from hose connection while the engine is starting and running.
