2024 Kia Seltos X-LineFACTORY OEM SERVICE PROCEDURE
TCM Learning
- When shift shock occurs or parts related with the automatic transaxle are replaced, TCM learning should be performed.
- In the following case, TCM learning is required.
- Automatic transaxle assembly replacement
- TCM upgrade or replacement
- Valve body assembly replacement

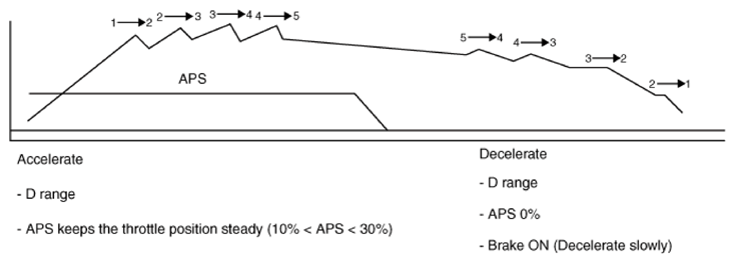

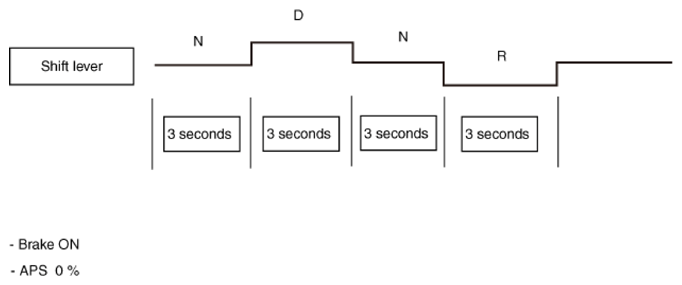

TCM adaptive values learning procedure: Repeat the above procedure at least three times as shown in the pattern of illustration below.
