Engine Control Module (ECM): Adjustment
Information
Perform inspecting procedure with the KDS the order below.
- Perform the procedures below with the KDS when replacing the Engine Control Module (ECM) with a reused one.
- Perform the resetting adaptive values.
(S/W Management → Engine Control → Resetting Adaptive Values)
- Perform the immobilizer neutral mode/smart key neutralization mode.
- Non-Smart Key type
(S/W Management → Immobilizer → Neutral Mode)
- Smart Key type
(S/W Management → Smart Key Unit → Neutralization Mode)
- Non-Smart Key type
- Perform the auto detected configuration reset.
(S/W Management → Engine Control → Auto Detected Configuration Reset)

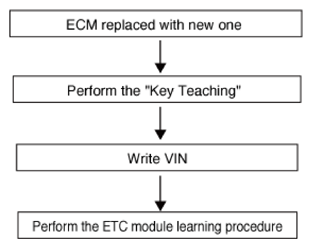

- Perform the resetting adaptive values.
- Perform the "Key Teaching" procedure with the KDS.
- Non-Smart Key type
(S/W Management → Immobilizer → LEARNT KEYS)
- Smart Key type
Turn IG ON then OFF using the smart key or start button. Then the ECM learns information on the smart key automatically.
- Non-Smart Key type
- Perform the VIN writing procedure with the KDS.
(S/W Management → Engine Control → Write VIN)
Information
Refer to the KDS screen for operating conditions and details.
- Perform the Electronic Throttle Control (ETC) module learning procedure.
(Refer to Engine Control/Fuel System - "ELECTRONIC THROTTLE CONTROL (ETC) MODULE ")
- Perform the Electronic Throttle Control (ETC) module learning procedure.
