Removal & Installation: Removal
- Disconnect the battery negative (-) terminal.

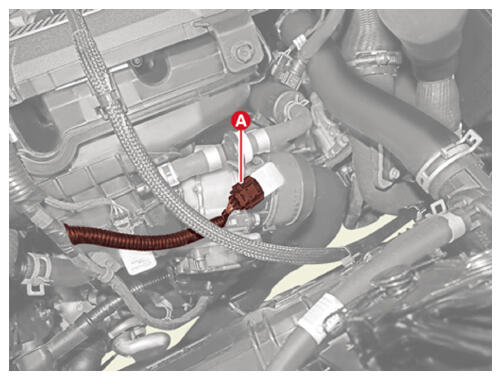

- Disconnect the Boost Pressure Sensor (BPS) connector (A).

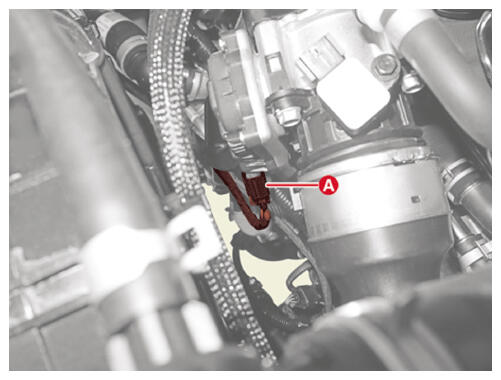

- Disconnect the Electronic Throttle Control (ETC) Module connector (A).

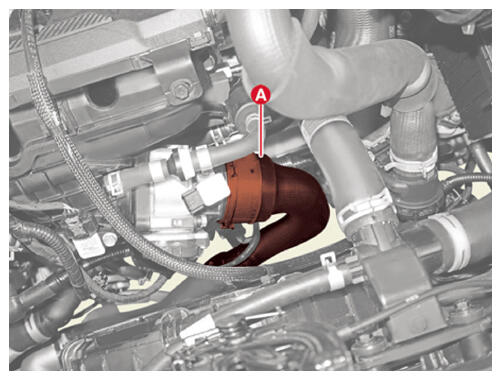

- Separate the air intake hose (A).
Information

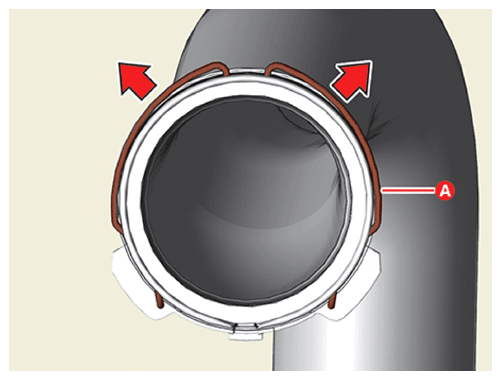

- Pull the quick-connector clamp (A) in the direction of the arrow when separating the air intake hose.

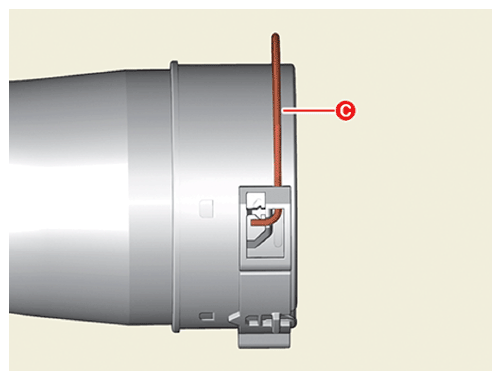

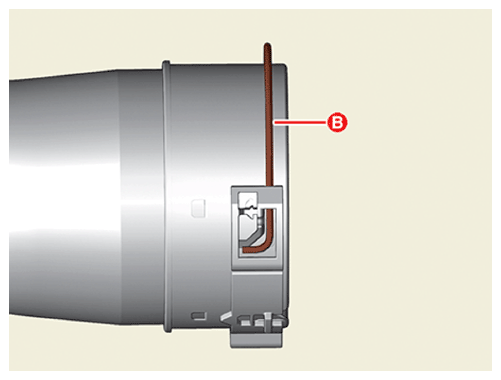

- After moving the quick connector clamp (B) to (C) position as shown in the figure below, pull out the air intake hose to separate it.
- Pull the quick-connector clamp (A) in the direction of the arrow when separating the air intake hose.

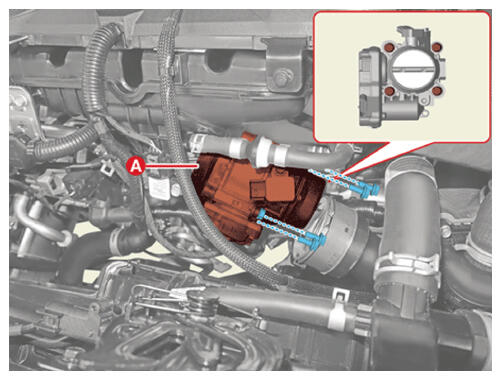

- Remove the ETC module (A) by removing the bolts.
Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

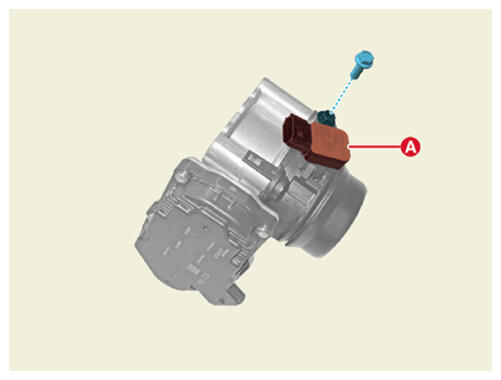

- Remove the BPS (A) after removing the bolt.
Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)
