2024 Kia Niro EXFACTORY OEM SERVICE PROCEDURE

Electronic Throttle Control (ETC) Motor

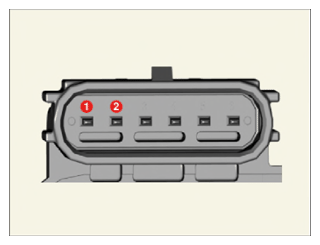

  1. Measure resistance between the ETC module terminals 1 and 2 after disconnecting the connector.

    Specified value:Β  1.71 - 2.09Ξ©

    G15767099Courtesy of KIA MOTORS AMERICA, INC.
    Terminal Function
    1 Motor (-)
    2 Motor (+)
