Repair Procedures: Installation
- Intelligent Variable Transmission (IVT) is composed of delicate components. Be careful not to cause any damage on the component when assembling and disassembling.
- Maintain clean condition so that foreign substance does not get into the Intelligent Variable Transmission (IVT).
- Use a coated apron, latex gloves, and stainless tray to prevent foreign substance from getting into the Intelligent Variable Transmission (IVT).

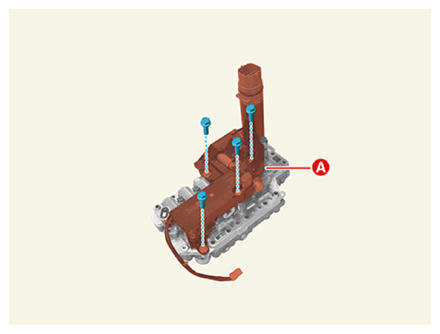

- Install the E-module (A).
Tightening torque:
9.8 - 11.8 N m (1.0 - 1.2 kgf m, 7.2 - 8.7 lb ft)

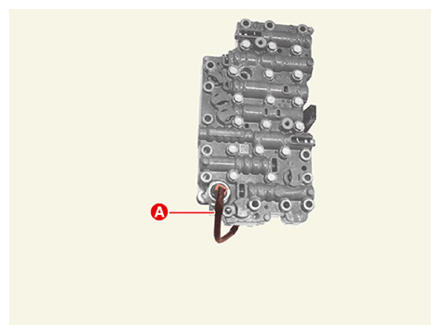

- Connect the pressure sensor connector (A).
- Install the valve body assembly.
(Refer to Hydraulic System - "VALVE BODY ")
