Repair Procedures: Adjustment
Information

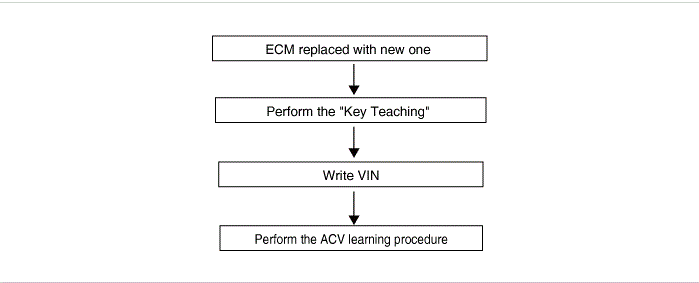

Perform inspecting procedure by using the KDS as below order.
- Perform the "Key Teaching" procedure by using the KDS.
[None-Smart Key]
(S/W Management → Immobilizer → LEARNT KEYS)
[Smart Key]
Turn IGN ON then OFF using the smart key or start button. Then the ECM learns information on the smart key automatically.
- Perform the VIN writing procedure by using the KDS.
(S/W Management → Engine Control → Write VIN)
- Using the KDS, input the current odometer values (km) on cluster for count the drift soot value information of DPF.
(S/W Management → Engine Control → Essential work after component replacement → ECU replacement (DPF OPT))
- Perform the Electronic Throttle Control (ETC) learning procedure.
(Refer to "ETC (Electronic Throttle Control) System ")
Information
Refer to the KDS screen for operating conditions and details.
