2024 Kia EV9 LightFACTORY OEM SERVICE PROCEDURE

Steering Column Module (SCM) Switch

  1. Turn the IG OFF, separate the auxiliary battery (12 V) (-) terminal, and disconnect the high voltage service interlock connector.

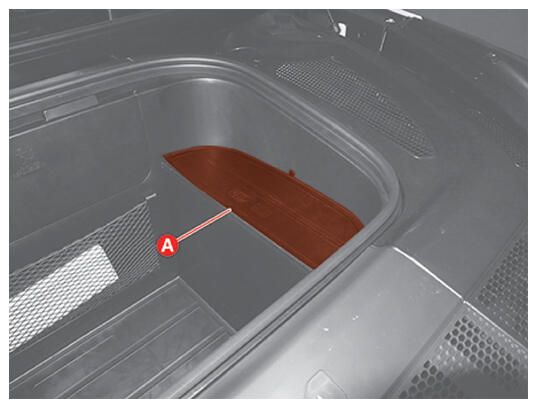

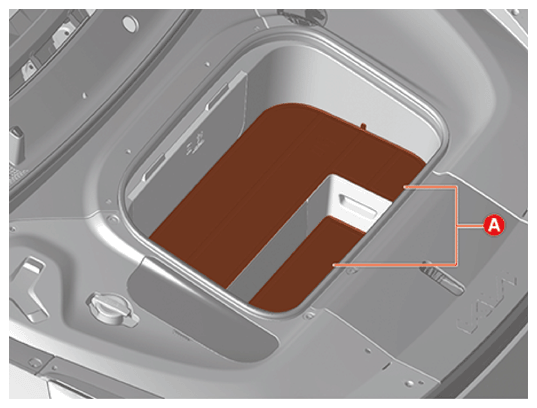

    1. Remove the front trunk pad (A).

      [2WD]

      G16895564Courtesy of KIA MOTORS AMERICA, INC.

      [4WD]

      G16895565Courtesy of KIA MOTORS AMERICA, INC.

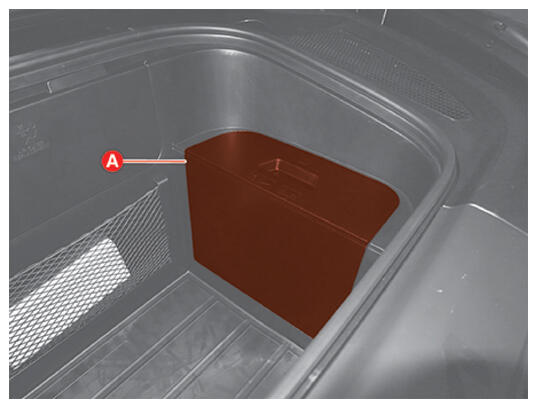

    2. Remove the auxiliary battery (12 V) service cover (A).

      [2WD]

      G16895566Courtesy of KIA MOTORS AMERICA, INC.

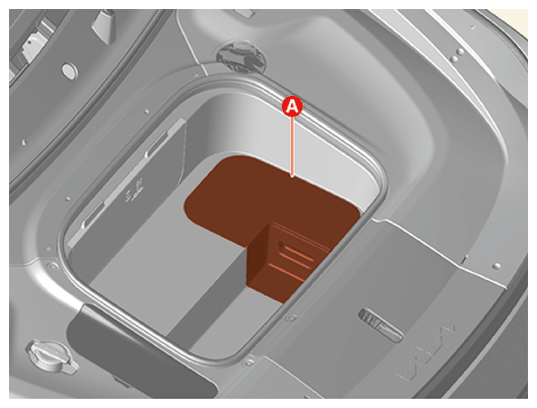

      [4WD]

      G16895567Courtesy of KIA MOTORS AMERICA, INC.

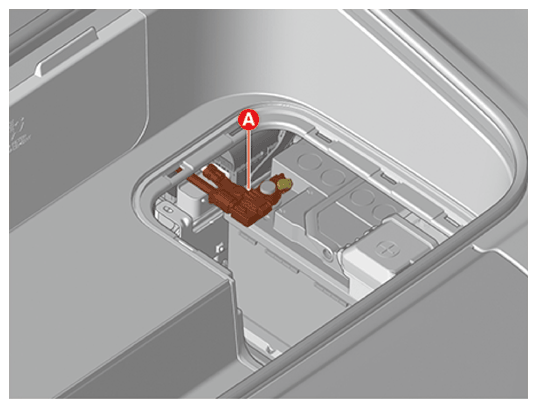

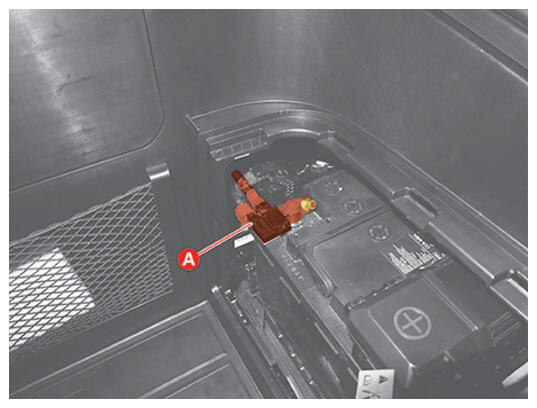

    3. Disconnect the auxiliary battery (12 V) negative (-) terminal (A) after loosening the nut.

      Tightening torque:  7.8 - 9.8 N.m (0.8 - 1.0 kgf-m, 5.8 - 7.2 lb-ft)

      [2WD]

      G16895568Courtesy of KIA MOTORS AMERICA, INC.

      [4WD]

      G16895569Courtesy of KIA MOTORS AMERICA, INC.

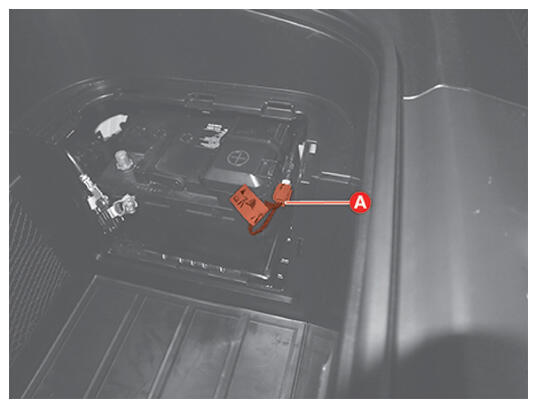

    4. Remove the high voltage service interlock connector (A).
      G16895570Courtesy of KIA MOTORS AMERICA, INC.
    WARNING: Wait more than 5 minutes for capacitor of the high voltage battery system to be discharged completely.
  2. Remove the steering column lower shroud panel.

    (Refer to Body - " STEERING COLUMN SHROUD PANEL  ")

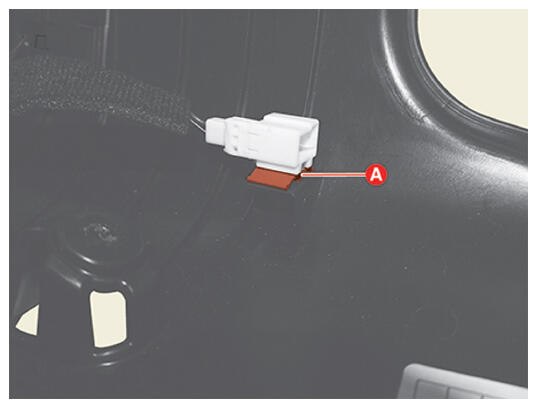

  3. Separate the steering column module switch connector clip (A).
    G16895571Courtesy of KIA MOTORS AMERICA, INC.

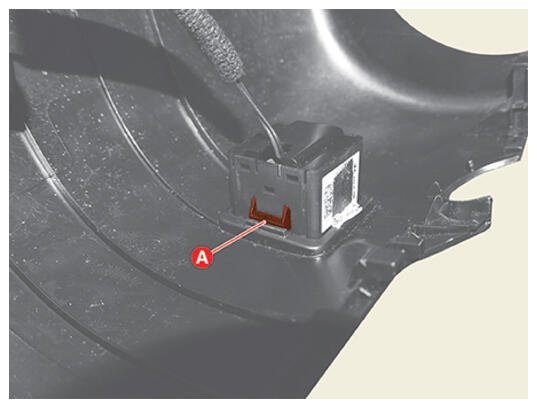

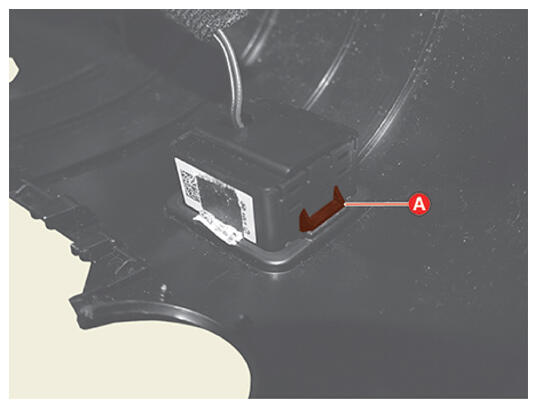

  4. Remove the steering column module switch (B) pushing in direction of the arrow while pressing the hinges (A).
    G16895572Courtesy of KIA MOTORS AMERICA, INC.
    G16895573Courtesy of KIA MOTORS AMERICA, INC.
    G16895574Courtesy of KIA MOTORS AMERICA, INC.
