2024 Kia Carnival EXFACTORY OEM SERVICE PROCEDURE

Position Switch: Installation: Installation

  1. Check that the gear is shifted to "N".

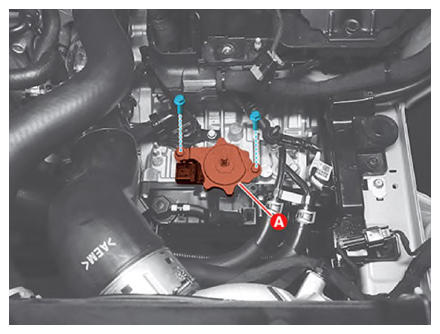

  2. Install the position switch (A).
    NOTE: Lightly tighten the position switch mounting bolts so that necessary adjustments can be made.
    G14797564Courtesy of KIA MOTORS AMERICA, INC.

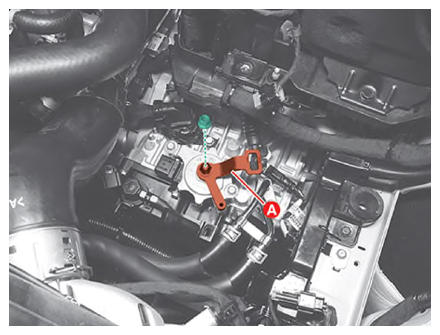

  3. Install the manual control lever (A) and washer.
    NOTE: Lightly tighten the manual control lever nut so that necessary adjustments can be made.
    G14797565Courtesy of KIA MOTORS AMERICA, INC.

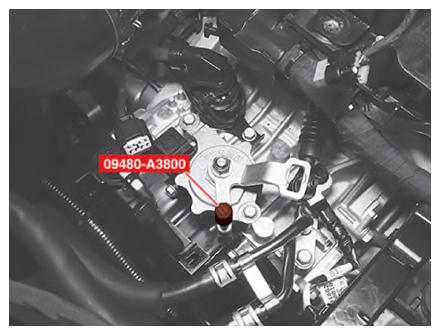

  4. Align the hole in the manual control lever with the "N" position hole of the position switch and then insert the SST position switch guide pin (09480 - A3800).
    G14797566Courtesy of KIA MOTORS AMERICA, INC.

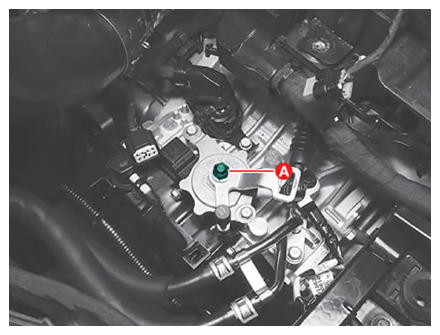

  5. Tighten the manual control lever mounting nut (A).

    Tightening torque:

    17.7 - 24.5 N.m (1.8 - 2.5 kgf.m, 13.0 - 18.1 lb.ft)

    G14797567Courtesy of KIA MOTORS AMERICA, INC.

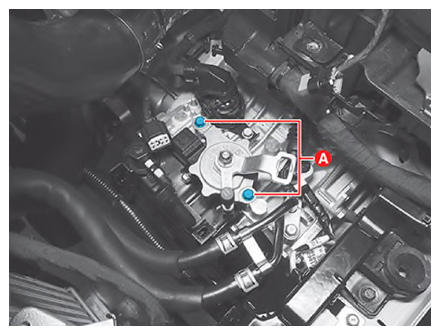

  6. Tighten the position switch mounting bolts (A).

    Tightening torque:

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

    G14797568Courtesy of KIA MOTORS AMERICA, INC.

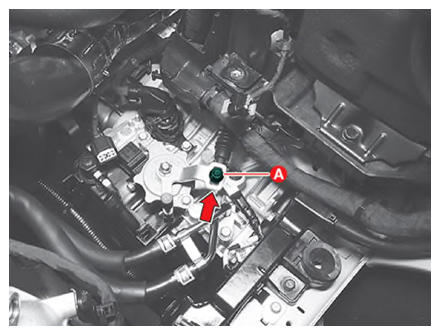

  7. Tighten the nut (A) to the specified torque after removing free play by pushing the shift cable in the direction of the arrow.

    Tightening torque:

    9.8 - 14.7 N.m (1.0 - 1.5 kgf.m, 7.2 - 10.8 lb.ft)

    G14797569Courtesy of KIA MOTORS AMERICA, INC.
  8. Remove the SST (09480 - A3800).
    G14797570Courtesy of KIA MOTORS AMERICA, INC.

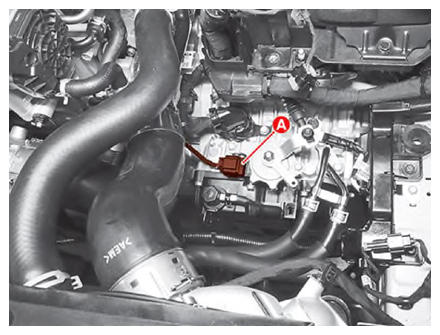

  9. Connect the position switch connector (A).
    G14797571Courtesy of KIA MOTORS AMERICA, INC.
  10. Install the air duct and air cleaner.

    (Refer to Engine Mechanical System - "AIR CLEANER ")
