2023 Kia Telluride EX X-LineFACTORY OEM SERVICE PROCEDURE

Compensation Requirement And Procedure

Simultaneous replacement of AWD ECU (Controller) and coupling
- Does not require compensation.
Replacement of coupling only

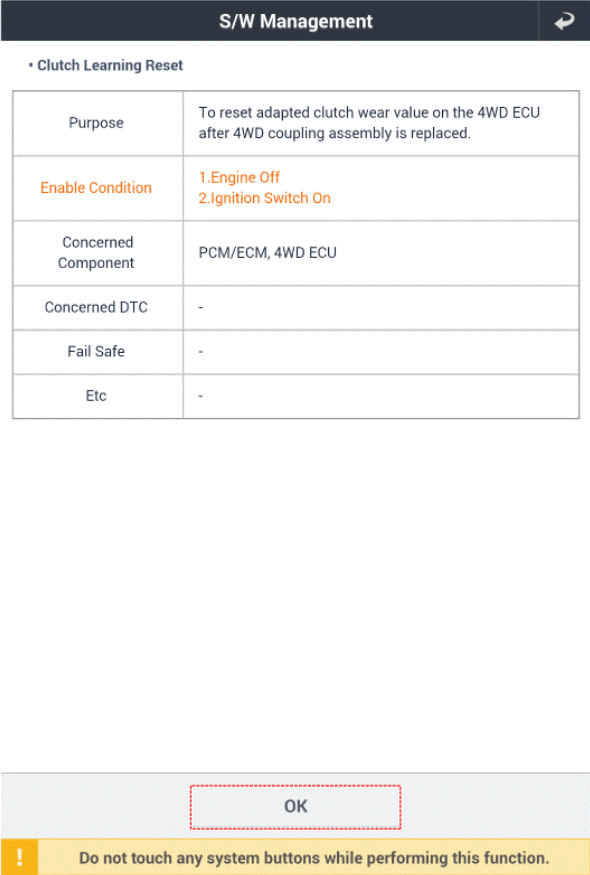

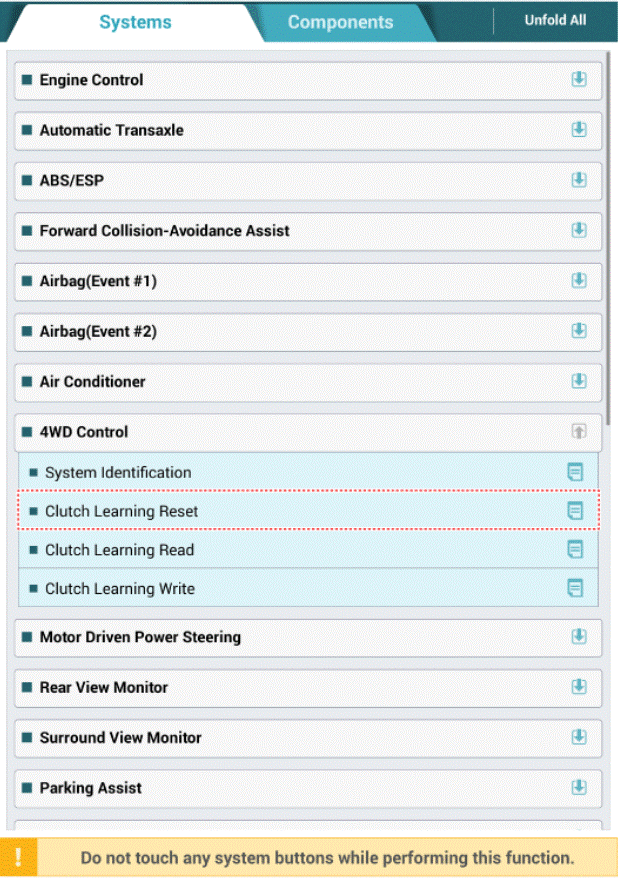

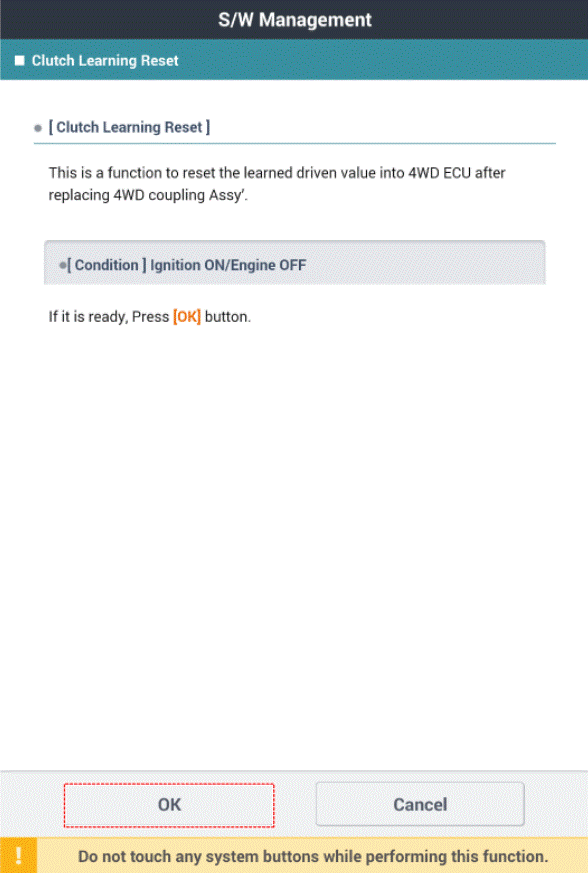

- Reset the AWD ECU's (Controller) clutch learning.
Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
Replacement of AWD ECU (Controller) only
- Before replacement: Check the ECU's clutch learning.

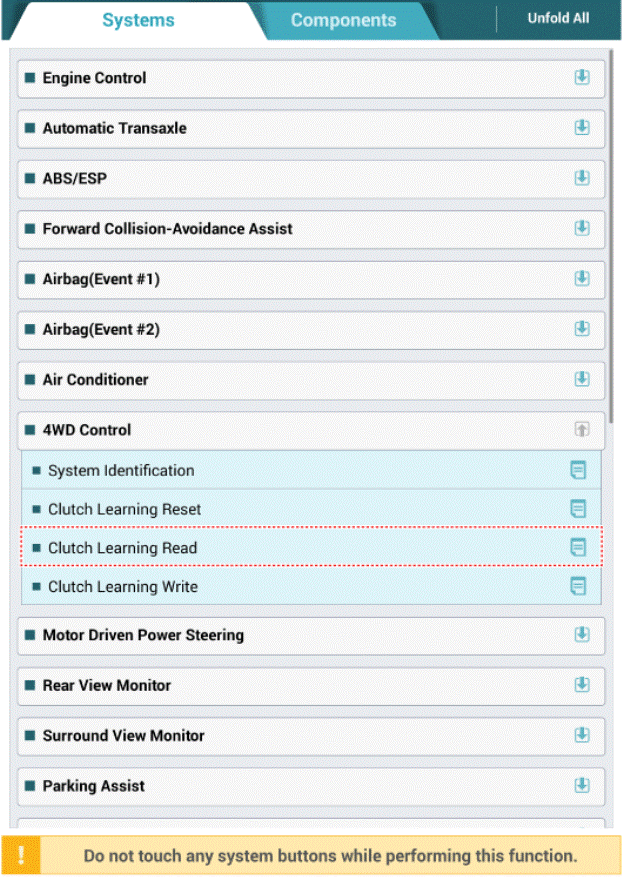

G15693829

Courtesy of KIA MOTORS AMERICA, INC.

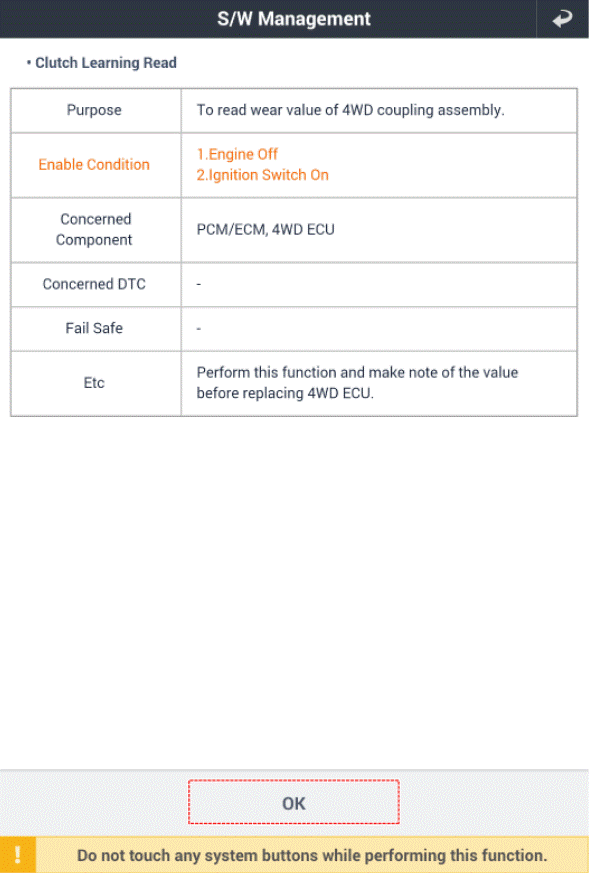

G15693830

Courtesy of KIA MOTORS AMERICA, INC.

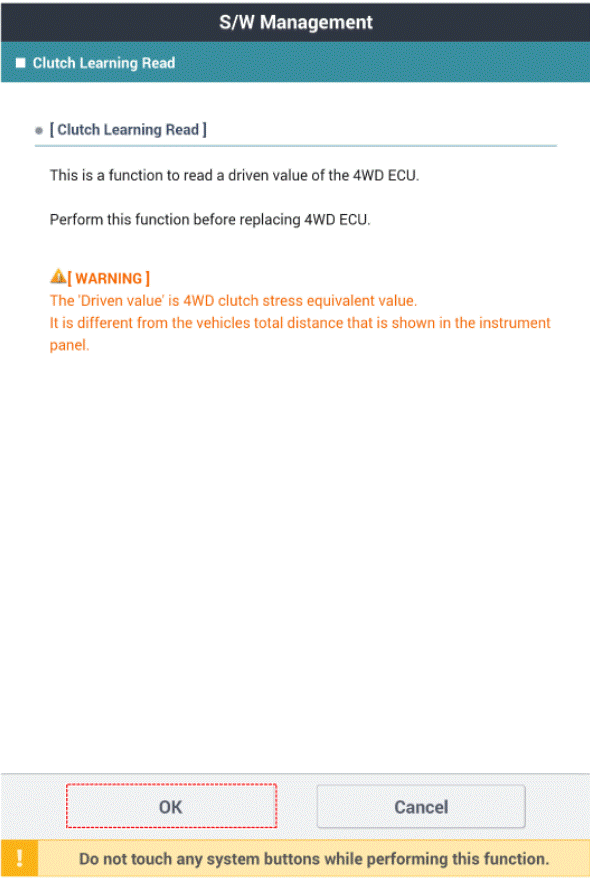

G15693831

Courtesy of KIA MOTORS AMERICA, INC.

After replacement: Enter the original ECU's clutch learning into the replacement ECU.

G15693832

Courtesy of KIA MOTORS AMERICA, INC.

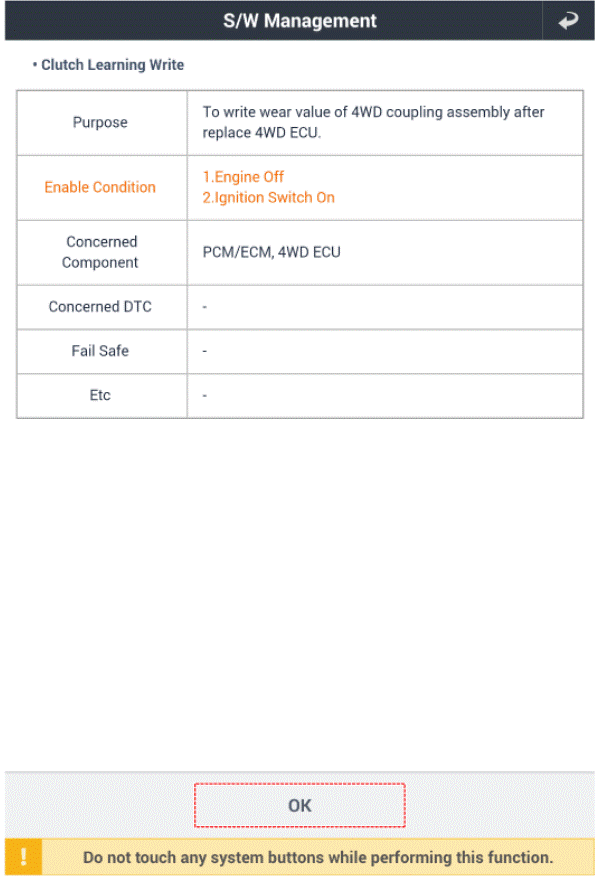

G15693833

Courtesy of KIA MOTORS AMERICA, INC.

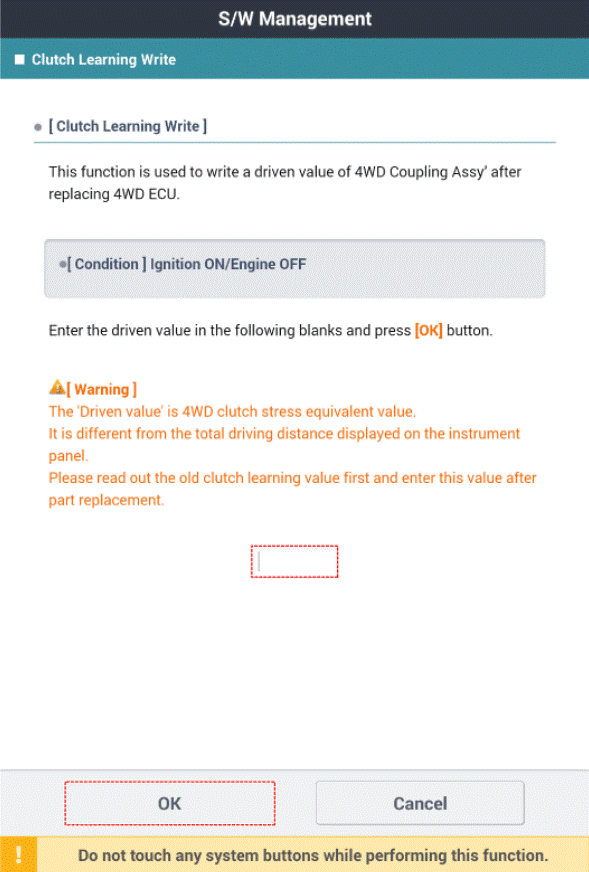

G15693834

Courtesy of KIA MOTORS AMERICA, INC.
