2023 Kia Telluride EX X-LineFACTORY OEM SERVICE PROCEDURE

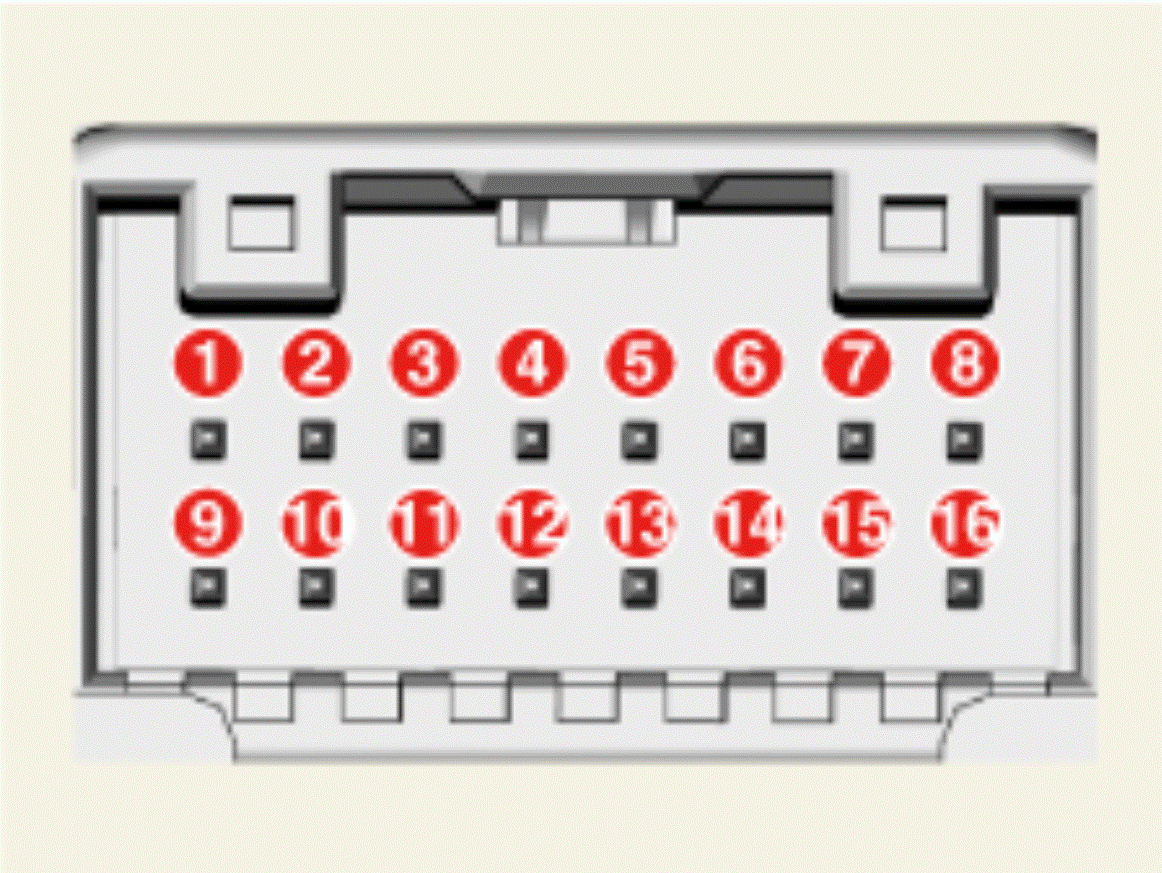

Driver Power Window Switch
| Pin | Function |
|---|---|
| 1 | - |
| 2 | B-CAN (Low) |
| 3 | B-CAN (High) |
| 4 | - |
| 5 | [With IMS] LIN: Power outside mirror control |
| 6 | [Without IMS] Power outside mirror folding signal |
| 7 | [Without IMS] Power outside mirror unfolding signal |
| 8 | Fuse - module 8 |
| 9 | Ground |
| 10 | [Without IMS] Power outside mirror (VL) |
| 11 | [Without IMS] Power outside mirror (HL) |
| 12 | [Without IMS] Outside mirror (Common) [With IMS] Driver IMS switch |
| 13 | [Without IMS] Power outside mirror (HR) |
| 14 | [Without IMS] Power outside mirror (VR) |
| 15 | - |
| 16 | Fuse - module 4 |
