2023 Kia Stinger GT2, AWDFACTORY OEM SERVICE PROCEDURE

Steering Limit Position Setting

NOTE:

Steering Limit Position Setting is must be done when any of cases is met as below.

After replacing SCM Unit.
After replacing steering.
SCM Error (Only 2 second movement while pressing SCM switch)

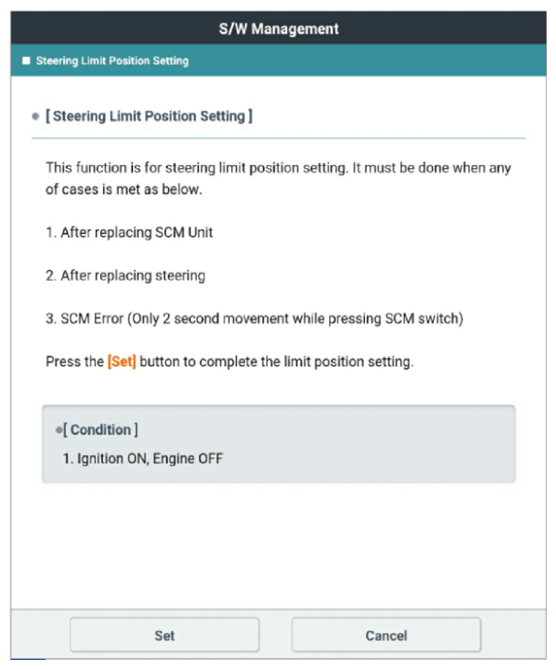

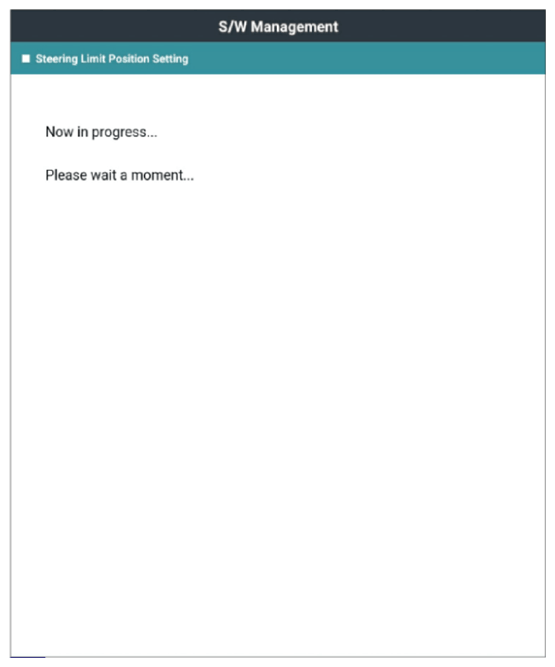

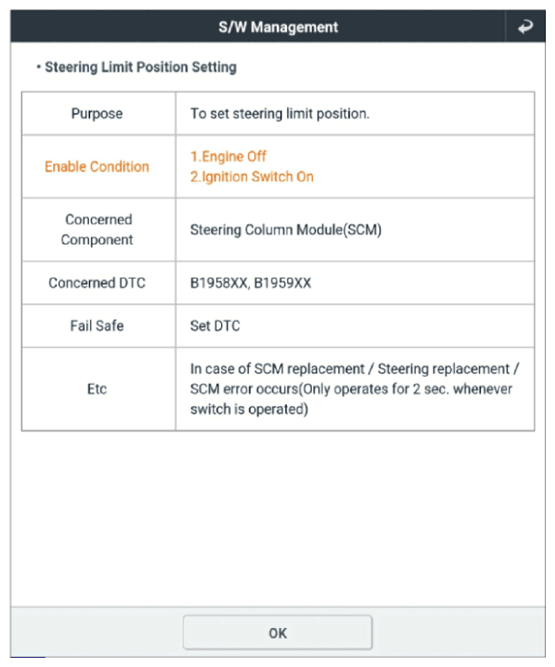

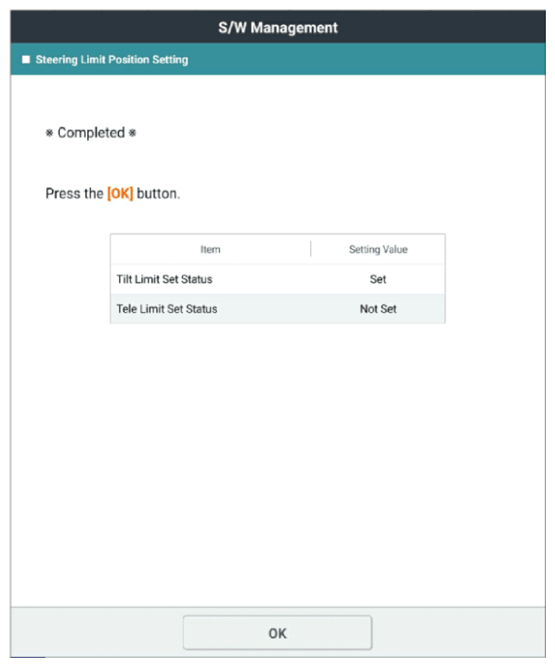

Perform the "Steering Limit Position Setting" using the KDS.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
