2023 Kia Soul EXFACTORY OEM SERVICE PROCEDURE

Repair Procedures: Installation

  1. Check that the shift lever is placed in the N range.

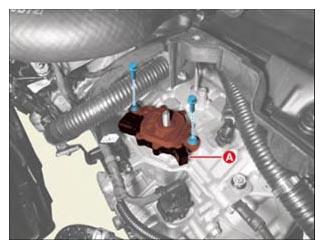

  2. Install the position switch (A).
    NOTE: Lightly tighten the mounting bolts so that necessary adjustments can be made.
    G15694674Courtesy of KIA MOTORS AMERICA, INC.

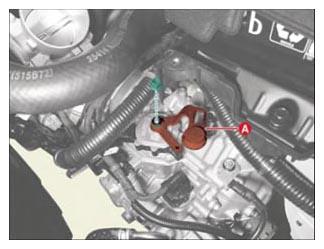

  3. Install the manual control lever (A).
    NOTE: Lightly tighten the mounting nut so that necessary adjustments can be made.
    G15694675Courtesy of KIA MOTORS AMERICA, INC.

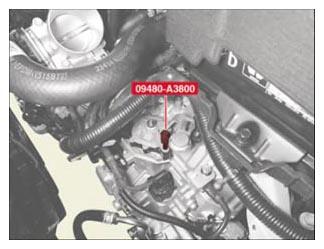

  4. Align the hole in the manual control lever with the N position hole of the position switch and then insert the SST (09480 - A3800).
    G15694676Courtesy of KIA MOTORS AMERICA, INC.

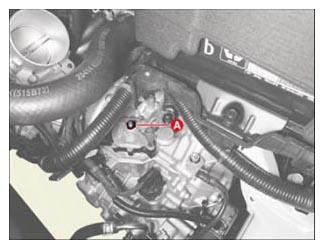

  5. Tighten the manual control lever nut (A) with the specified torque.

    Tightening torque:

    17.7 - 24.5 N.m (1.8 - 2.5 kgf.m, 13.0 - 18.1 lb.ft)

    G15694677Courtesy of KIA MOTORS AMERICA, INC.

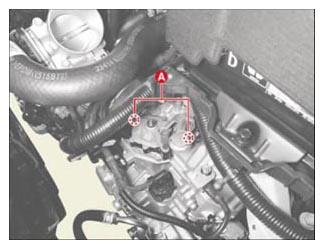

  6. Tighten the position switch bolts (A) with the specified torque.

    Tightening torque:

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

    G15694678Courtesy of KIA MOTORS AMERICA, INC.

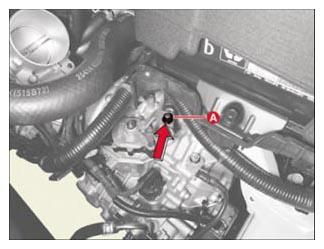

  7. Tighten the nut (A) to the specified torque after removing free play by pushing the shift cable in the direction of the arrow.

    Tightening torque:

    9.8 - 13.7 N.m (1.0 - 1.4 kgf.m, 7.2 - 10.1 lb.ft)

    G15694679Courtesy of KIA MOTORS AMERICA, INC.

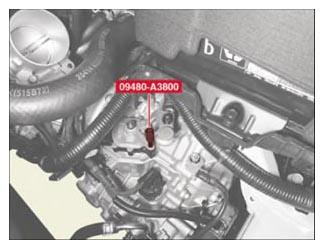

  8. Remove the SST (09480 - A3800).
    G15694680Courtesy of KIA MOTORS AMERICA, INC.

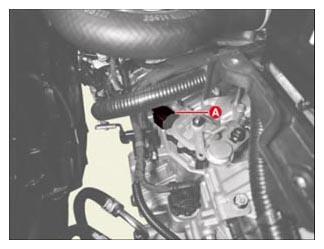

  9. Connect the position switch connector (A).
    G15694681Courtesy of KIA MOTORS AMERICA, INC.
  10. Install the air cleaner assembly.

    (Refer to Engine Mechanical System - "AIR CLEANER ")
