2023 Kia Soul EXFACTORY OEM SERVICE PROCEDURE
Repair Procedures: Removal
- Remove the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")
- Remove the battery and battery tray.
(Refer to Body Electrical System - "BATTERY ")

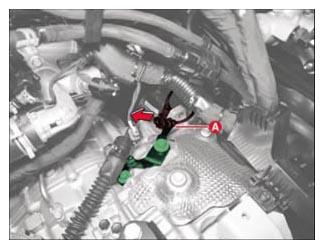

- Disconnect the driven pulley speed sensor connector (A).

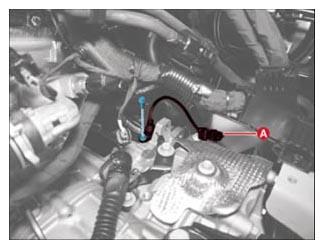

- Remove the driven pulley speed sensor connector (A) from the bracket.
- Remove the driven pulley speed sensor (A) after removing the bolt.
Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)
