Repair Procedures: Removal
- Shift the shift lever to the N range.NOTE: Use wheel chocks to prevent vehicle moved accidentally.
- Disconnect the battery negative (-) terminal.
- Remove the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")

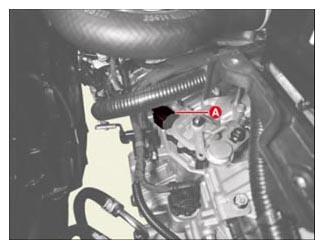

- Disconnect the position switch connector (A).

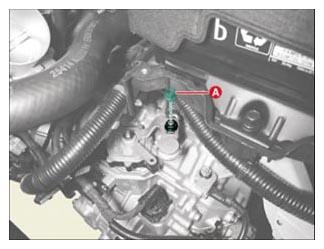

- Remove the shift cable after removing the nut (A).

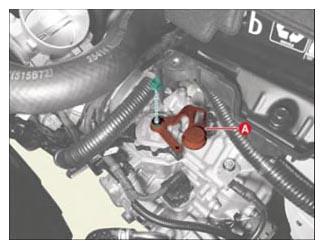

- Remove the manual control lever (A) and the washer after removing the nut.

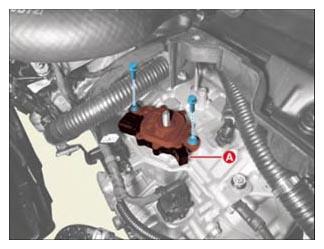

- Remove the position switch (A) after removing the bolts.
