Spark Plug: Troubleshooting

(Refer to Spark Plug - "REMOVAL ")

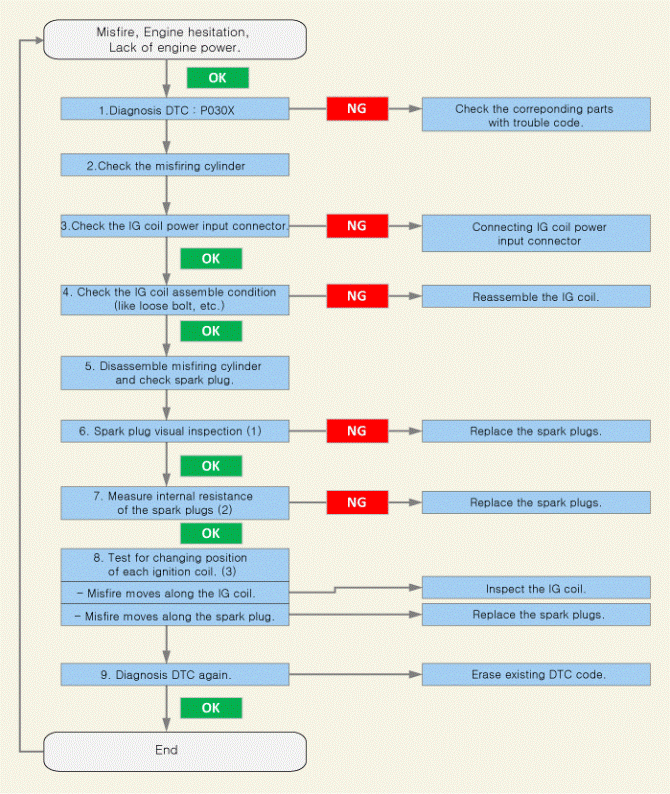

Spark plugs point gap:

0.8 - 0.9 mm (0.0314 - 0.0354 in.)

Symptom	Suspected Area	Remedy

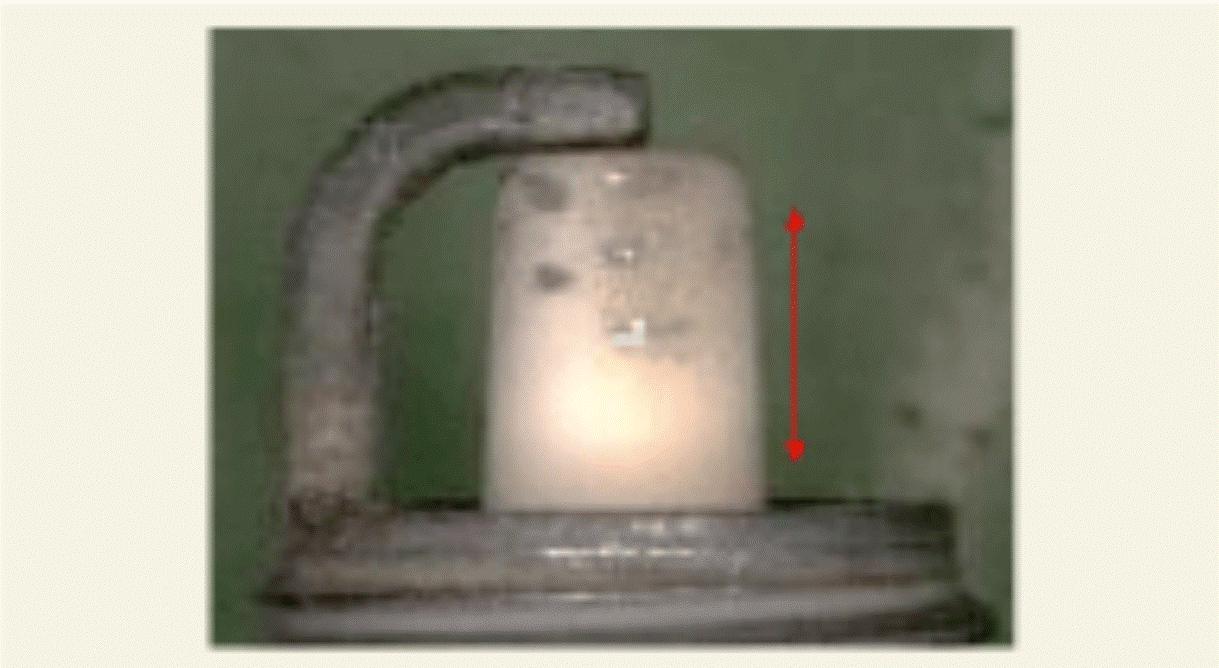

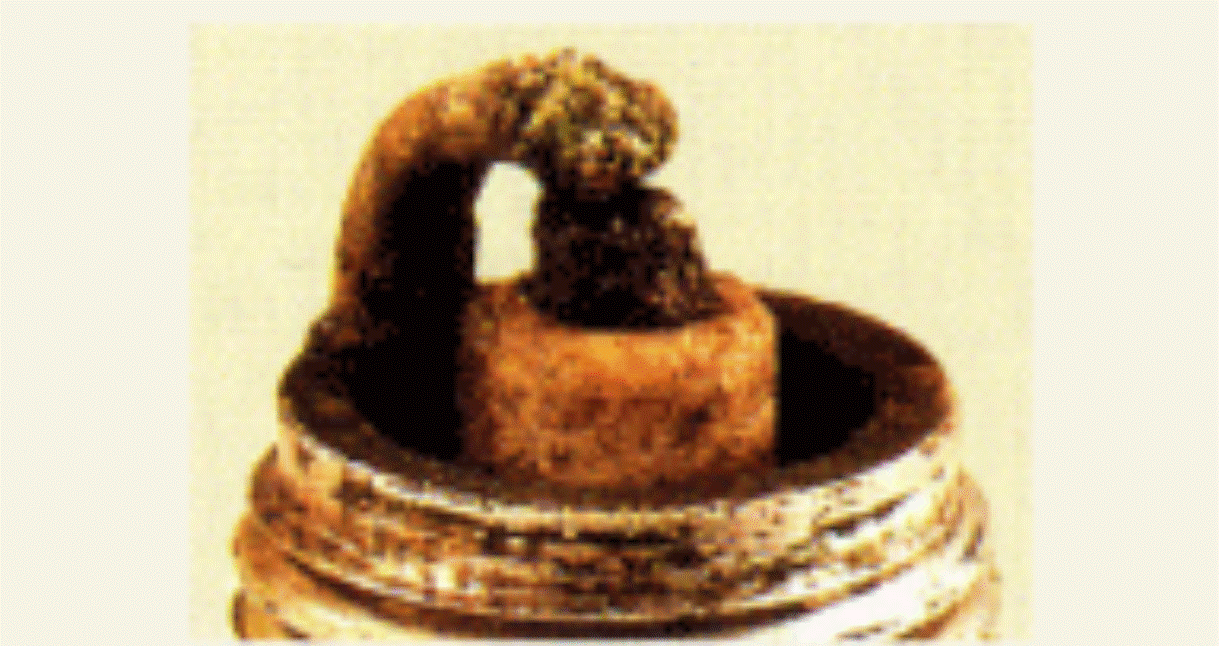

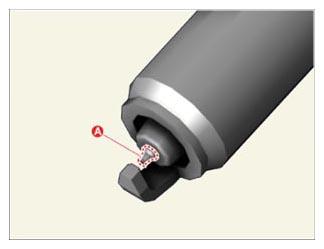

Courtesy of KIA MOTORS AMERICA, INC. Melting Electrode	Abnormal Combustion, Over Heat	Replace the Spark Plugs

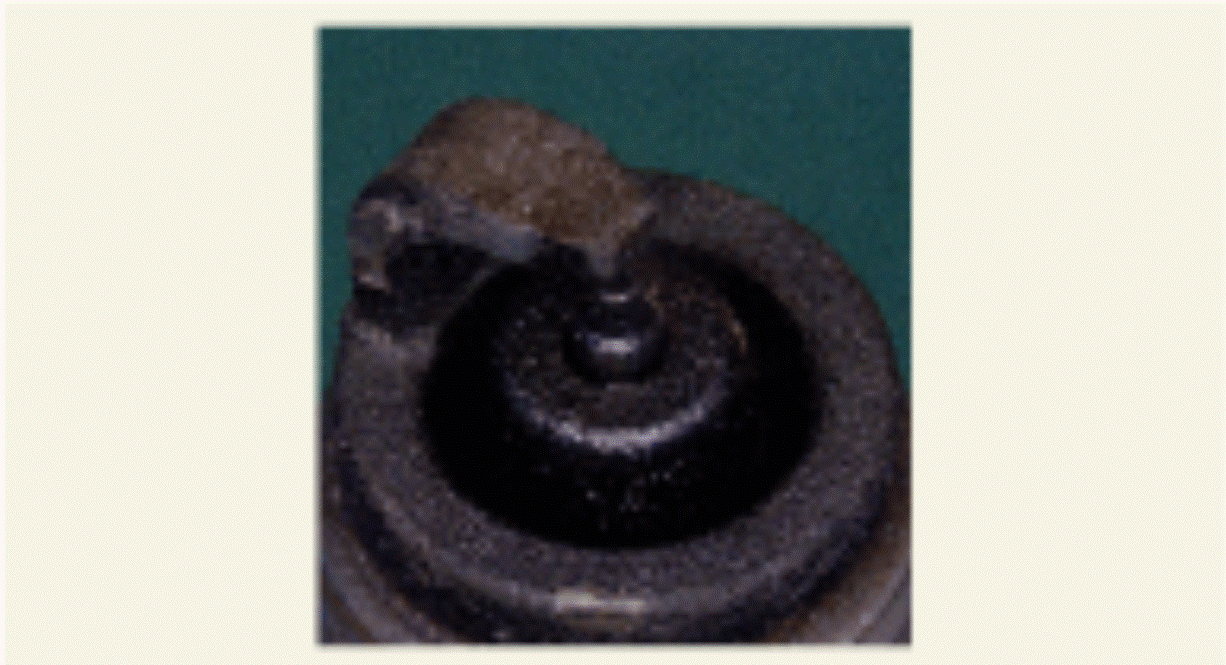

Courtesy of KIA MOTORS AMERICA, INC. Carbon and Foreign Matter

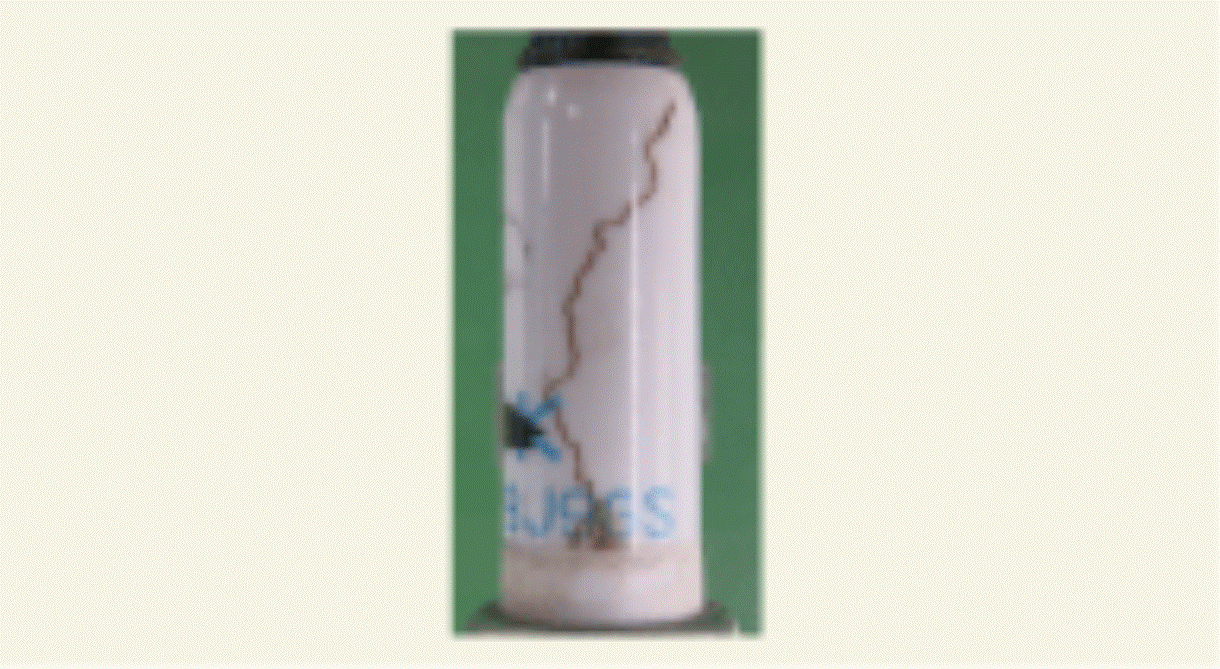

Courtesy of KIA MOTORS AMERICA, INC. Ring Crack	Abnormal Combustion, External Shock

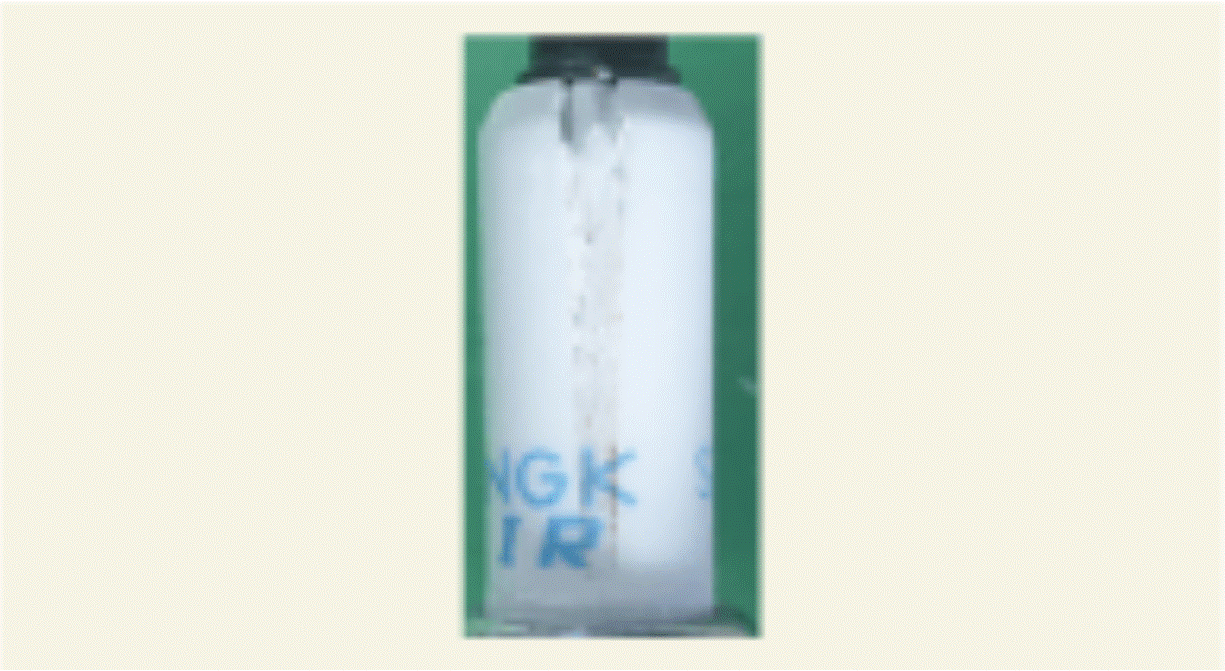

Courtesy of KIA MOTORS AMERICA, INC. Vertical Crack	External Shock

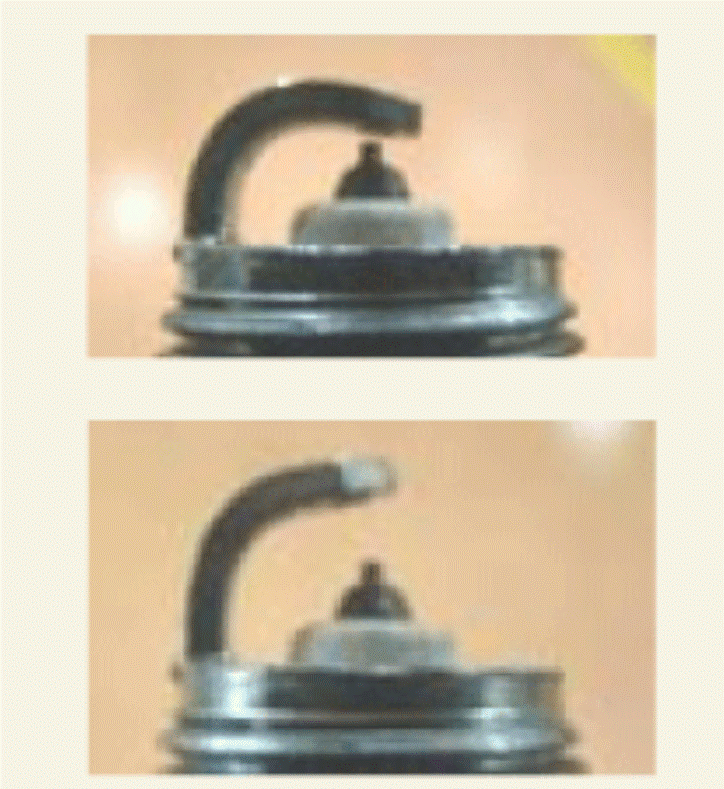

Courtesy of KIA MOTORS AMERICA, INC. Over Heat	Abnormal Combustion

Symptom	Suspected Area	Remedy

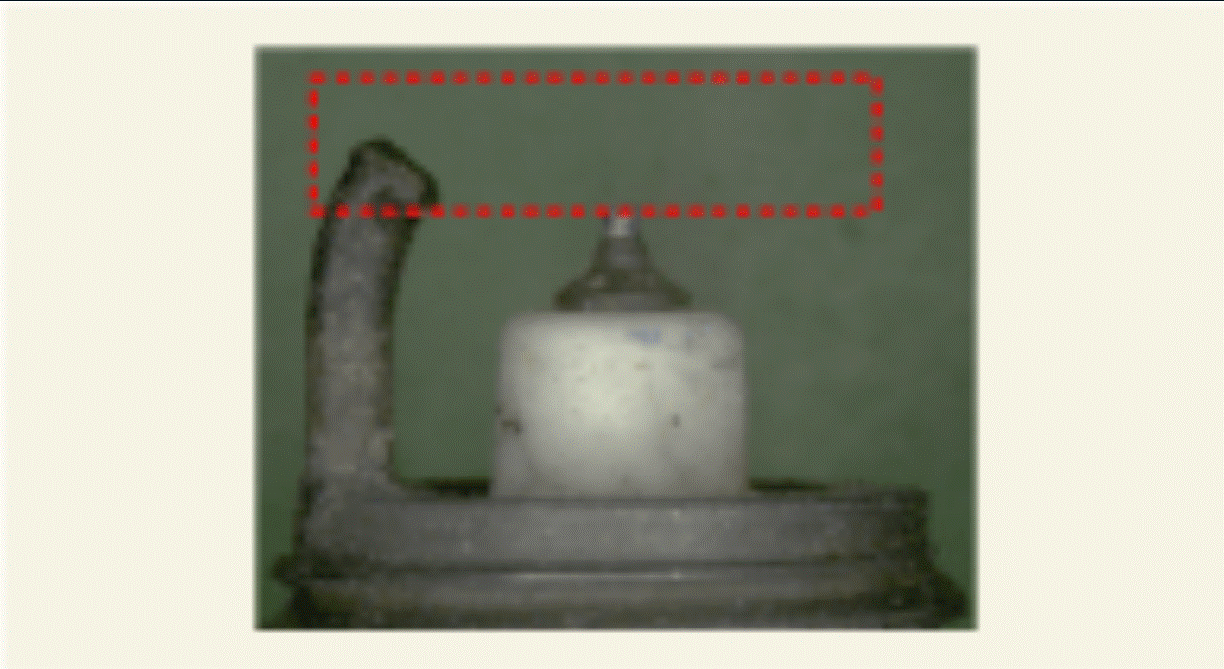

Courtesy of KIA MOTORS AMERICA, INC. Poor Gap	Careless	Replace the Spark Plugs
Courtesy of KIA MOTORS AMERICA, INC. Flash Over	Excessive Electrode Wear	Replace Spark Plugs, Ignition Coil

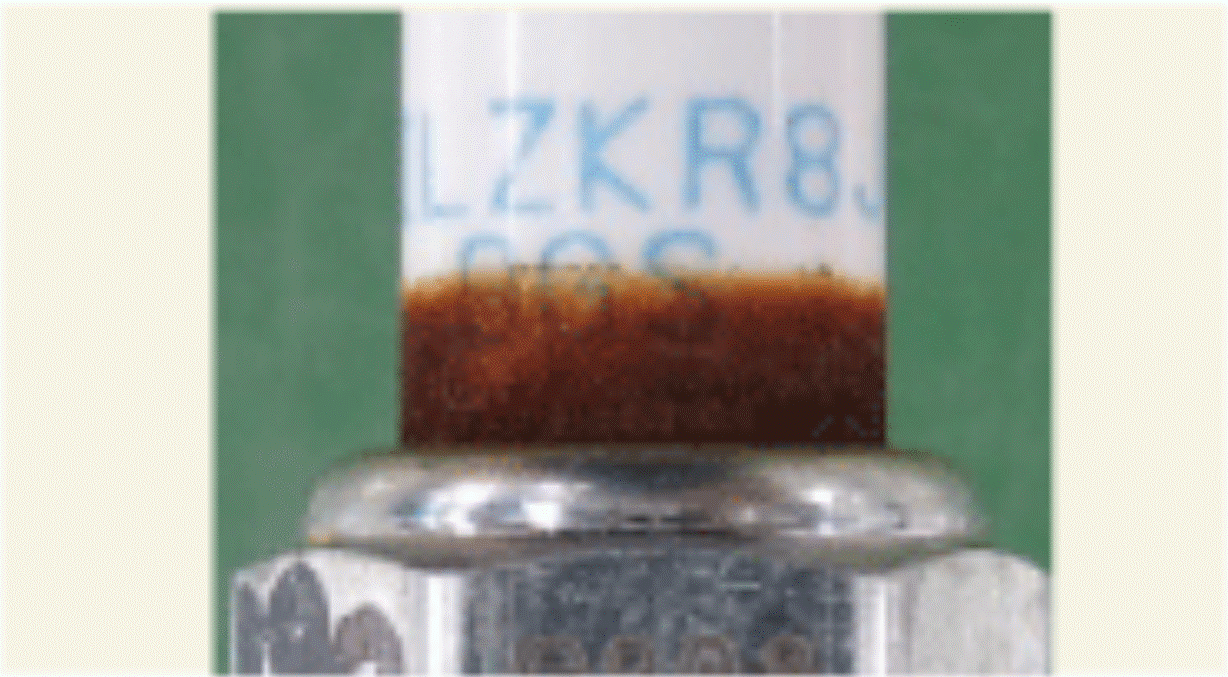

Courtesy of KIA MOTORS AMERICA, INC. Stain	Remaining Oil Mist	Reassemble the Spark Plugs

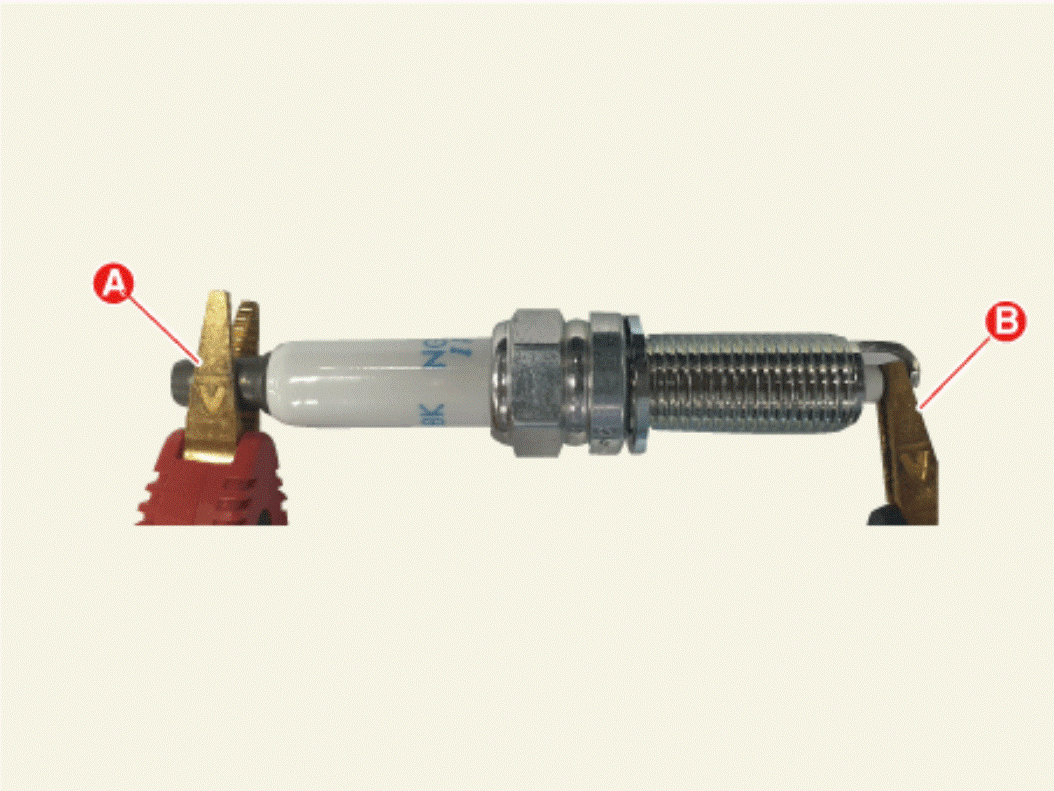

Specification:  2 - 20 KΩ

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

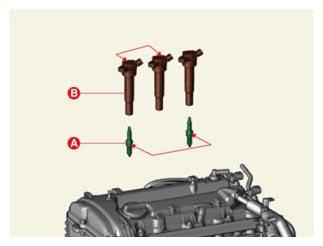

1. Remove the spark plug and ignition coil fitted to the misfired cylinder and exchange them with the one of other cylinders.

   (Refer to Spark Plug - "REMOVAL ")

   Courtesy of KIA MOTORS AMERICA, INC.

2. Replace the spark plugs, if misfire moves along the spark plugs.
