2023 Kia K5 GTFACTORY OEM SERVICE PROCEDURE

Repair Procedures: Installation

NOTE:

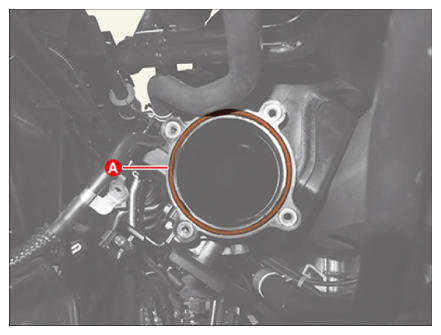

Check the seal ring (A) installation before installing the ETC module.

Courtesy of KIA MOTORS AMERICA, INC.

Install the component with the specified torque.
If ETC module is dropped, it may cause internal damage. Do not use it.

Install in the reverse order of removal.

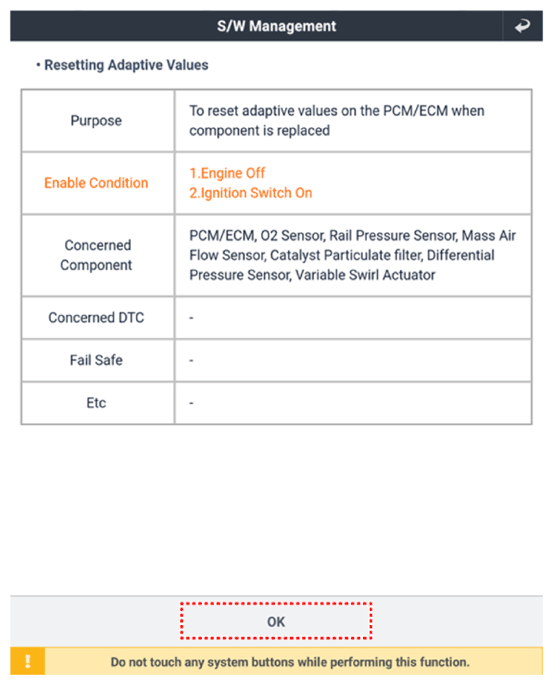

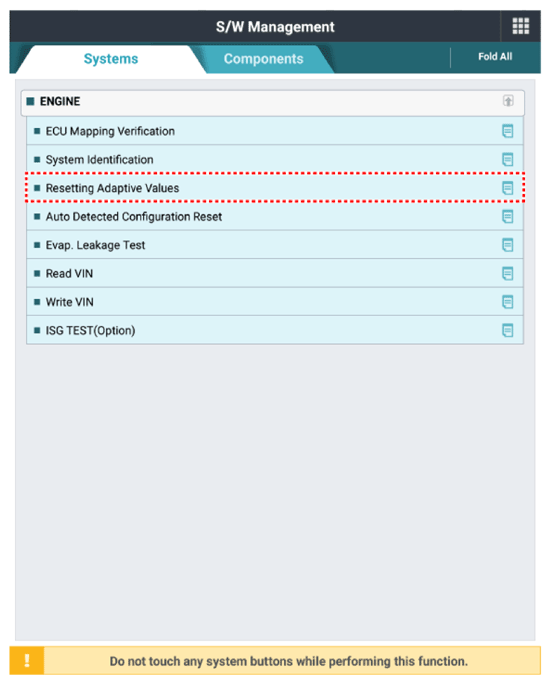

Reset the ECM adaptive values after replacing the ETC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
Perform the ETC learning procedure.
(Refer to " ADJUSTMENT ")
