Electrical Circuit Inspection Procedure

• Check Open Circuit

1. Procedures for Open Circuit
   • Continuity Check
   • Voltage Check

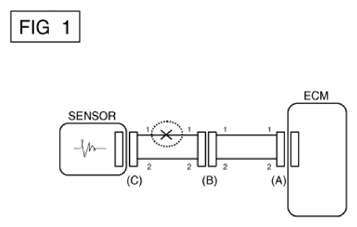

   If an open circuit occurs (as seen in [Figure below]), it can be found by performing Step 2 (Continuity Check Method) or Step  3 (Voltage Check Method) as shown below.

   Courtesy of KIA MOTORS AMERICA, INC.

2. Continuity Check Method
   NOTE:

   • When measuring the resistance, lightly shake the wire harness vertically or horizontally.

   Specification (Resistance)

   1Ω or less → Normal Circuit

   1MΩ or Higher → Open Circuit

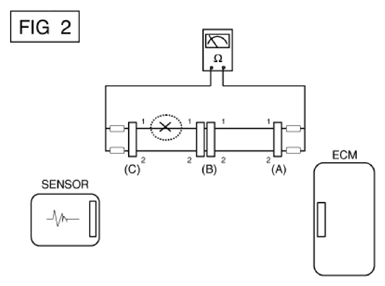

   1. Disconnect connectors (A) and (C) and measure resistance between connectors (A) and (C) as shown in [Figure below].

      In [Figure below], the measured resistance is higher than 1MΩ for line 1 and lower than 1Ω for line 2. Specifically, the open circuit is in line 1. (Line 2 is normal.) To find exact breaking point, check sub line of line 1 as described in the following step.

      Courtesy of KIA MOTORS AMERICA, INC.

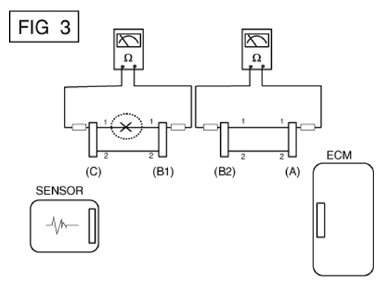

   2. Disconnect the connector (B), and measure the resistance between connectors (C) and (B1) and between (B2) and (A) as shown in [Figure below].

   In this case, the measured resistance between connectors (C) and (B1) is higher than 1MΩ and the open circuit is between terminal 1 of connector (C) and terminal 1 of connector (B1).

   Courtesy of KIA MOTORS AMERICA, INC.

3. Voltage Check Method

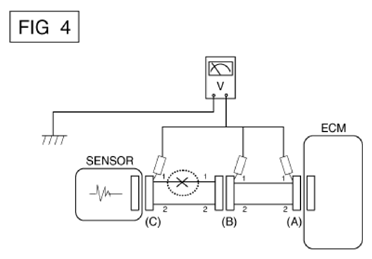

1. With each connector still connected, measure the voltage between the chassis ground and terminal 1 of each of connectors (A), (B) and (C) as shown in [Figure below].

The measured voltage of each connector is 5V, 5V and 0V respectively. So the open circuit is between connector (C) and (B).
