Check Short Circuit
- Test Method for Short to Ground Circuit
- Continuity Check with Chassis Ground

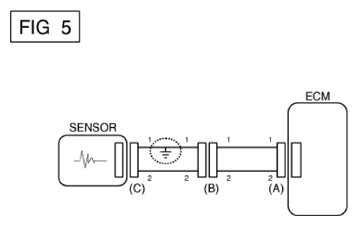

If short to ground circuit occurs as shown in [Figure below], the broken point can be found by performing Step 2 (Continuity Check Method with Chassis Ground) as shown below.
- Continuity Check Method (with Chassis Ground)
- Lightly shake the wire harness vertically or horizontally when measuring the resistance.
Specification (Resistance)Β
1Ξ© or less β Short to Ground Circuit
1MΞ© or Higher β Normal Circuit

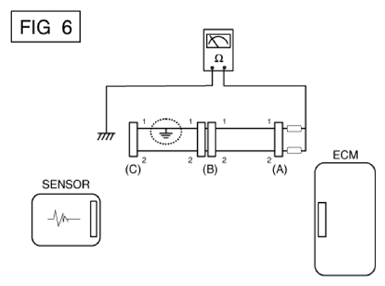

- Disconnect connectors (A) and (C) and measure the resistance between connector (A) and Chassis Ground as shown in [Figure below].
The measured resistance is below 1 Ξ© for line 1 and higher than 1 MΞ© for line 2. Specifically, the short to ground circuit is in line 1. (Line 2 is normal.) To find exact broken point, check the sub line of line 1 as described in the following step.

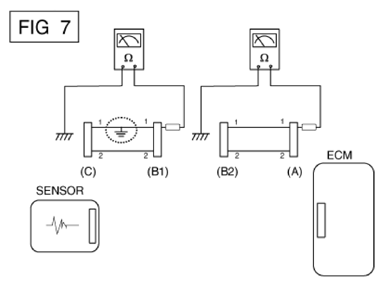

- Disconnect connector (B), and measure the resistance between connector (A) and chassis ground, and between (B1) and chassis ground as shown in [Figure below].
The measured resistance between connector (B1) and chassis ground is 1Ξ© or less. The short to ground circuit is between terminal 1 of connector (C) and terminal 1 of connector (B1).
