2022 Kia Soul TurboFACTORY OEM SERVICE PROCEDURE
Repair Procedures: Removal
- Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
- Remove the air cleaner assembly and air intake hose.
(Refer to Engine Mechanical System - "AIR CLEANER ")
- Remove the battery.
(Refer to Body Electrical System - "BATTERY ")

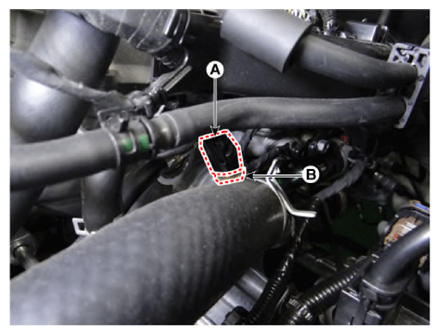

- Disconnect the engine coolant temperature sensor connector (A).
- Remove the engine coolant temperature sensor (B).
Engine Coolant Temperature Sensor:
29.4 - 39.2 N.m (3.0 - 4.0 kgf.m, 21.7 - 28.9 lb.ft)
CAUTION: Note that engine coolant may be flowed out from the water temperature control assembly when removing the sensor.
