2022 Kia Sorento Plug-In Hybrid SXFACTORY OEM SERVICE PROCEDURE

Repair Procedures: Installation

  1. Install in the reverse order of removal.
  2. Perform the TCM reset and learning procedure by using the KDS after replacing the TCM.

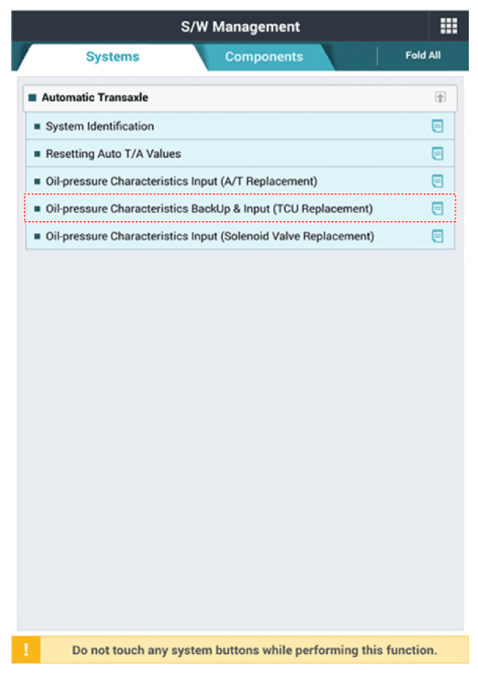

    1. Click the "Oil-pressure Characteristics Back-Up & Input (TCU Replacement)".
      G14957254Courtesy of KIA MOTORS AMERICA, INC.

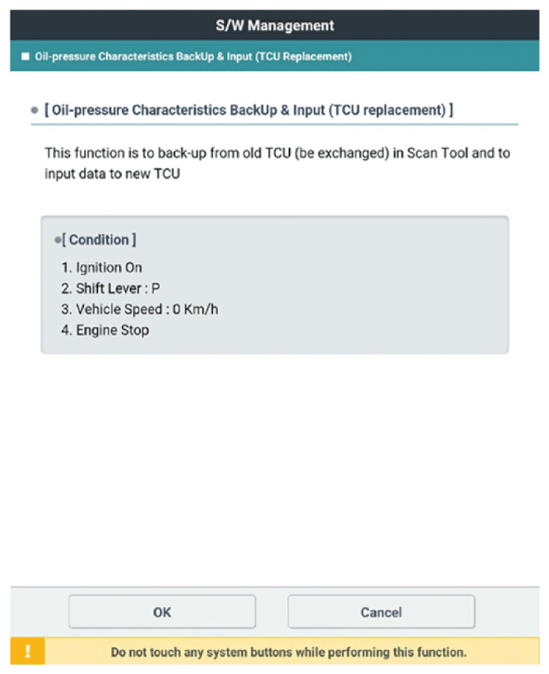

    2. Check the condition and then click the "OK".
      G14957255Courtesy of KIA MOTORS AMERICA, INC.

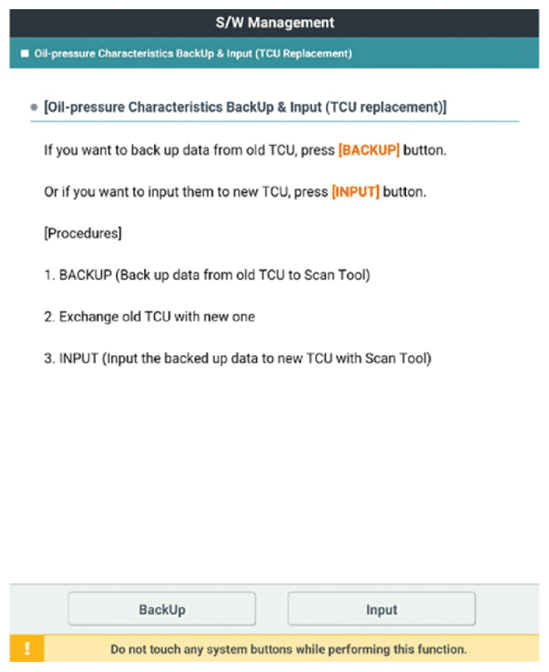

    3. Click the "Input".
      G14957256Courtesy of KIA MOTORS AMERICA, INC.

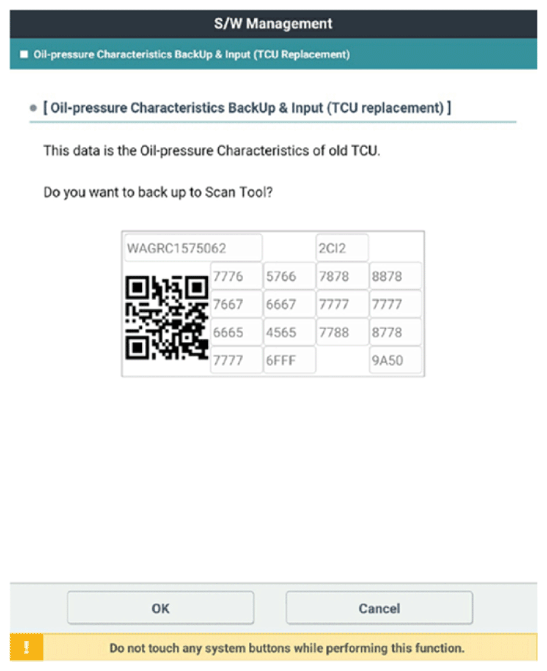

    4. Click the "OK".
      G14957257Courtesy of KIA MOTORS AMERICA, INC.
  3. Perform TCM learning procedure.

    (Refer to Automatic Transaxle System - "ADJUSTMENT ")
