2022 Kia Sorento Plug-In Hybrid SXFACTORY OEM SERVICE PROCEDURE
Repair Procedures: Removal
- Remove the front bumper assembly.
(Refer to Body - "FRONT BUMPER ASSEMBLY ")

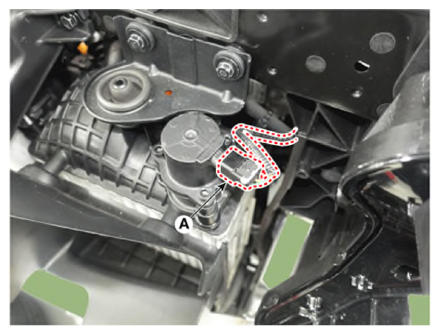

- Disconnect the Electronic Recirculation Control Valve (E-RCV) connector (A).

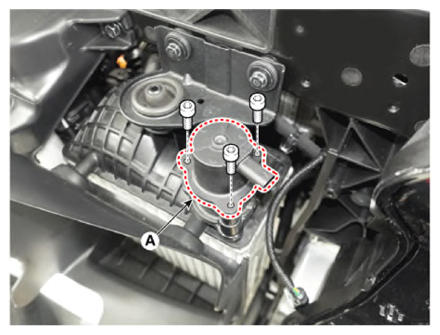

- Remove the E-RCV (A) after removing the mounting bolts.
Tightening torque:
9.8-11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)
