2022 Kia K5 EXFACTORY OEM SERVICE PROCEDURE

Spark Plug: Troubleshooting

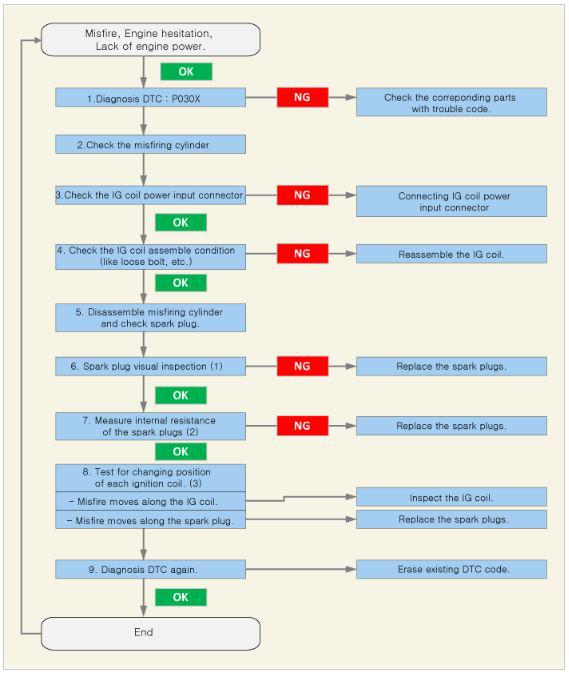

Check the DTC code using the KDS (Refer to "DTC guide").

Courtesy of KIA MOTORS AMERICA, INC.

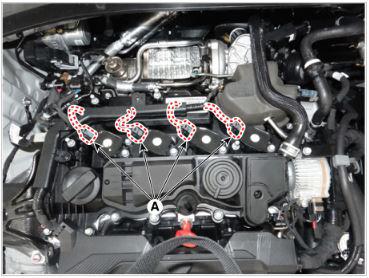

Check the connection status of the ignition coil connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

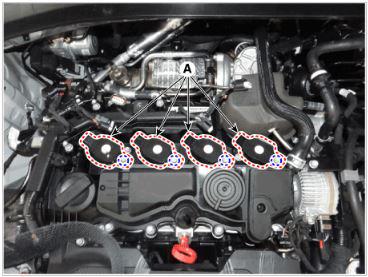

Check the installation condition of the ignition coil (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the spark plug
(Refer to Spark Plug - "Removal ")

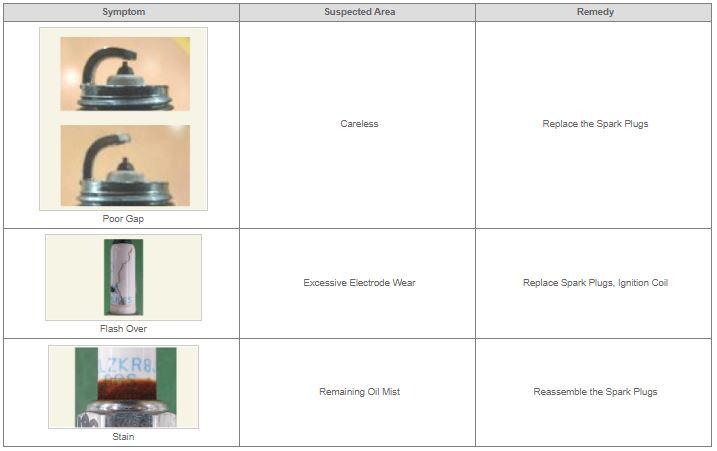

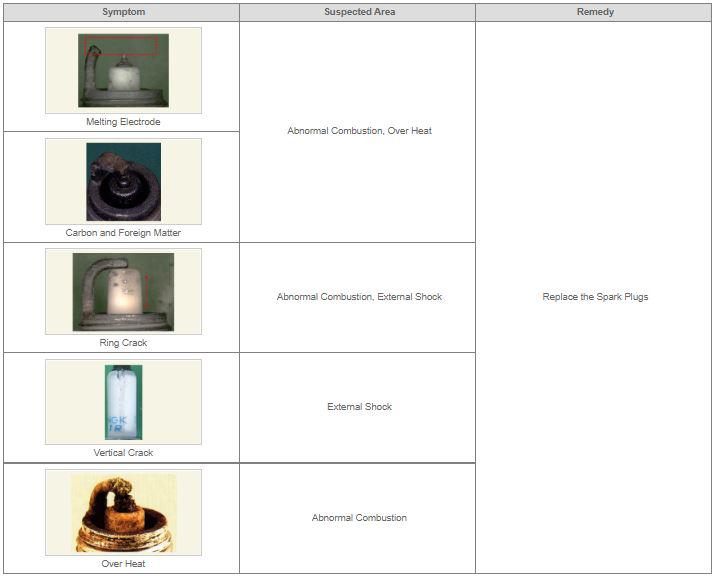

Visual inspection of the spark plugs.
Spark plugs point gap:

0.7 - 0.8 mm (0.0275 - 0.0314 in.)

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

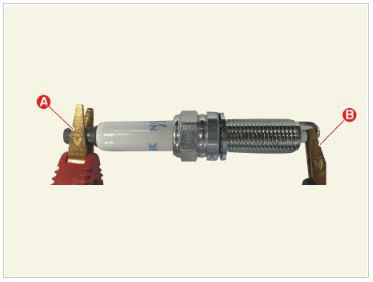

Check the resistance between the spark plug terminal (A) and probe (B)

Specifications: 2 - 20 kΩ

G00620896

Courtesy of KIA MOTORS AMERICA, INC.

NOTE:

Avoid the contact resistance between probe and spark plugs.(when it occur, measured value is not sabalized.)

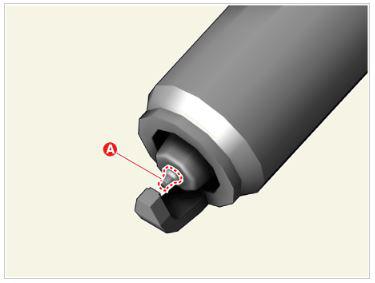

Be carefule not to damage center electrode while measuring resistance.

G00620897

Courtesy of KIA MOTORS AMERICA, INC.

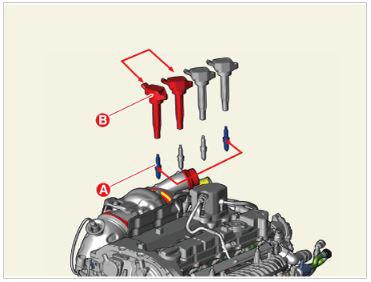

Test for changing position of each ignition coil.

Remove the spark plug and ignition coild fitted to the misfired cylinder and exchange them with one of other cylinders.

(Refer to Spark Plug - "Removal ")

G00620898

Courtesy of KIA MOTORS AMERICA, INC.

Replace the spark plugs, if misfire moves along the spark plugs.
