2022 Kia Forte GT LineFACTORY OEM SERVICE PROCEDURE

Repair Procedures: Disassembly

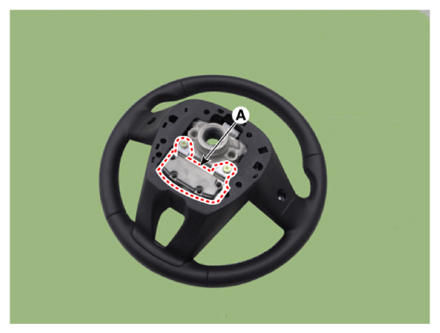

Loosen the screws and then remove the dynamic damper (A).

Courtesy of KIA MOTORS AMERICA, INC.

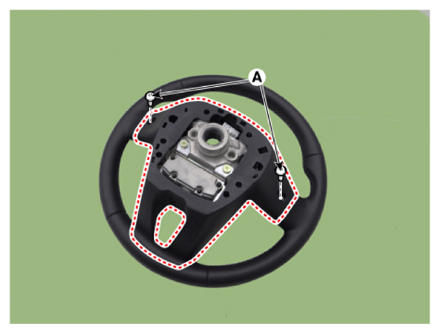

Loosen the screws (A) from the lower cover.

Courtesy of KIA MOTORS AMERICA, INC.

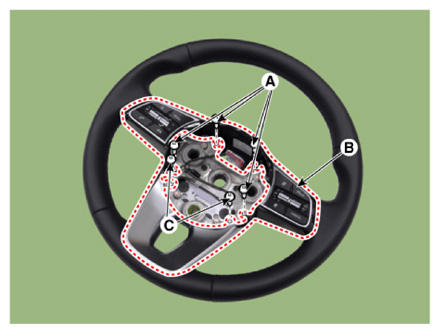

Loosen the screws (A) and then disconnect the remote control switch (B).
Loosen the screws (C) from the bezel.

Courtesy of KIA MOTORS AMERICA, INC.

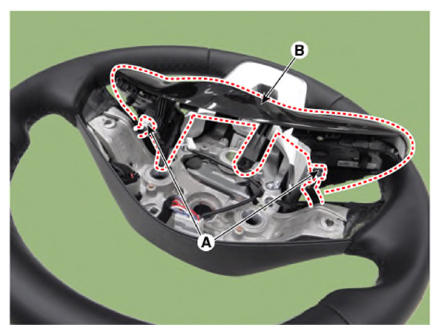

Disconnect the connectors (A) and then remove the remote control switch (B).

Courtesy of KIA MOTORS AMERICA, INC.

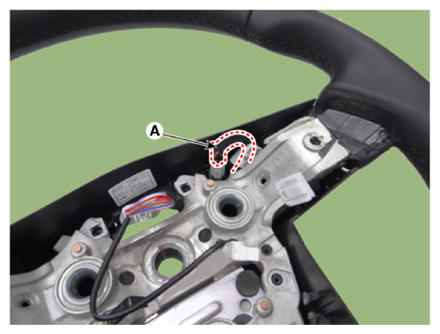

Disconnect the heated steering wheel connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

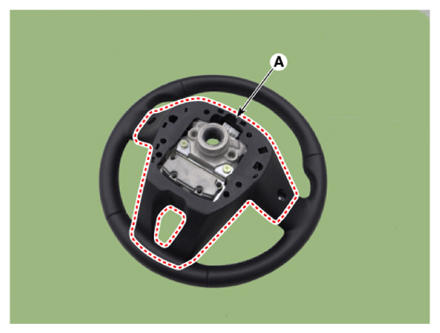

Remove the lower cover (A).

Courtesy of KIA MOTORS AMERICA, INC.

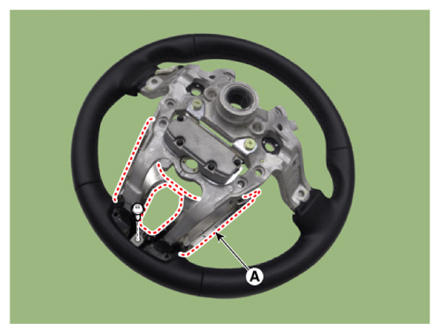

Loosen the screws and then remove the bezel (A).

Courtesy of KIA MOTORS AMERICA, INC.
Assemble in the reverse order of disassembly.
