2022 Kia EV6 First EditionFACTORY OEM SERVICE PROCEDURE
Component Inspection

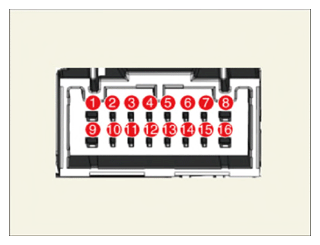

- Check for continuity between the terminals in each switch position as shown below.
| Switch | Switch position | Switch terminal | Resistance (Ξ©, Β±3.5%) |
|---|---|---|---|
| Front wiper switch | MIST | 6 - 4 | 330 |
| OFF | β | ||
| INT (AUTO) | 800 | ||
| LOW | 1, 800 | ||
| HIGH | 5, 700 | ||
| Wiper intermittent volume | Volume 1 | 3 - 4 | 330 |
| Volume 2 | 690 | ||
| Volume 3 | 1, 310 | ||
| Volume 4 | 2, 610 | ||
| Volume 5 | 7, 310 | ||
| Fog lamp switch | OFF | 12 - 4 | β |
| Rear | 2910 | ||
| Turn signal switch (Left) | OFF | 14 ~ 4 | β |
| Lane change | 910 | ||
| Full turn | 2, 910 | ||
| Turn signal switch (Right) | OFF | 15 - 4 | β |
| Lane change | 910 | ||
| Full turn | 2, 910 | ||
| Dimmer & Passing switch | OFF | 13 - 4 | β |
| Passing | 910 | ||
| Dimmer | 2, 910 | ||
| Light switch | OFF | 10 - 4 | 680 |
| AUTO | 1, 680 | ||
| Tail lamp | 5, 580 | ||
| Low beam | β |
