2022 Kia Carnival EXFACTORY OEM SERVICE PROCEDURE

Oil Temperature Sensor (E-Module): Removal

NOTE:
  • Automatic transaxle is composed of delicate components. Be careful not to cause any damage on the component when assembling and disassembling.
  • Maintain clean condition so that foreign substance does not get into the automatic transaxle.
  • Use a coated apron, latex gloves, and stainless tray to prevent foreign substance from getting into the transaxle.
  1. Remove the under cover.

    (Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

  2. Drain the engine coolant.

    (Refer to Engine Mechanical System - "COOLANT ")

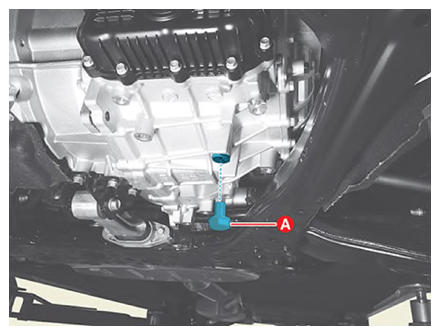

  3. Remove the ATF drain plug (A), allow the fluid to drain out and then reinstall the drain plug.

    Tightening torque:

    34.0 - 44.0 N.m (3.5 - 4.5 kgf.m, 25.3 - 32.5 lb.ft)

    G14797527Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:
    • Automatic transaxle fluid (ATF) can be reused. Collect it using a clean 10-liter beaker.
    • The existing ATF drain plug gasket must be replaced with a new one (do not reuse).
  4. Disconnect the battery negative (-) cable.
  5. Remove the air cleaner assembly.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

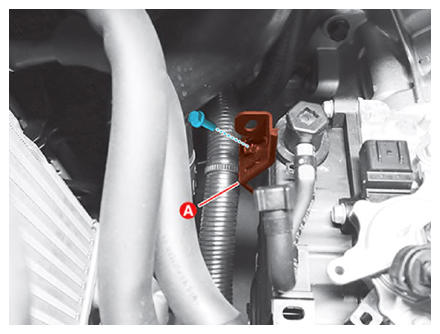

  6. Remove the wiring bracket (A) after removing the bolt.

    Tightening torque:

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

    G14797528Courtesy of KIA MOTORS AMERICA, INC.

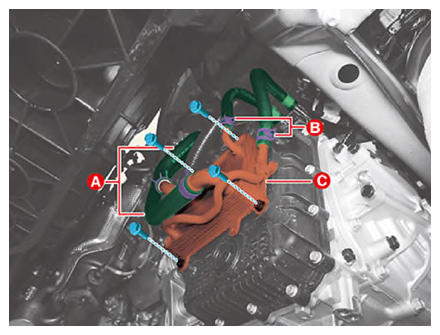

  7. Remove the ATF warmer (C) after separating the hose (A, B) and removing the bolts.

    Tightening torque

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

    G14797529Courtesy of KIA MOTORS AMERICA, INC.

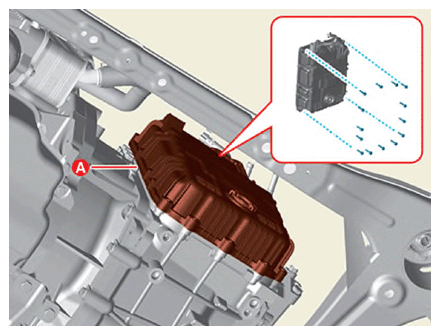

  8. Remove the valve body cover (A) after removing the bolts.

    Tightening torque:

    11.8 - 13.7 N.m (1.2 - 1.4 kgf.m, 8.7 - 10.1 lb.ft)

    G14797530Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:
    • Be careful not to spill the remaining ATF when removing the valve body cover.

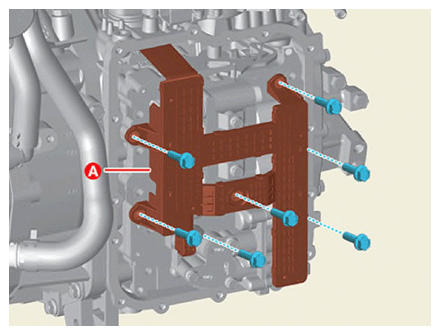

  9. Separate the E module (A) after removing the bolts.

    Tightening torque:

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

    G14797531Courtesy of KIA MOTORS AMERICA, INC.

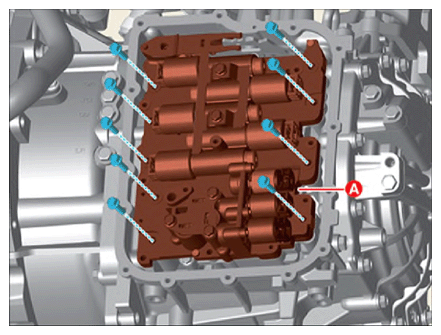

  10. Remove the valve body assembly (A) after removing the bolts.

    Tightening torque:

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

    G14797532Courtesy of KIA MOTORS AMERICA, INC.

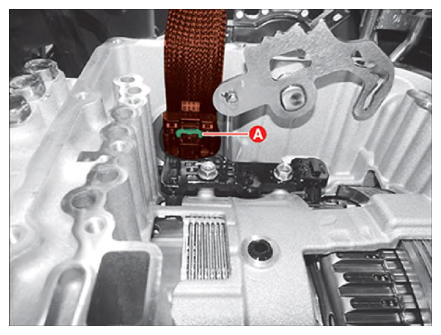

  11. Disconnect the speed sensor connector (A).
    G14797533Courtesy of KIA MOTORS AMERICA, INC.

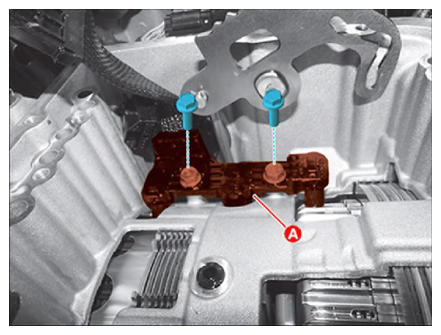

  12. Remove the speed sensor (A) after removing the bolts.

    Tightening torque:

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

    G14797534Courtesy of KIA MOTORS AMERICA, INC.

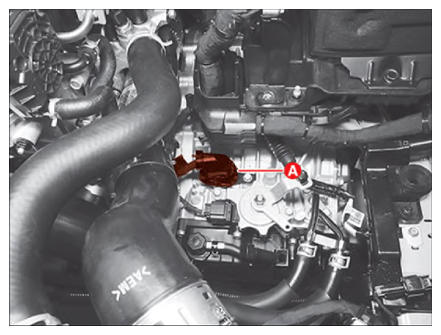

  13. Disconnect the main connector (A).
    G14797535Courtesy of KIA MOTORS AMERICA, INC.

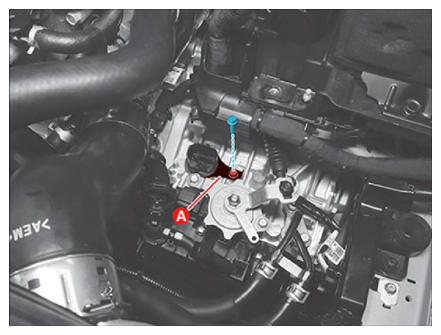

  14. Remove the main connector fixing clip (A) after removing the bolt.

    Tightening torque:

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

    G14797536Courtesy of KIA MOTORS AMERICA, INC.

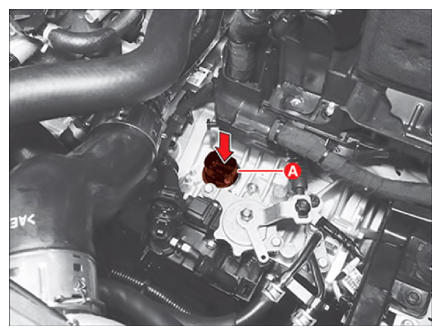

  15. Remove the main connector (A) by pushing it downward.
G14797537Courtesy of KIA MOTORS AMERICA, INC.
