2022 Kia Carnival EXFACTORY OEM SERVICE PROCEDURE
Component Inspection
- Disconnect the battery negative (-) terminal.
- Disconnect the HO2S connector.
- Measure resistance between the HO2S terminals.
Front:Β Pin 4 to Pin 5
Rear:Β Pin 3 to Pin 4

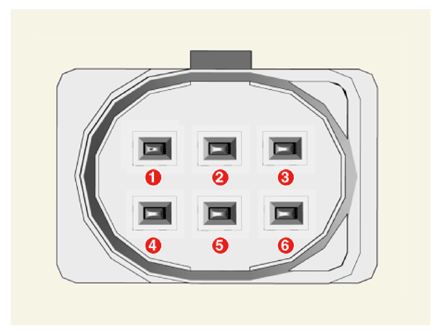

[Front]Β

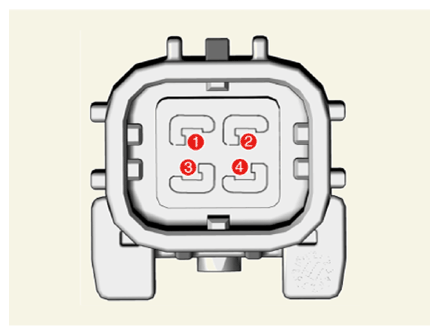

[Rear]Β
- Compare the measured resistance with the specification below.
Specification:Β
Front: 2.8 - 4.5 Ξ©
Rear: 5.4 - 6.6 Ξ©
