Engine Control Module (ECM): Adjustment

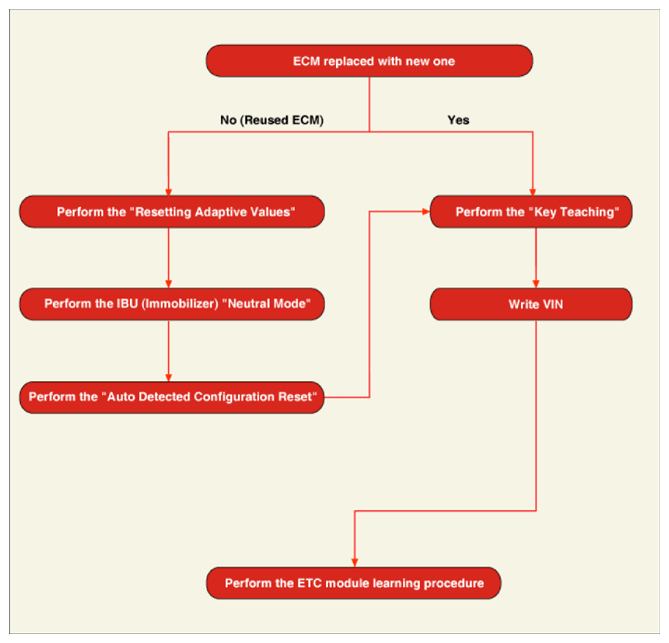

- Perform the procedures below by using the KDS when replacing the ECM with a reused one.

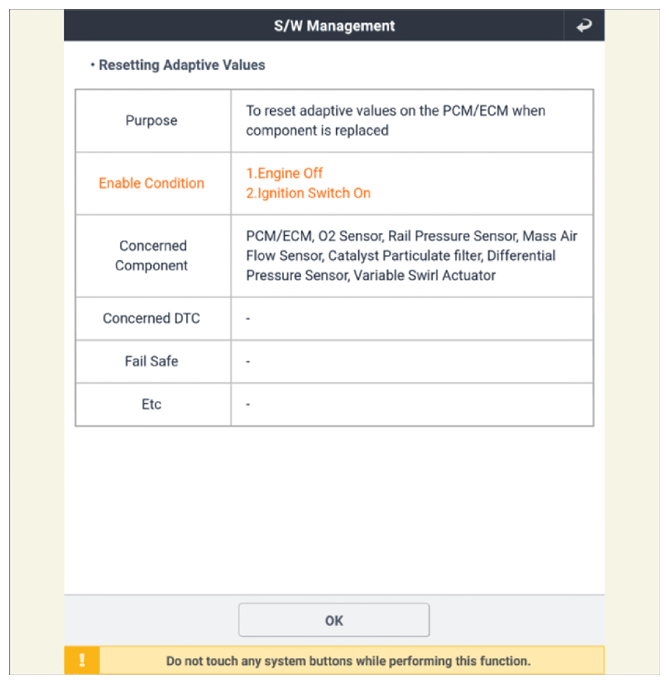

- Perform the resetting adaptive values.

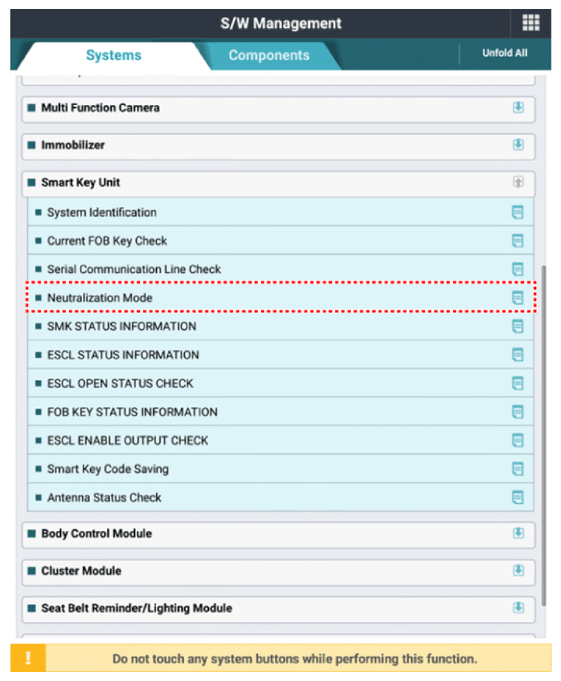

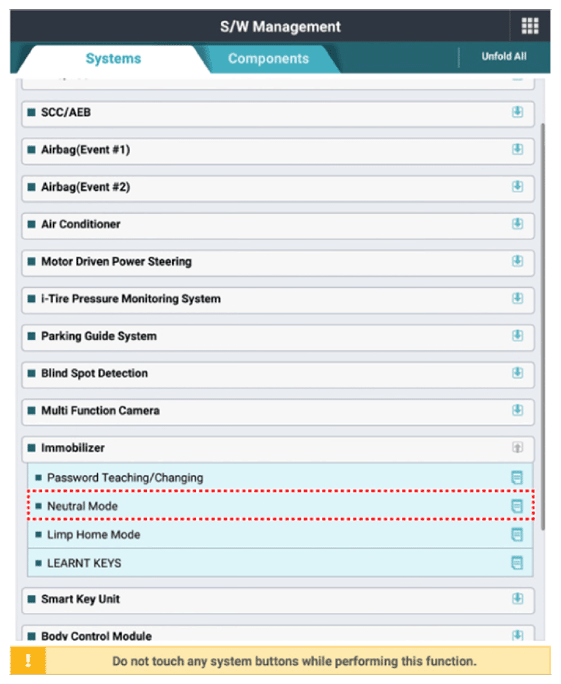

- Perform the immobilizer neutral mode/smart key neutralization mode.
[Non-Smart Key]
[Smart Key]

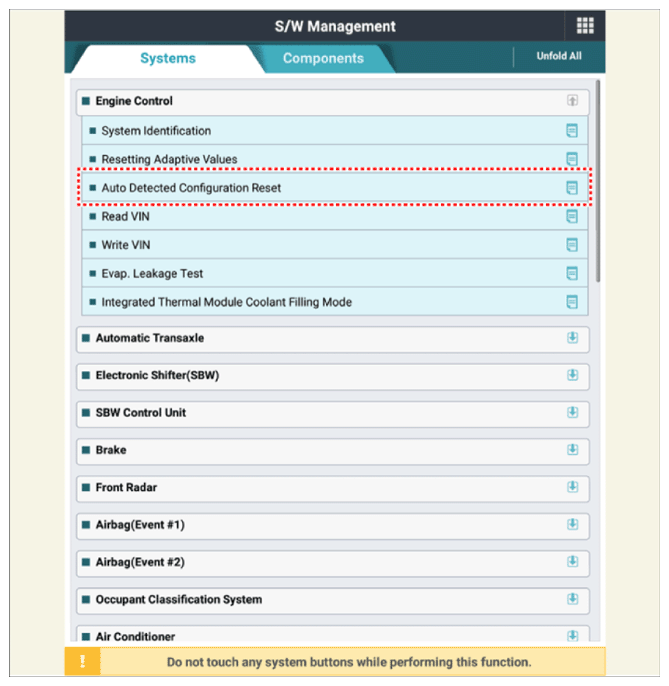

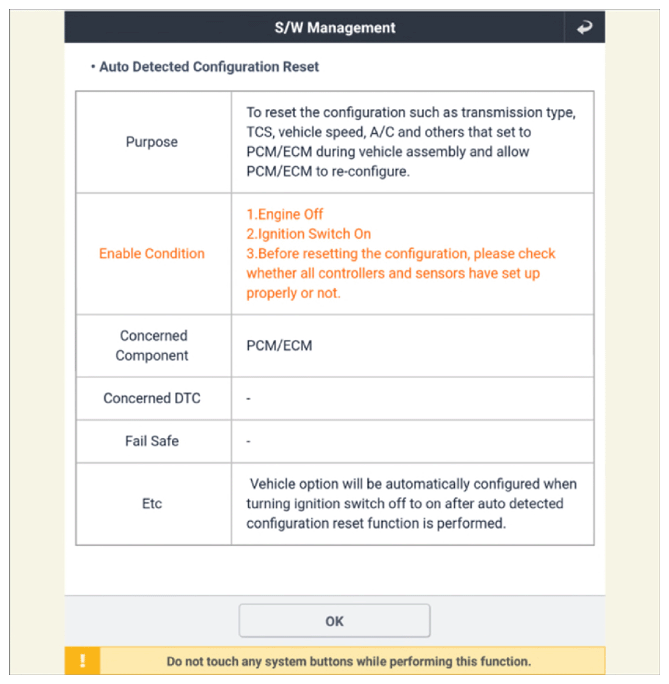

- Perform the auto detected configuration reset.
- Perform the resetting adaptive values.

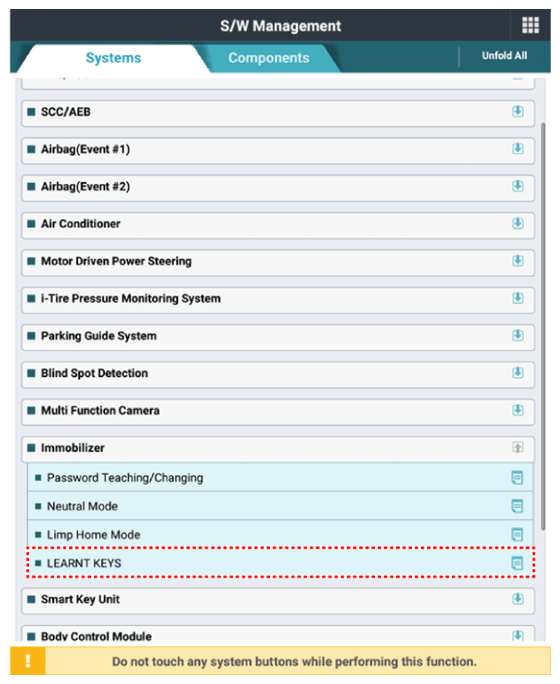

- Perform the
"Key Teaching" procedure by using the KDS.
[Non-Smart Key]
[Smart Key]
Turn IGN ON then OFF using the smart key or start button. Then the ECM learns information on the smart key automatically.

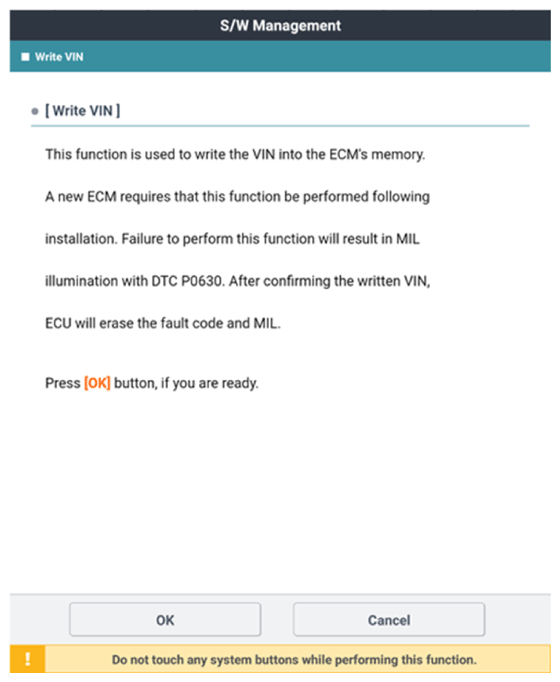

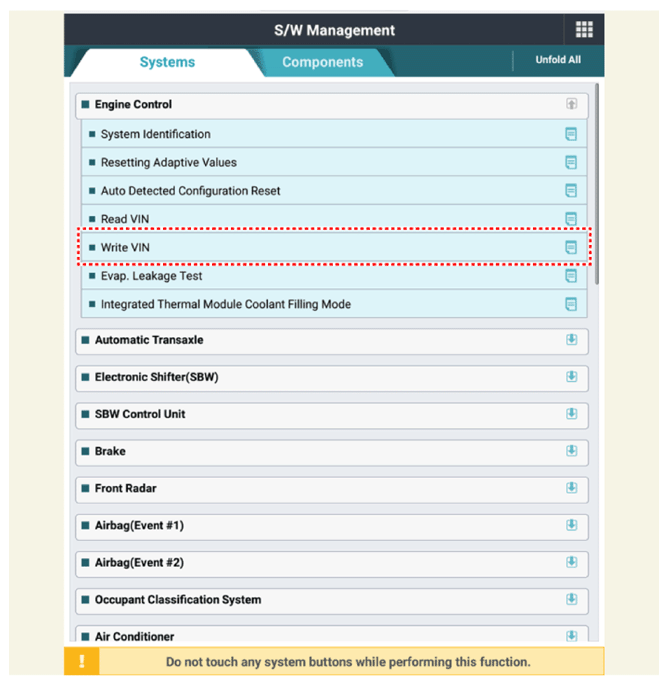

- Perform the VIN writing procedure by using the KDS.
- Perform the Electronic Throttle Control (ETC) module learning procedure.
(Refer to Electronic Throttle Control (ETC) Module - "ADJUSTMENT ")
