2022 Kia Carnival EXFACTORY OEM SERVICE PROCEDURE

Removal & Installation: Installation

NOTE:
  • Install the ETC module with the specified torque.
  • If the ETC module is dropped, it may cause internal damage. Do not use it.

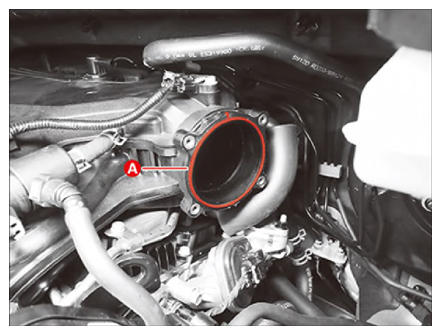

  • Check the seal ring (A) before installing the ETC module.
    G14797199Courtesy of KIA MOTORS AMERICA, INC.
  1. Install in the reverse order of removal.

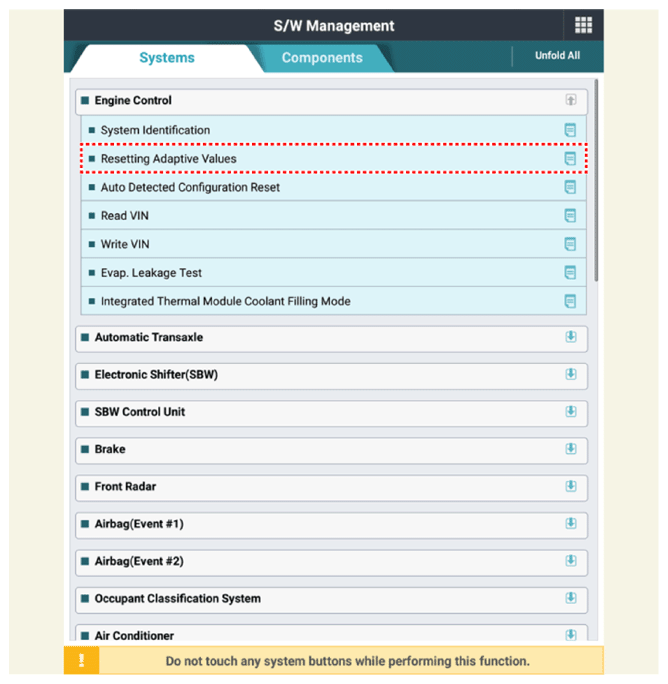

  2. Reset the ECM adaptive values after replacing the ETC.
    G14797200Courtesy of KIA MOTORS AMERICA, INC.
  3. Perform the ETC learning procedure.

    (Refer to Electronic Throttle Control (ETC) Module - "ADJUSTMENT ")
