Repair Procedures: Removal
- Perform the oil pressure characteristics backup procedure using the KDS when replacing with a new TCM.

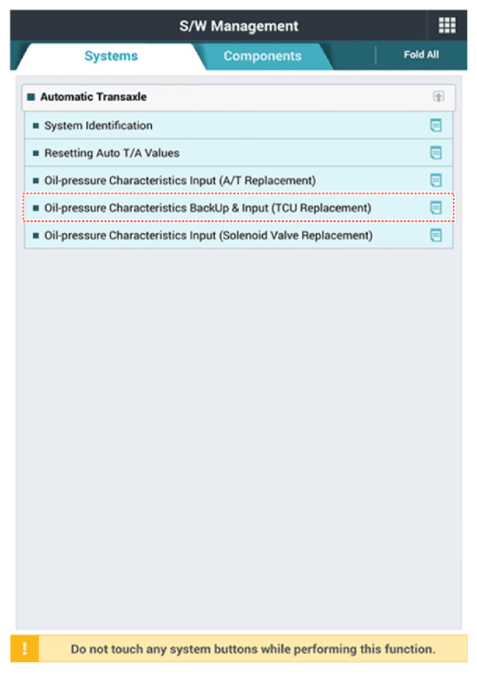

- Click the "Oil-pressure Characteristics BackUp & Input (TCU Replacement)".

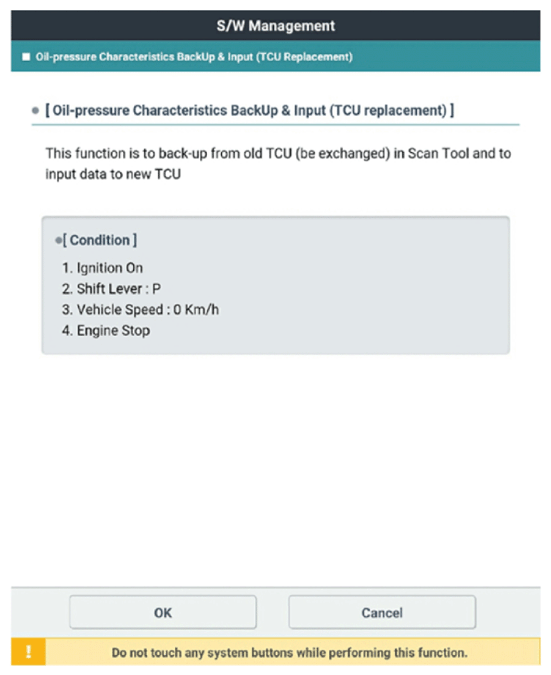

- Check the condition and then click the "OK".

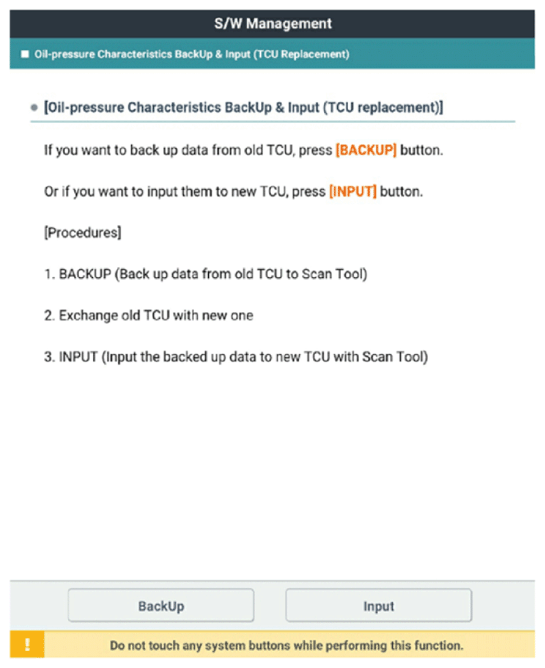

- Click the "BackUp".
- Click the "Oil-pressure Characteristics BackUp & Input (TCU Replacement)".
- Disconnect the battery negative terminal.
- Remove the integrated body control unit (IBU).
(Refer to Body Electrical System - "INTEGRATED BODY CONTROL UNIT (IBU) ")
- Remove the crash pad center panel.
(Refer to Body - "CRASH PAD CENTER PANEL ")

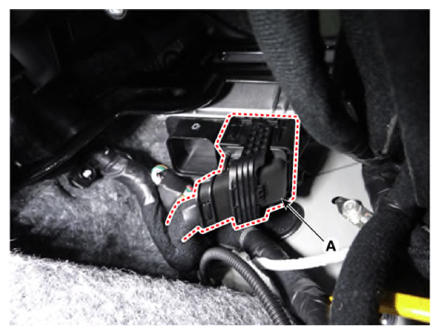

- Disconnect the TCM connector (A).

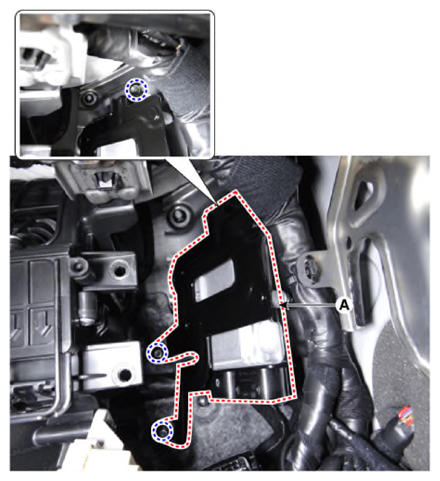

- Remove the TCM (A) after loosening the nuts and bolt.
Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)
