Repair Procedures: Removal
- Shift the gear to "N".
- Remove the battery.
(Refer to Body Electrical System - "BATTERY ")
- Remove the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")
- Remove the battery tray.
(Refer to Body Electrical System - "BATTERY ")

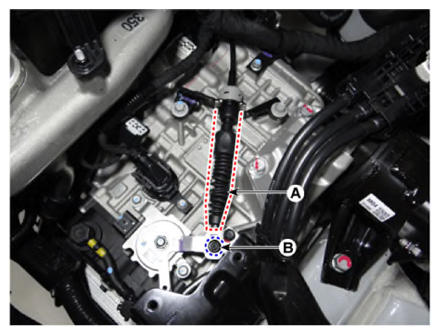

- Remove the shift cable (A) from the bracket after loosening a nut (B).
- Remove the floor console assembly.
(Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

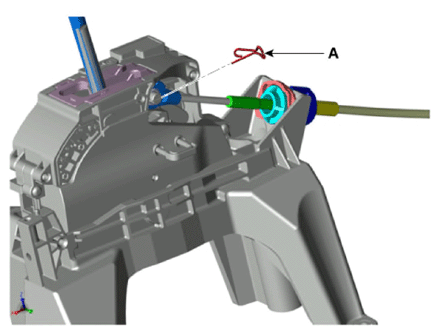

- Remove the shift cable from the shift lever pin after removing the snap pin (A).

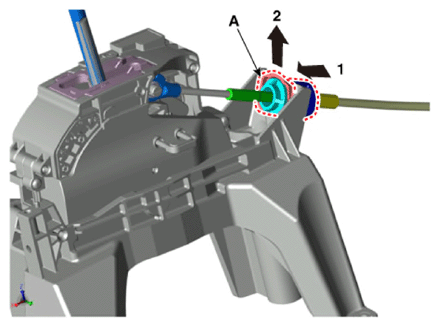

- Remove the cable socket (A) from the shift lever.

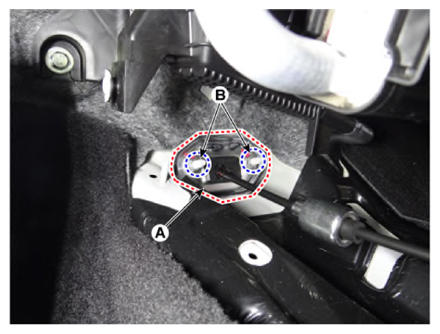

- Remove the shift cable retainer (A) after loosening the nuts (B).
Then, remove the shift cable by pulling it toward the vehicle interior.
