Repair Procedures: Removal
- Shift the gear to "N".
- Remove the battery.
(Refer to Body Electrical System - "BATTERY ")
- Remove the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")
- Remove the battery tray.
(Refer to Body Electrical System - "BATTERY ")

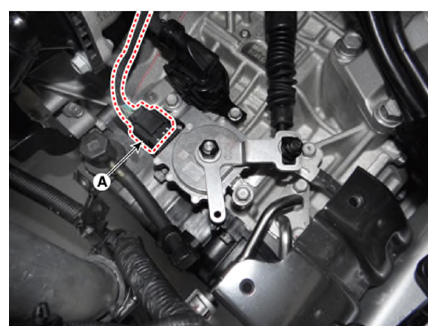

- Disconnect the position switch connector (A).

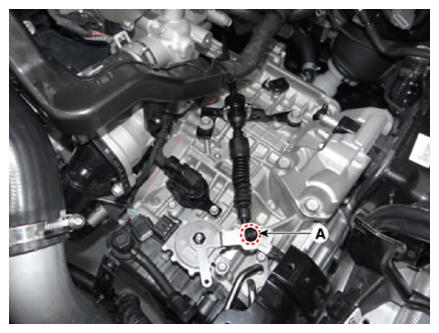

- Remove the shift cable after loosening the nut (A).

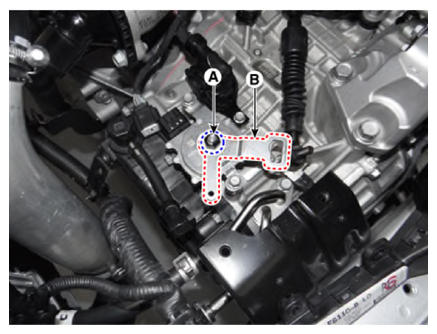

- Remove the manual control lever (B) and the washer after removing a nut (A).

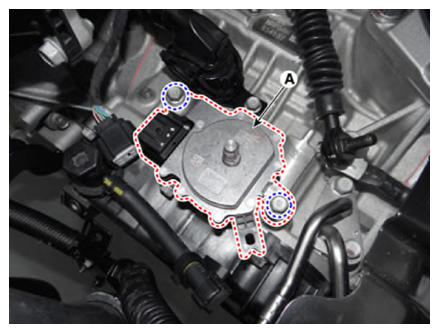

- Remove the position switch (A) after loosening the bolts.
