2021 Kia Telluride EX, FWDFACTORY OEM SERVICE PROCEDURE

Repair Procedures: Disassembly

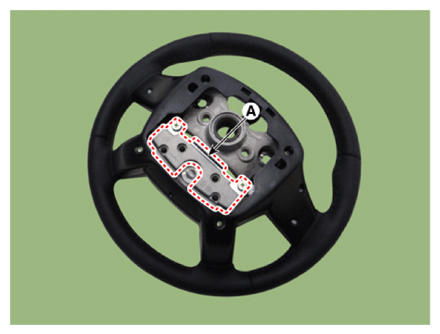

  1. Remove the dynamic damper (A).
    G13310978Courtesy of KIA MOTORS AMERICA, INC.

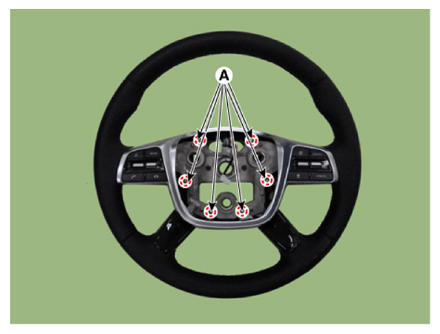

  2. Remove the lower cover mounting screws (A).
    G13310979Courtesy of KIA MOTORS AMERICA, INC.

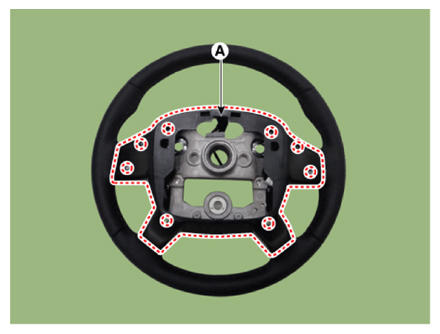

  3. Remove the lower cover (A) by loosing the screws (B).
    G13310980Courtesy of KIA MOTORS AMERICA, INC.

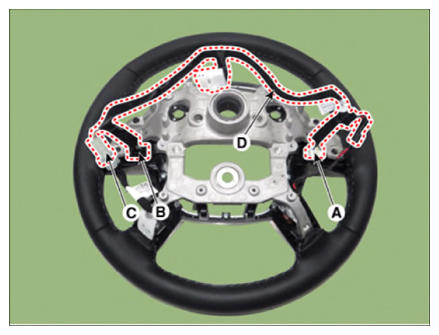

  4. Remove the steering wheel wiring.
    1. Disconnect the remote control switch connectors (A).
    2. Disconnect the heated steering wheel connector (B).
    3. Disconnect the haptic motor connector (C).
    4. Remove the steering wheel wiring (D).
    G13310981Courtesy of KIA MOTORS AMERICA, INC.

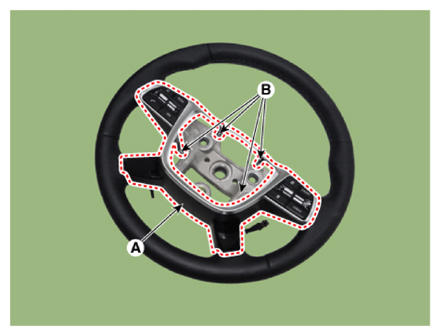

  5. Remove the remote control switch assembly (A) by loosing the screws (B).
    G13310982Courtesy of KIA MOTORS AMERICA, INC.

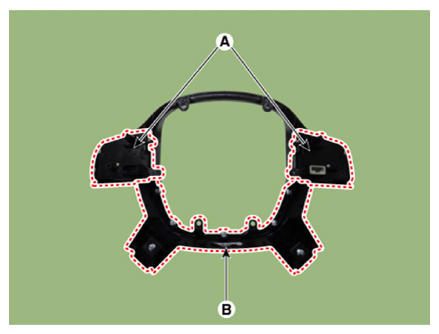

  6. Remove the remote control switch (A) and bezel (B).
    G13310983Courtesy of KIA MOTORS AMERICA, INC.

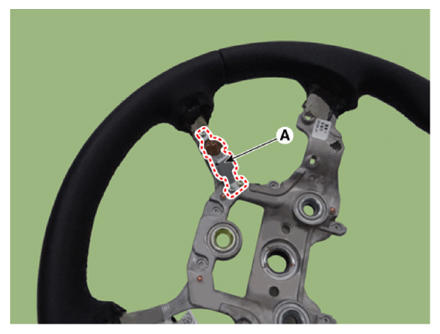

  7. Remove the haptic motor (A).
    G13310984Courtesy of KIA MOTORS AMERICA, INC.
  8. Assemble in the reverse order of disassembly.
